WITTUR MIDI - 2 Electronic Assembly Layout; D823 Mgb.004

Door Drive
MIDI / SUPRA
Operating instructions
Blatt/ sheet D823MGB.004
Datum/
date 01.03.2004
Stand/
version 01.03.2004
Geprüft/
approved WAT/MZE
EXCELLENCE IN COMPONENTS
Änderungen vorbehalten! Subject to change without notice!

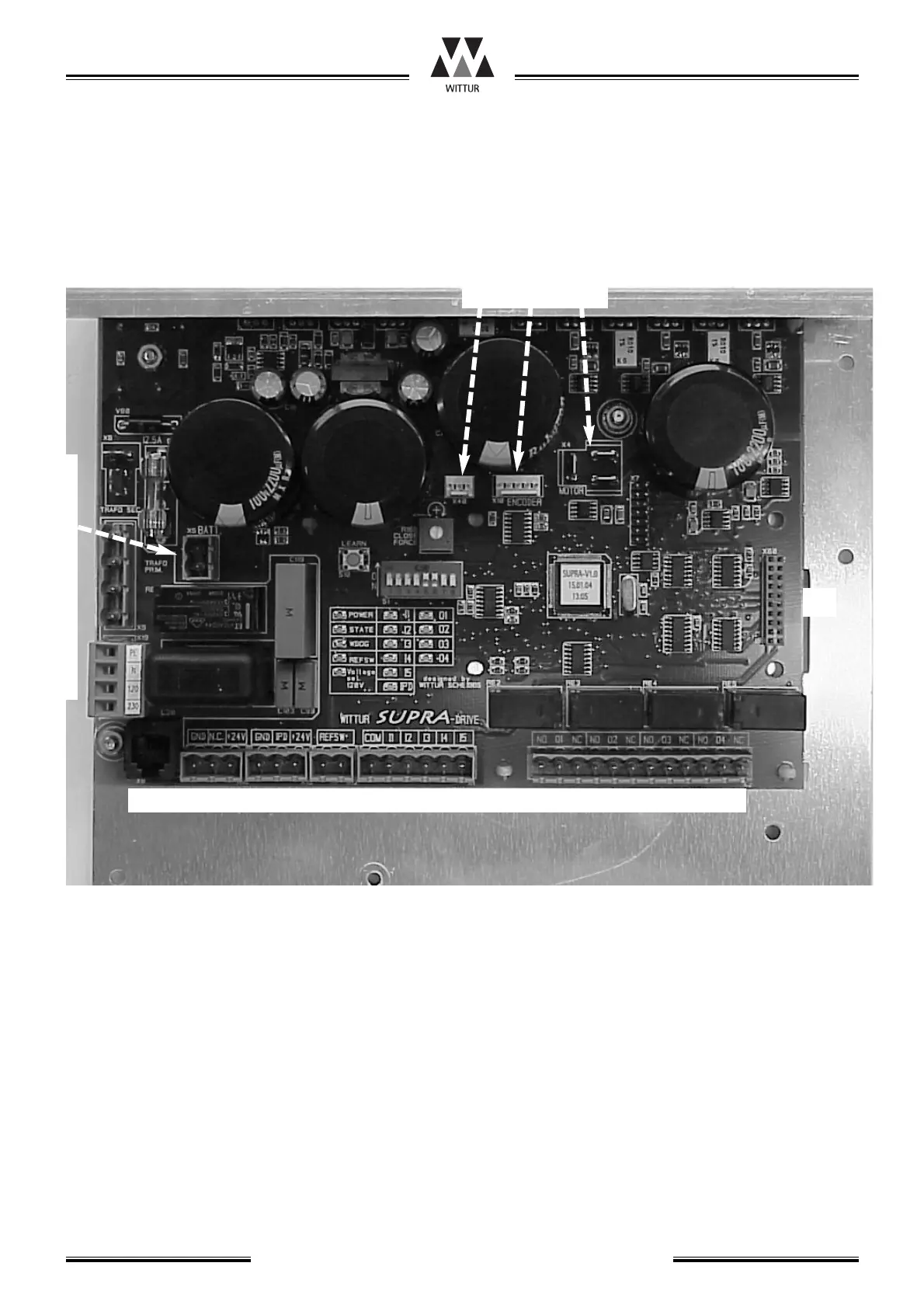

2 Electronic assembly layout
Plug description:
X1 - Inputs
X2 - Outputs
X4 - Motor
X5 - Battery supply (option)
X6 - Transformer secondary winding
X8 - RS485 interface for WPT (Wittur
Programming Tool)
X9 - Transformer primary winding
X10 - Encoder
X12 - Reference switch
X15 - Photo Cell (Curtain of light) Receiver
X16 - Photo Cell (Curtain of light) Transmitter
X19 - Board line-in connector
X40 - Test drive buttons
X60 - Extension plug
X8 X16 X15 X12 X1 X2
X40 X10 X4
X60
X6
X5
X9
X19
