5.1 LED’s Inputs
5.2 LED’s Outputs
5.3 Different LED’s
Door Drive
MIDI / SUPRA
Operating instructions
Blatt/
sheet
D823MGB.008
Datum/
date
01.03.2004
Stand/
version
C-23.07.2009
Geprüft/
approved
WAT/MZE
EXCELLENCE IN COMPONENTS
Änderungen vorbehalten! Subject to change without notice!

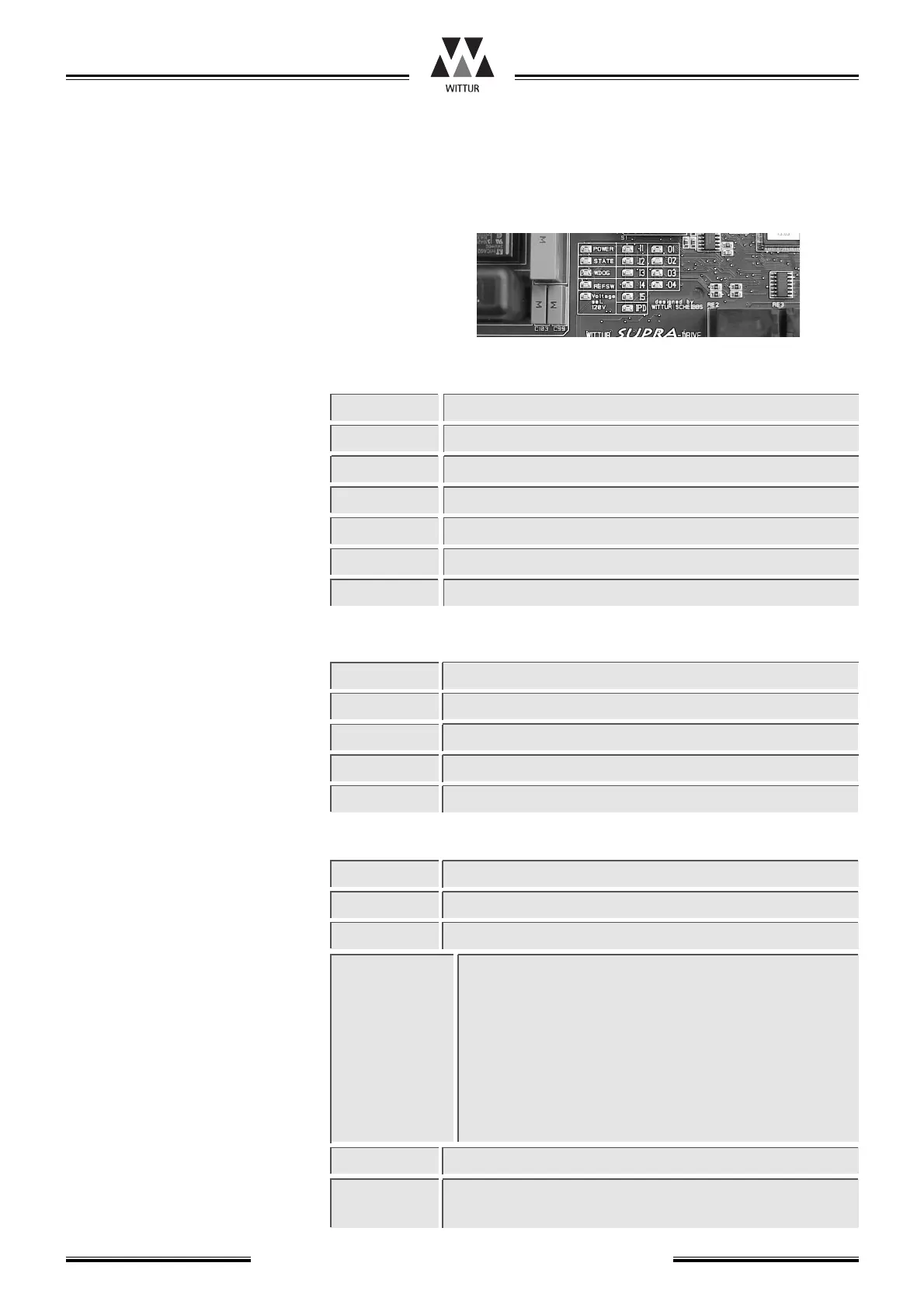

5 Description of LED´s
Name
O1
LED illuminated if
Output 1 relay is operated
O2 Output 2 relay is operated
O3 Output 3 relay is operated
O4 Output 4 relay is operated
Name
POWER
WDOG
LED illuminated if
the power supply is switched on
the microcontroller does not work
REFSW the door is in close end switch area
Name
I1
LED leuchtet wenn
Input 1 is connected to COM
I2 Input 2 is connected to COM
I3 Input 3 is connected to COM
I4 Input 4 is connected to COM
I5 Input 5 is connected to COM
IPD Input Passenger-Protection Device (Photo cell, ...)
VOLTAGE SEL.
120VAC
120VAC supply voltage selected
STATE Light: during start up and learning
Flashes: if a error is detected
1x Motor / encoder fault
3x internal fault
4x abnormal operation
5x learning error
Details see page 14, item 8.3
Off: normal operation
