Door Drive
MIDI / SUPRA
Operating instructions
Blatt/
sheet
D823MGB.031
Datum/
date
01.03.2004
Stand/
version
C-15.04.2009
Geprüft/
approved
WAT/FLE
EXCELLENCE IN COMPONENTS
Änderungen vorbehalten! Subject to change without notice!

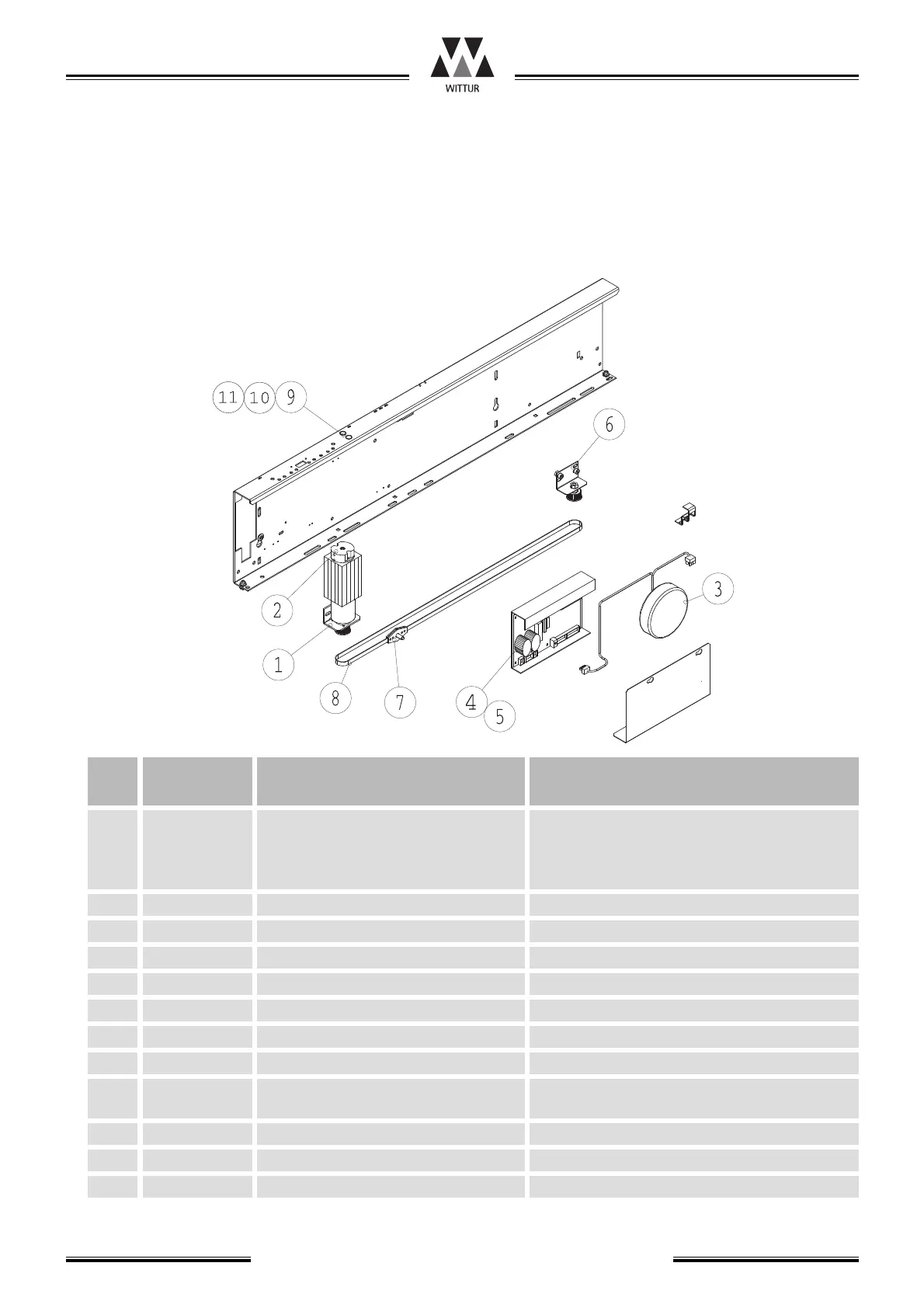

14.2 Side opening
Pos. Part number
1 903375 G03
903375 G04
601370 G03
601370 G04
Description Remarks
Motor unit, left opening, MIDI
Motor unit, right opening, MIDI
Motor unit, left opening, SUPRA
Motor unit, right opening, SUPRA
602748G0x in use till 07/2009
903375G0x in use from 08/2009
3 601805 G01 Transformer
2 Encoder Included in pos. 1
4 901160 G01 Electronic box including plugs
901909 G01 Spare plug set X1, X2, X5, X12, X15, X16, X19, D2
5 601812 G01 Magnet switch Hamlin, magnet 256825. Available separately
7 601345 G01 Belt fixing
8 601278 H03
601278 H04
Belt
Belt
Toothed belt, L=3900 AMDC0,2,4 LL<=1500
Toothed belt, L=5450 AMDC4 LL<=2100
6 601275 G01 Diverting pulley set
9 601800 G02 Test drive buttons
Diverting belt pulley
10 601473 H01 Button cover “close”
11 601473 H02 Button cover “open”
