WiXHC MK3-V User Manual

6.MACH3 Software parameters
6.1 Motor tuning

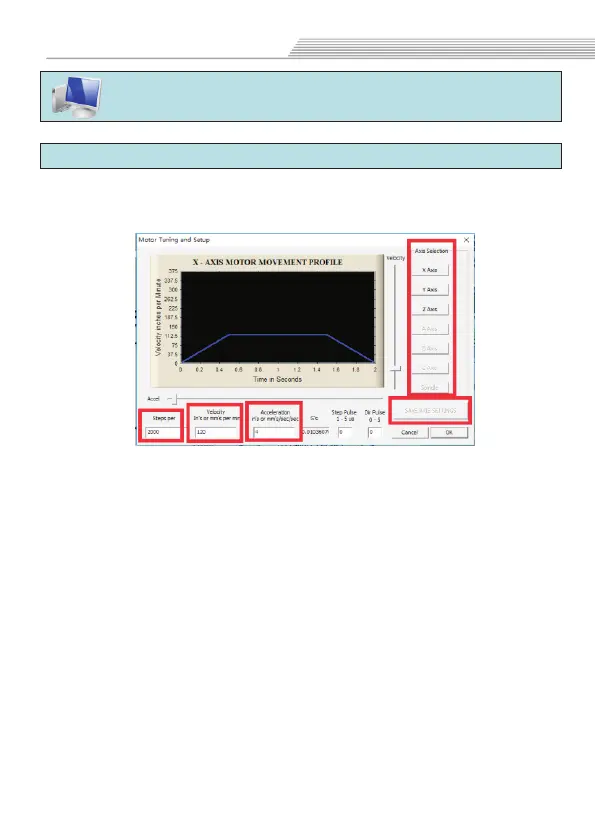

Open Mach3 software，select "Config">>“Motor tuning”
option，
1. For correct axis scaling you must know how
many steps falls on a unit (millimeter, inch or degree). To
understand how to calculate it,
2. In “Velocity” area, we set an axis speed. If we
are using millimeters as an unit then speed is shown in mm/min,
if we use degrees - degree/min, if inch - inch/min. Max. speed
value is very individual and depends on what motors, drives etc.
were used. For the first tests, we recommend to enter relatively
small value e.g. 4000mm/min, in case something went wrong.
3. we define acceleration for an axis. At the
beginning, we recommend to enter something about 200mm/s2.
Steps per:
Veocity:
Acceleration:
Basic parameters
In the window, first select an axis you want to configure,
next enter parameters and click „SAVE AXIS SETTINGS”. Now
you can select and set the next axis. If we forget to click on „
SAVE AXIS SETTINGS” all the changes will not be saved.
