4 VoIPNetworkServicesGmbH,Justus‐von‐Liebig‐Str.26,31535Neustadt
3.1.1 URL format

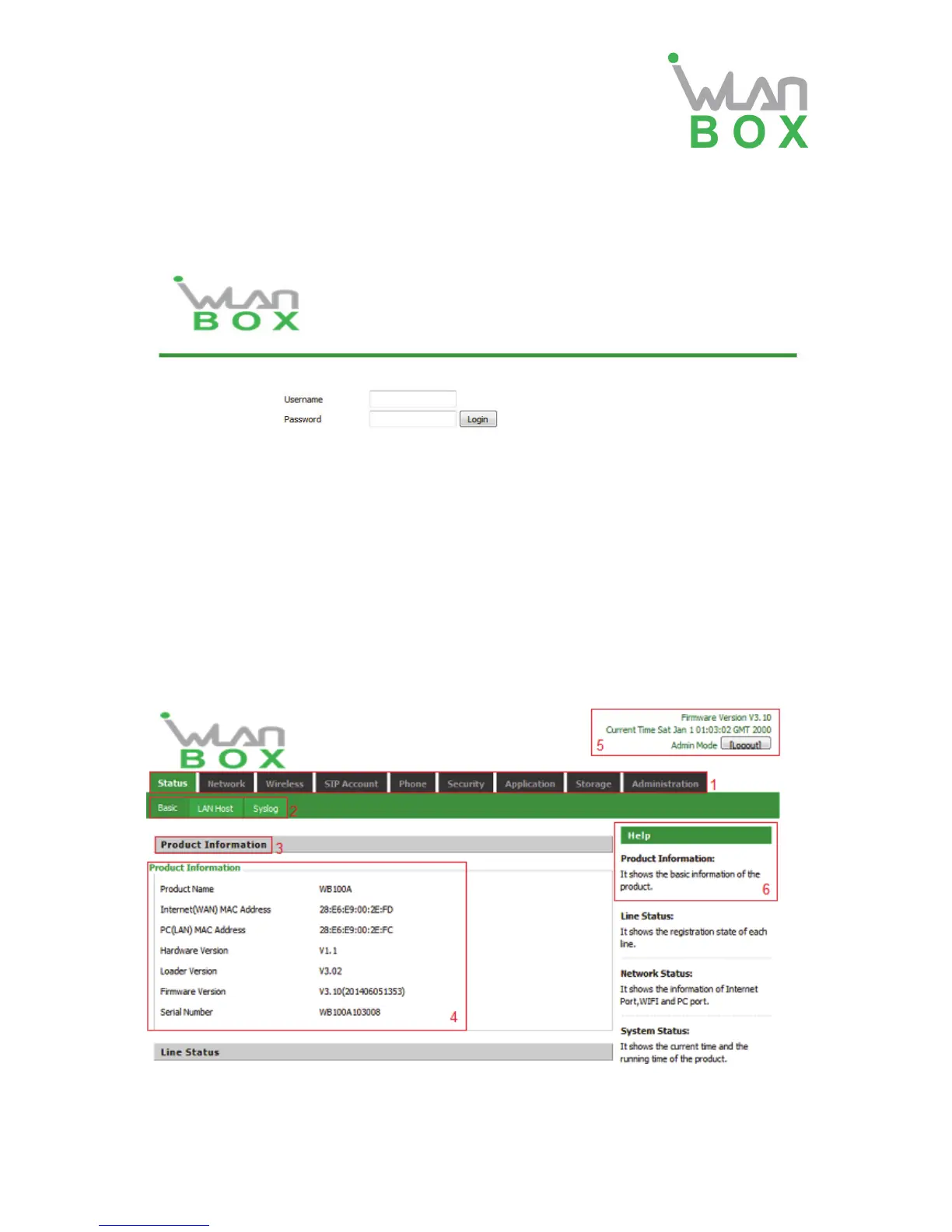

User can login from device’s LAN ports, the default IP address of device’s LAN port is
192.168.1.1. After entering the default IP address the page will go to the device's login page, as
shown below:
3.1.2 About Passwords
WB100A has two login levels, namely administrator level and general user level, different
standards have different passwords.
General level user can browse and configure some parameters; and administrator level user can
configure all other parameters.
WB100A’s default administrator level username and password: admin/admin
WB100A’s default general user login username and password: user/user
3.2 WEB Page
Number Name Description
1 Navigation bar Click navigation bar, many sub-navigation bar will
appear in the place 2.
