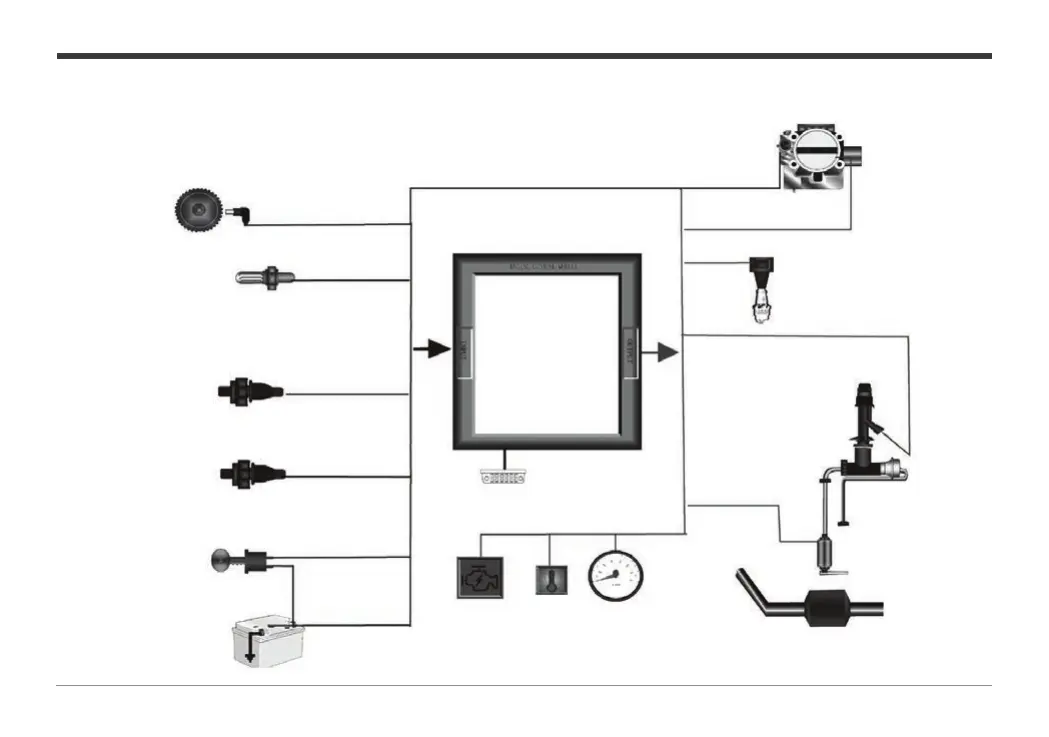

Structural schematic diagram of EFI system
M3.5


Crankshaft
Position Sensor
24X Position
Target Wheel of
Crankshaft
Heated Exhaust Gas
Oxygen Sensor
Engine
Temperature
Sensor
Inlet Temperature/
Pressure Sensor
Ignition Switch
Battery
Fault
Indicator
Catalytic Converter
Throttle Position Sensor
Serial Communication
Interface of Fault
Diagnosis Switch
Fuel
Pump
WCPR Fuel
Pressure
Regulator
Ignition Coil
Throttle
Idle Control Valve
Engine Control
Module
High
Temperature
Indicator
Rotate
Speed

