Flue system component
60/100
Flue system component
80/125
min. 552 mm
Securing the appliance, suspension bracket /
uegassystem
When installing the appliance, ensure that the
xings have sufcient load-bearing capacity. Also
take into account the condition of the wall, to
prevent gas or water from escaping, resulting in a
risk of explosion and ooding.
1. Mark the Ø12 holes to be drilled for the suspension bracket,
taking into account the minimum clearances.
2. Insert the rawl plugs and t the suspension bracket using
the screws supplied.
3. Hook the boiler onto the suspension bracket using the
mounting stay.

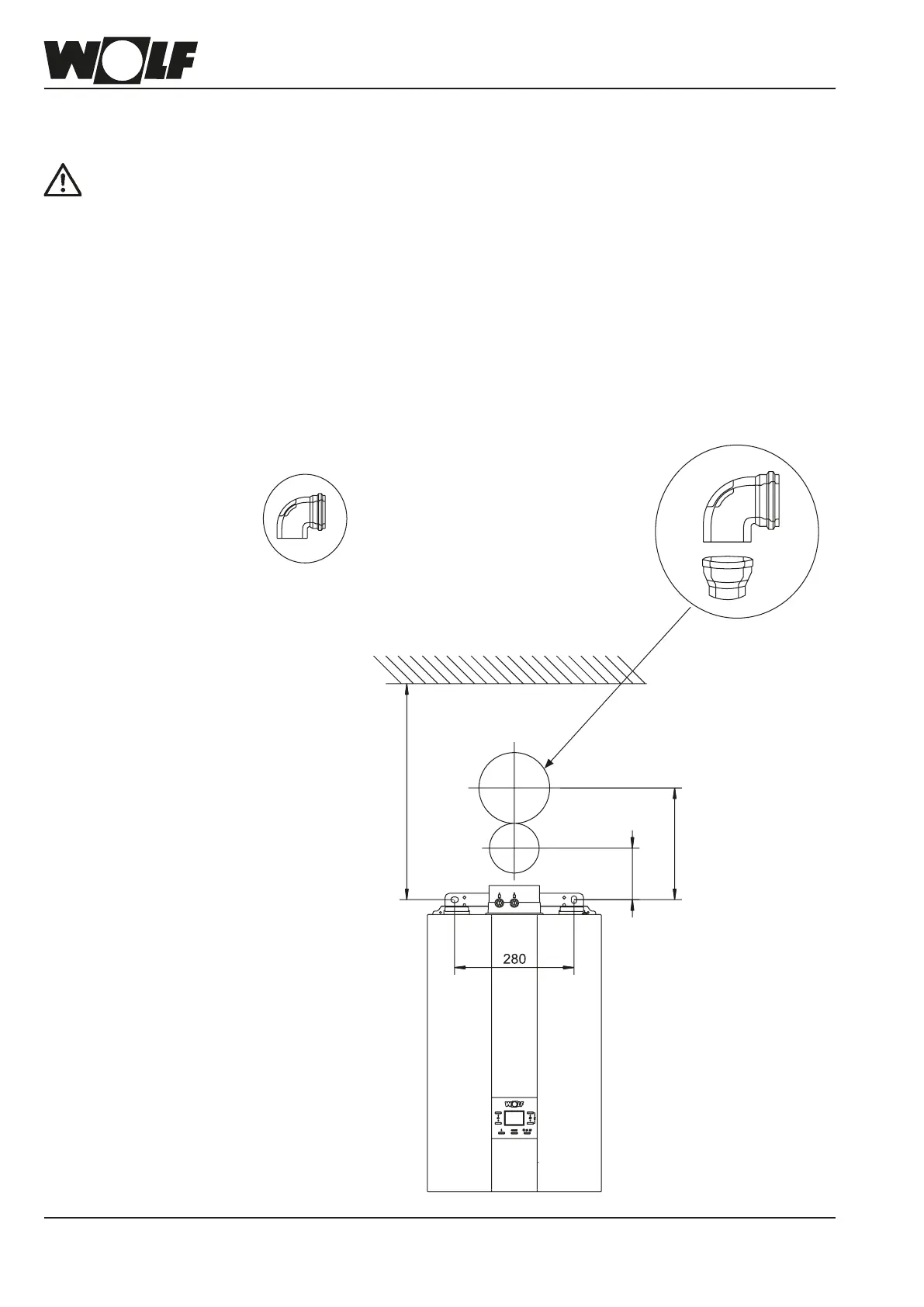

8. Installation dimensions
min. 552 mm
146
230
