Wood-mizer LT70 Series Operator's Manual

Parts List
Wireless Receiver Housing, AC Sawmills
Parts List doc021820 4-4
4

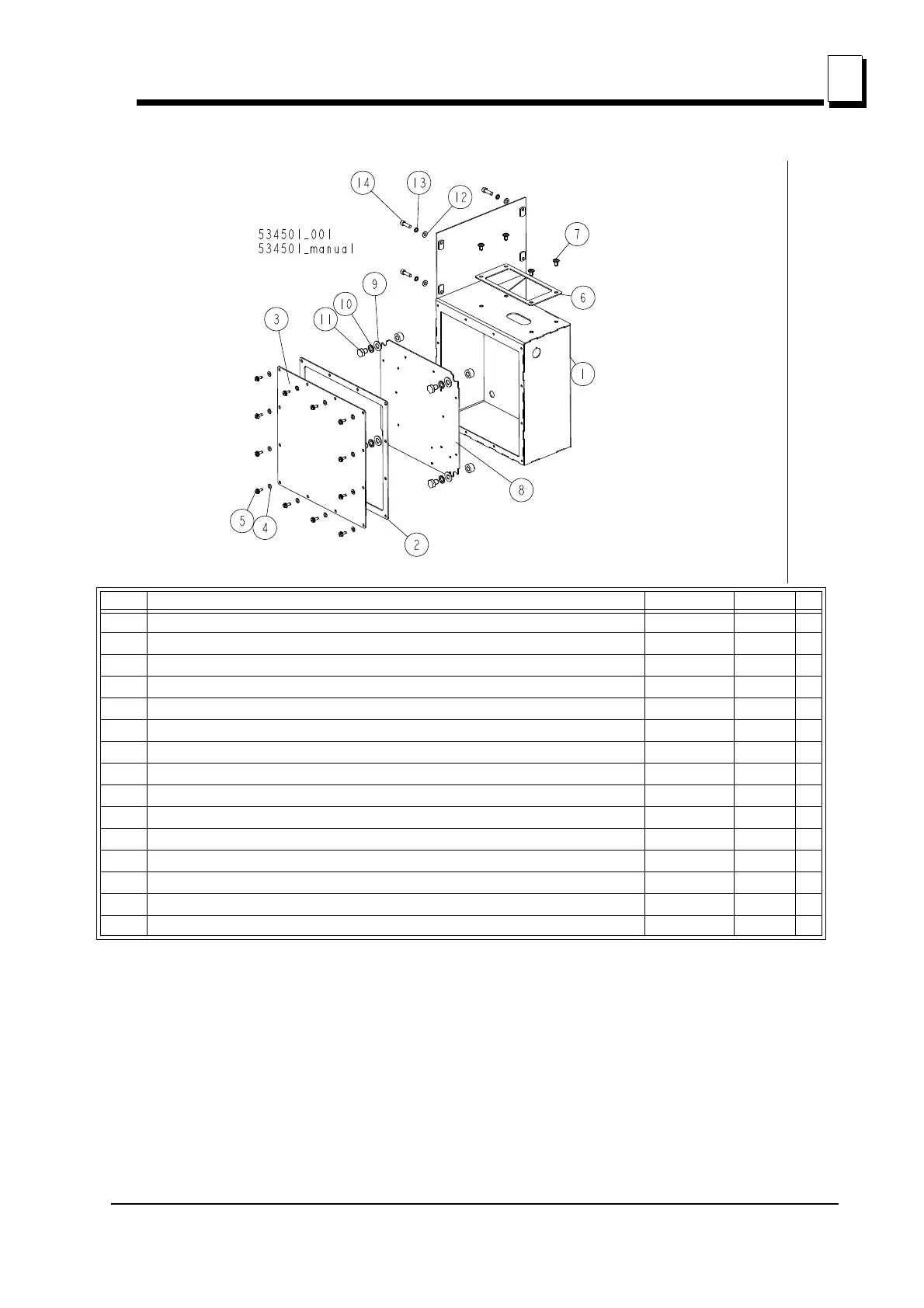

4.6 Wireless Receiver Housing, AC Sawmills
REF. DESCRIPTION ( Indicates Parts Available In Assemblies Only) PART # QTY
- HOUSING, AC WIRELESS RECEIVER 534501 1
1 BOX WELDMENT 534496-1 1
2 GASKET, CORK 534502 1
3 PLATE, FRONT 534500-1 1
4 WASHER, 5.3 FLAT ZINC F81052-1 12
5 BOLT, #10-24X1/2 SELF-TAPPING F05015-7 12
6 GASKET, CORK 532366 1
7 SCREW, M6X10 BN 11252 "BOSSARD". F81001-57 4
8 PLATE, ELECTRIC BOX MOUNT 088266-8 1
9 WASHER, 10.5 FLAT ZINC F81055-1 4
10 WASHER, Z 10.2 SPLIT LOCK ZINC F81055-2 4
11 BOLT, M10X12 HEX HEAD FULL THREAD ZINC F81003-30 4
12 WASHER, 6.4 FLAT ZINC F81053-1 4
13 WASHER, Z 6.1 SPLIT LOCK F81053-3 4
14 SCREW, M6X20 8.8 HEX SOCKET HEAD CAP ZINC F81001-22 4
