Operation
Wireless control panel
1
1-2 doc021820 Operation
Maintenance / Welding
CAUTION! DISCONNECT THE RADIO RECEIVER BEFORE
WELDING on the machine the receiver is connected to. Failure to
disconnect will result in destruction of the radio receiver.
1.2 Wireless control panel
The LT70 sawmills can be equipped with the saw head remote control system (with a wireless
control panel). This system allows you to fully control the saw head, i.e. engage and disengage the
blade, the power feed and up/down operation, the blade guide arm and the debarker as well as to
adjust the feed rate.

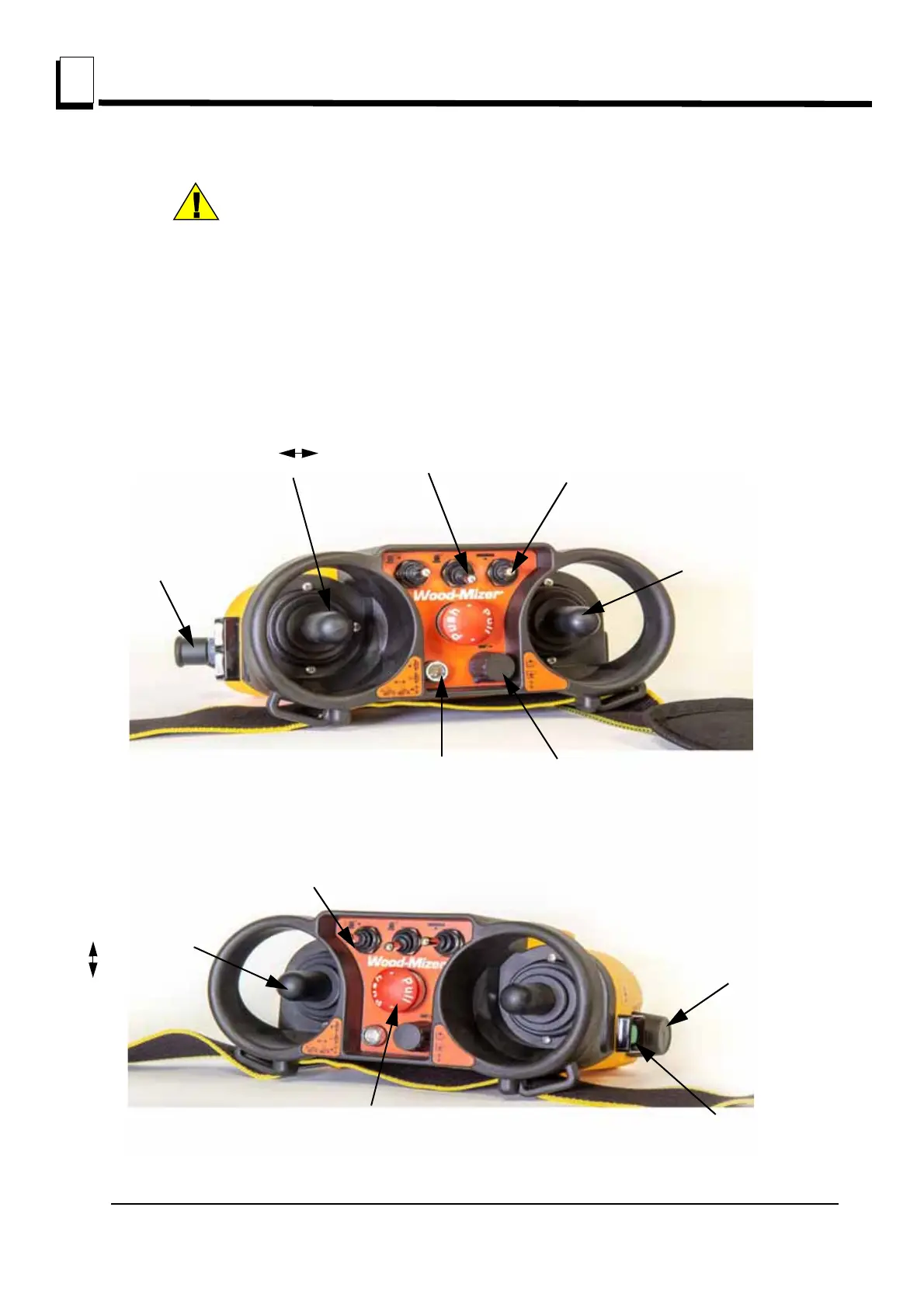

Patrz rysunek 1-1. Wireless control panel functions LT70DC
Saw Head
Forward/Reverse
Blade Guide In/Out
Saw Head Up/Down
Debarker On/Off
Blade Drive On/Off
Emergency Stop
Feed Rate Dial
Debarker In/Out
Panel Working
Status Indicator
(Green)
Diagnostic socket
Starting Key
(Air-Key)
Transmitter
Activation Button
