Wood-mizer LX25 User Manual

Sawhead Parts
Cover Hold-up Latch
6
Sawhead Parts LX25 8/25/21 6-6

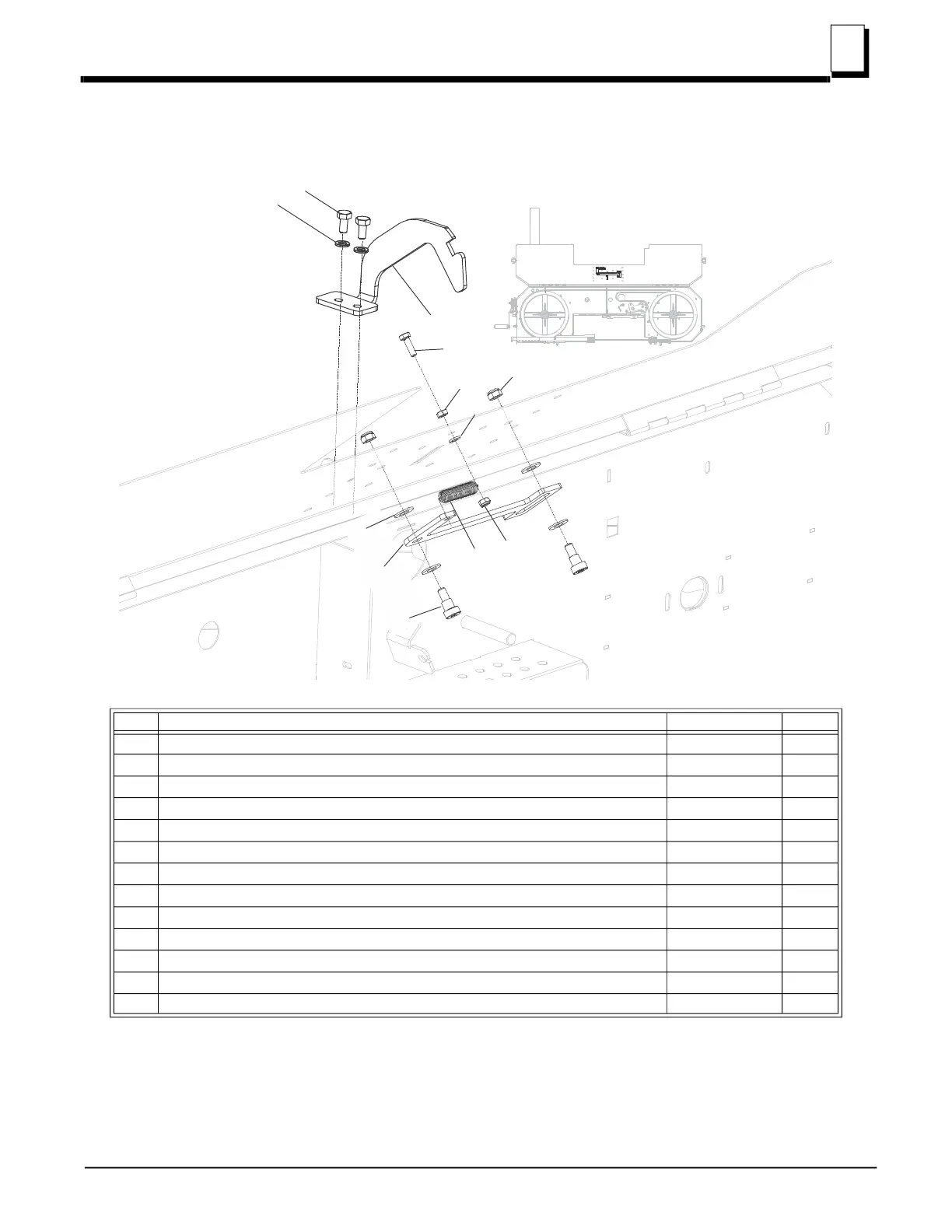

6.5 Cover Hold-up Latch
REF DESCRIPTION (♦ Indicates Parts Available in Assemblies Only) PART # QTY.
ASSY, COVER LATCH X100-981 1
1 Washer, M8 Split Lock F05011-45 1
2 Bolt, M8x1.25x16mm HH F05004-47 1
3 Hook, Cover X100-1020 1
4 Bolt, M6-1 x 20 Class 8 HH F05020-6 1
5 Nut, M6-1.0 Free Nut Zinc F81031-1 1
6 Washer, M6 Flat Class 4 F05026-1 1
7 Washer, M10 Flat SAE F05011-134 1
8 Latch, Cover X100-920 1
9 Bolt, M10x10 SH Shoulder Plain F05022-9 1
10 Spring, 7/16ODx2x.041 Wire Ext X200-997 1
11 Nut, M6-1.0 Nylon Lock F05010-200 1
12 Nut, M8-1.25 Hex Nylock F05010-132 1
12
1
2
3
4
5
6
7
8
9
10
11
100B-029
