Wood-mizer LX25 User Manual

Bed and Carriage Assembly
Optional Log Ramps
8

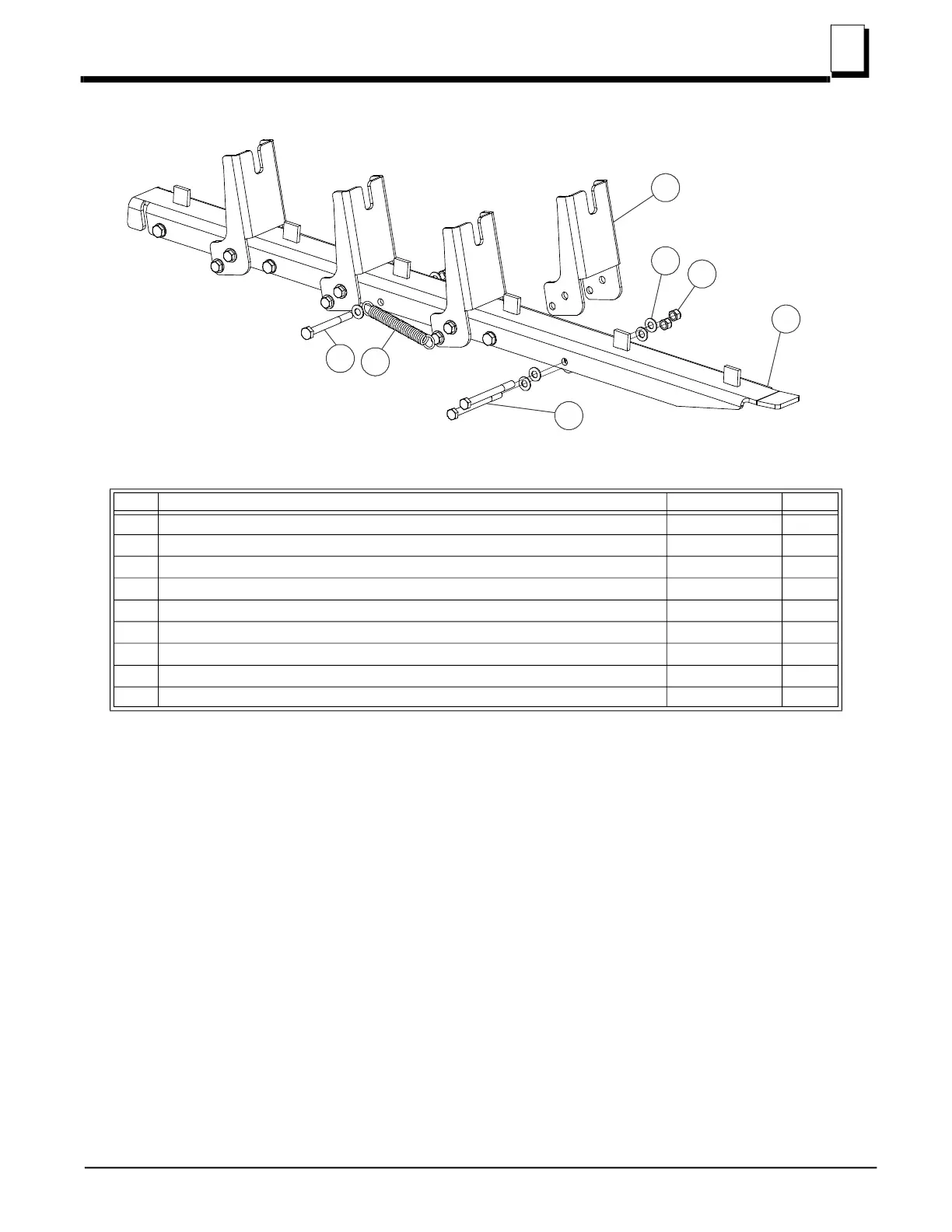

Bed and Carriage Assembly LX25 8/25/21 8-6
8.5 Optional Log Ramps
REF DESCRIPTION (♦ Indicates Parts Available in Assemblies Only) PART # QTY.
ASSY, 2 LOG RAMPS LX55/25 123252 1
Assy, Log Ramp LX55/25 123096 2
1 Bracket, Log Stop LX55/25 123098 8
2 Washer, M10 Flat SAE F05011-134 48
3 Nut, M10-1.50 Hex Nyl Lock F05004-270 24
4 Weldment, Log Ramp LX55/25 123099 2
5 Bolt, M10-1.5x110 Class 8 HH f05022-13 16
6 Spring, Old Style PWR/Feed &T110 Counter P04060 8
7 Bolt, M10-1.5x100 HH Class 8.8 F05022-20 8
123096
1
2
3
4
5
6
7
