Install the clutch cable

3-16 LX25 8/25/21 Setup

3.10 Install the lube water tank

The tools needed are:

 Socket, 10mm

 Combination wrench, 10mm

NOTE: Before installing the water tank, check for blade straightness. See "Blade straight-

ness." In order to loosen the guide block, the water tank must be removed.

1. Fasten the lube water tank to the sawhead with the four M6-1x12 bolts and nuts provided in the hardware kit.

2. Thread the lube water tube through the grommet next to the right blade guide. (See FIG. 3-26 .)

NOTE: Washer M6 flat (F05026-1) has been replaced with 1/4" flat washer (F05011-11) (ECN:37927/ 28.05.2021/Rev.)

3.11 Install the dust chute

The tools needed are:

 Socket, 10mm

 Combination wrench, 10mm

Fasten the dust chute to the sawhead with the three M6-1 x

14 Class 8 bolts and nuts provided in the hardware kit.

(See

FIG. 3-27 .)

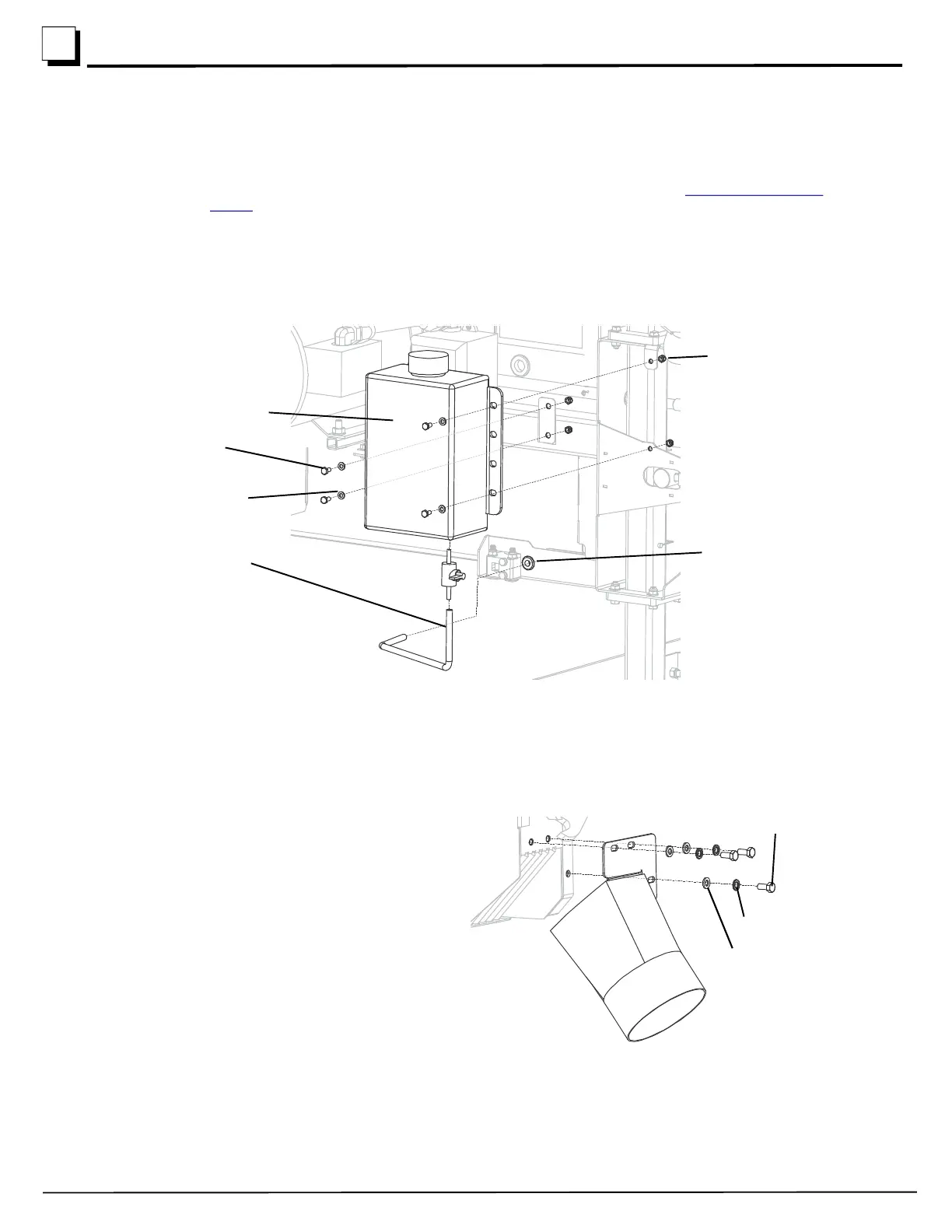

FIG. 3-26

100B-012

Water Lube Tank

Washer, 1/4 SAE

Flat

Water Lube Tube

Grommet

Nut, M6-1.0 Nylon

Lock

Bolt, M6-1x12 HHC

100B-013

Bolt, M6-1 x 14 Class 8

Washer, M6 Split Lock

Washer, M6 Flat Class 4

FIG. 3-27
