Setup
Setup of upper and lower cutter heads
3
3-7 doc050624 Setup
See Figure 3-4.
UPPER/LOWER CUTTER DESIGN
The cutter heads have the following specifications:
The cutter heads are shipped with straight planer knives installed in two of the knife slots.
The head can be fitted with 2 additional straight planer knives in the two empty slots.
FIG. 3-4
Lower Cutter Upper Cutter
Diameter: 2 13/16" (72mm) Diameter: 3,465" (88mm)
Width: 11 13/16" (300mm) Width: 16 3/16" (410mm)
Rotation Speed: 7000 rpm Rotation Speed: 7000 rpm
4 slots for planer knives 4 slots for planer knives
Planing Depth: 0 - 5/32" (0-4mm) Planing Depth: Max 0,2" (5mm)
Moulding Depth: Max. 0,7" (18mm)

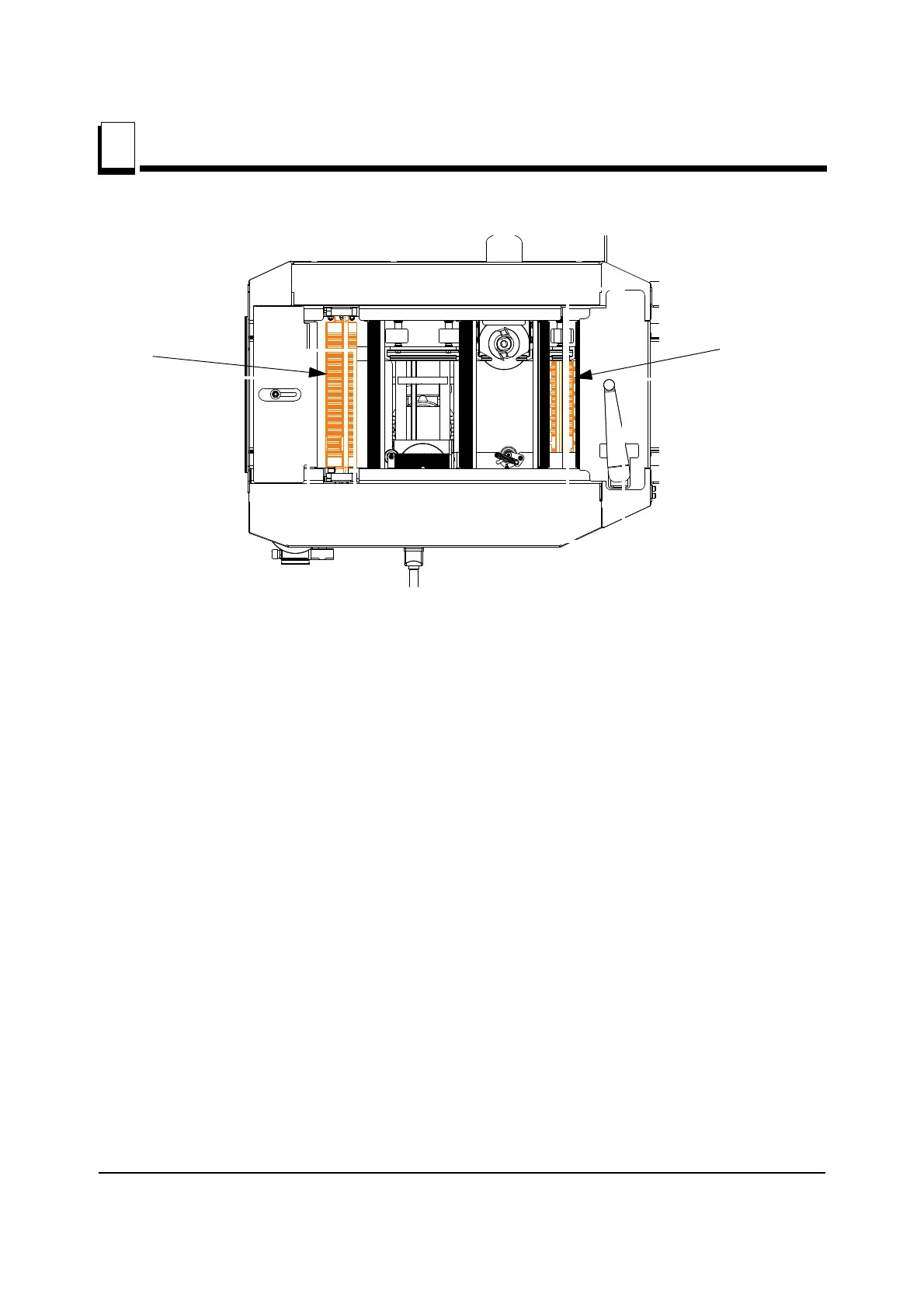

TOP VIEW
Lower Cutter
Upper cutter
