Setup
Adjusting cutting depth of the lower cutter
Setup doc050624 3-16
3
See Figure 3-10. The adjusting plates are held in place by countersunk screws.
The 2mm spacer is the most common setting.
Various configurations used to remove wood:
4 mm (5/32”), do not use any takeoff adjustment plate.
3 mm (1/8”), use the 1 mm takeoff adjustment plate with beveled holes.
2 mm (5/64”), use the 2 mm takeoff adjustment plate.
1 mm (1/16”), use the 1 mm takeoff adjustment plate with flat holes (on the bottom)
AND the 2 mm takeoff adjustment plate.
0 mm, use the 1 mm takeoff adjustment plate with beveled holes, the 1 mm takeoff
adjustment plate with flat holes (sandwiched), and the 2 mm takeoff adjustment
plate.

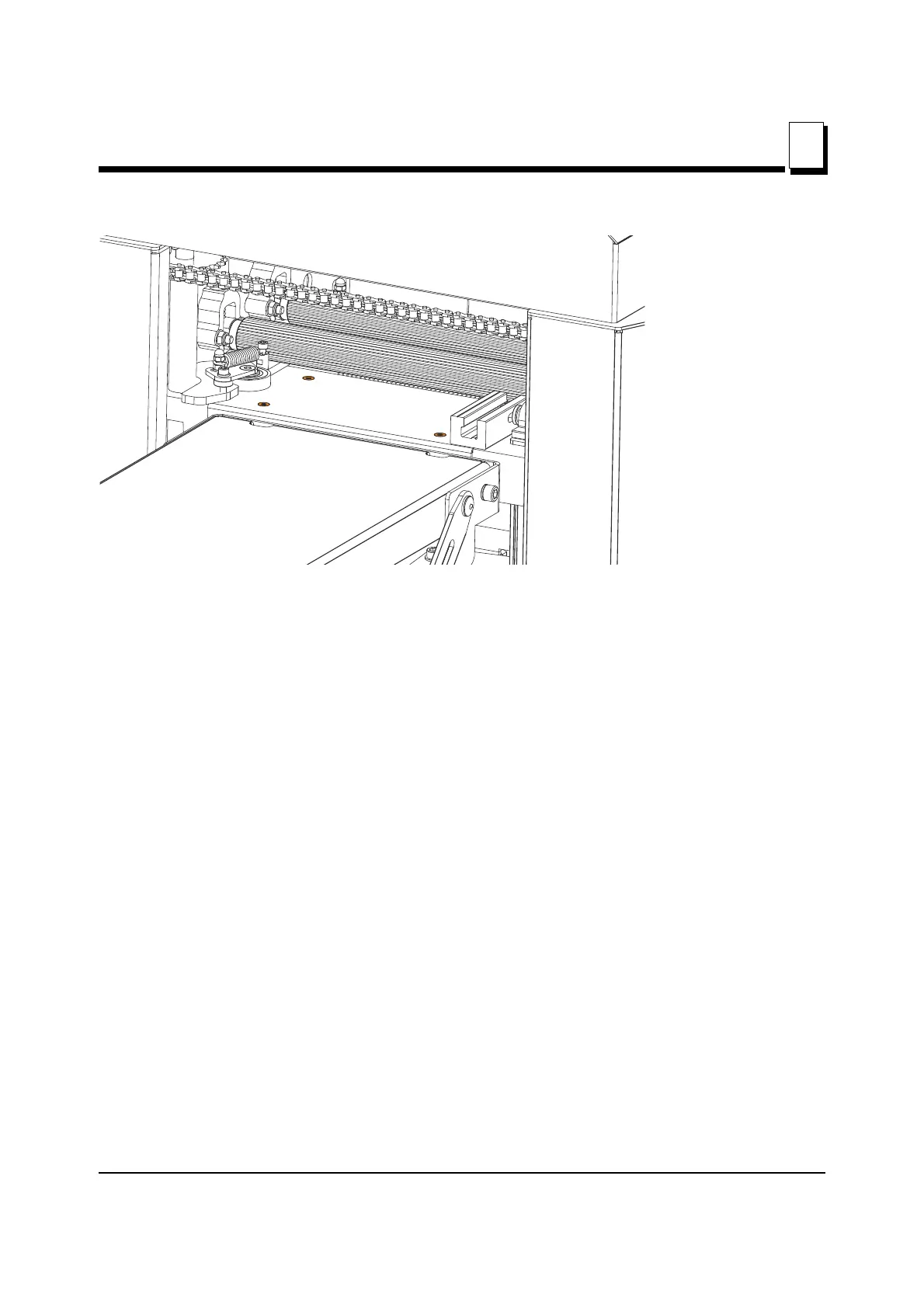

FIG. 3-10
No plate currently loaded:
wood takeoff would be
5/32” (4mm).
