Setup
Setting the movable side cutter head
Setup doc050624 3-28
3
See Figure 3-22.
To set the pressure rollers, you loosen the screw (6 mm hex key) that secures the roller
bracket on the movable cutter carriage. Adjust the bracket so that the pressure rollers
are pressed in approximately 0.2” (5 mm) when the work piece is fed into the machine.
The pressure rollers do not need adjusting.
Behind the movable cutter there is an additional pressure roller, which presses the work
piece against the back fence. Set this pressure roller so that it extends approximately
1/32 - 1/8” (1-3 mm) past the cutting diameter at the level of the pressure roller.

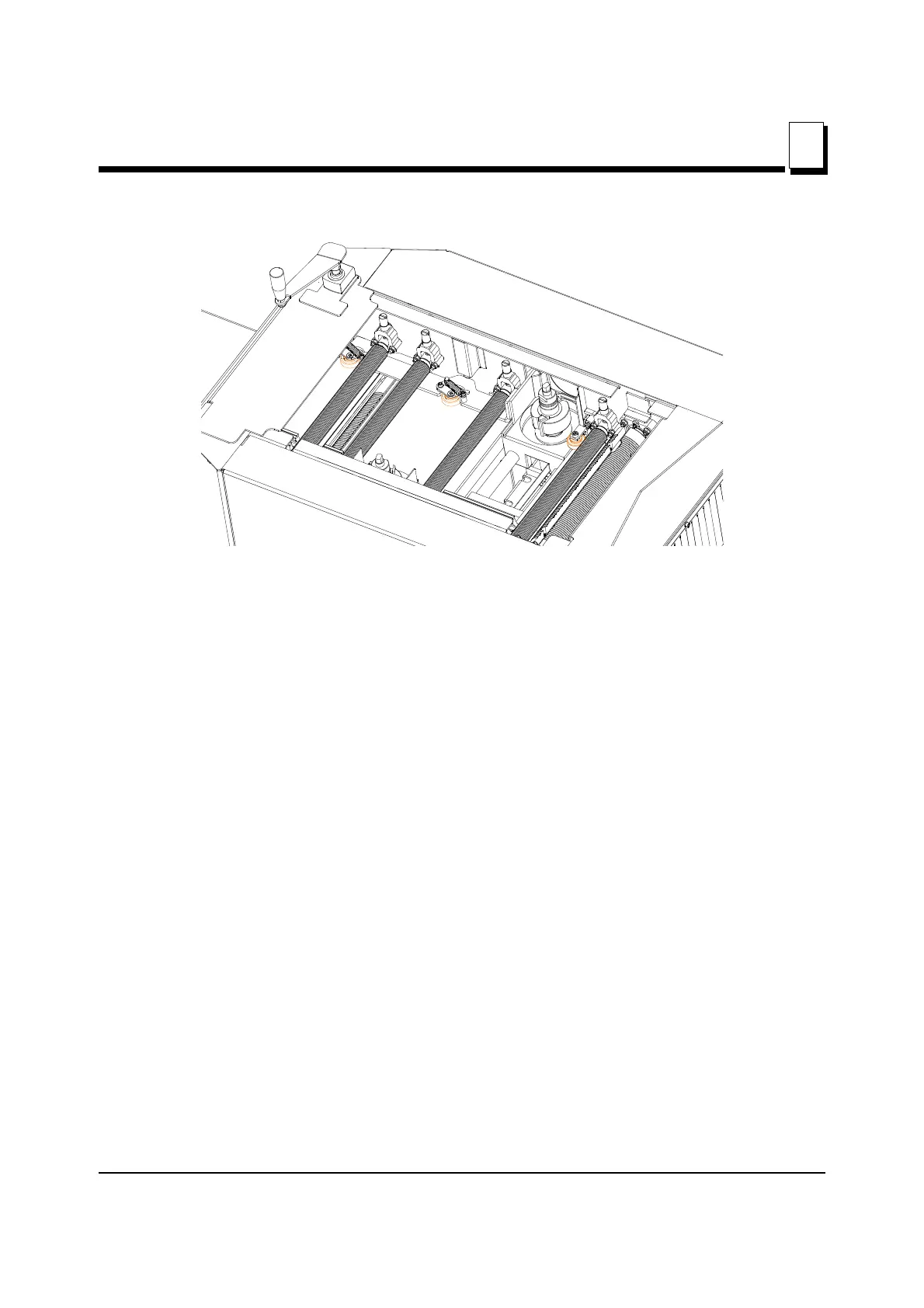

FIG. 3-22
