.50 Series Parts 31
MAN1246 (04/10/2018)

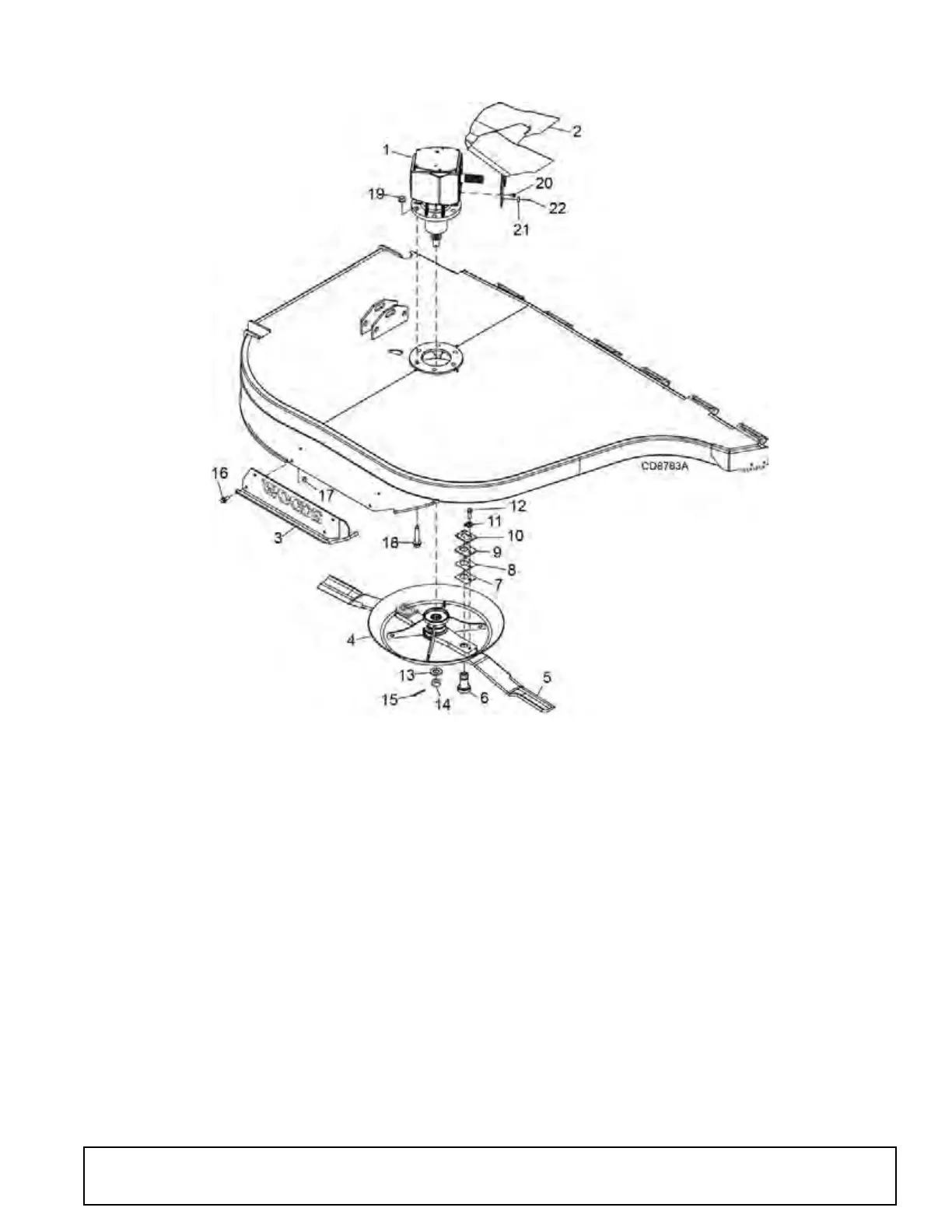

WING ASSEMBLY
REF PART QTY DESCRIPTION
1 1045869 1
Gearbox, Right wing
(see page 35) -OR-
1 1045870 1 Gearbox, Left wing (see page 35)
2 1046059RP 1 Clutch shield, hinged
3 1044990RP 1 Skid, Right wing -OR-
3 1044991RP 1 Skid, Left wing
4 1044941RP 1 Crossbar assembly
5 19160KT 1 Blade kit, CCW (Right wing) -OR-
5 19161KT 1 Blade kit, CW (Left wing)
6 1045034RP 2 38.1 mm Blade pin
7 10520RP 2 Shim, 18 GA, 1-1/2 blade pin
8 13946RP 2 Shim, 20 GA, 1-1/2 blade pin
9 1028824RP 2 Spacer, 5/16 thick
10 32603 2 Keyhole plate - special
11 32604RP 2 Blade pin lock clip - special
12 3379* 2 1/2 NC x 1-1/2 HHCS, GR5
REF PART QTY DESCRIPTION
13 1024670 1 Washer, 31 mm x 56 mm x 6 mm
14 39323 1 M30 x 2.0P Castle nut
15 6185 * 1 6.35 mm x 57 mm Cotter pin
16 1031225 4 1/2 NC x 1-1/4 HFS, GR5
17 11900 * 4 1/2 NC Flanged lock nut
18 1043460 6 3/4 NC x 3-1/2 HFS, GR5
19 1045611 6 3/4 NC Flanged lock nut
20 1041071 4 M8 - 1.25P x 16 mm HFS, CL8.8
21 603778 2 8 mm screw
22 603779 2 8 mm retainer
* Standard Hardware, Obtain Locally
HHCS Hex Head Cap Screw
HFS Hex Flange Screw
