32 .50 Series Parts
MAN1246 (04/10/2018)

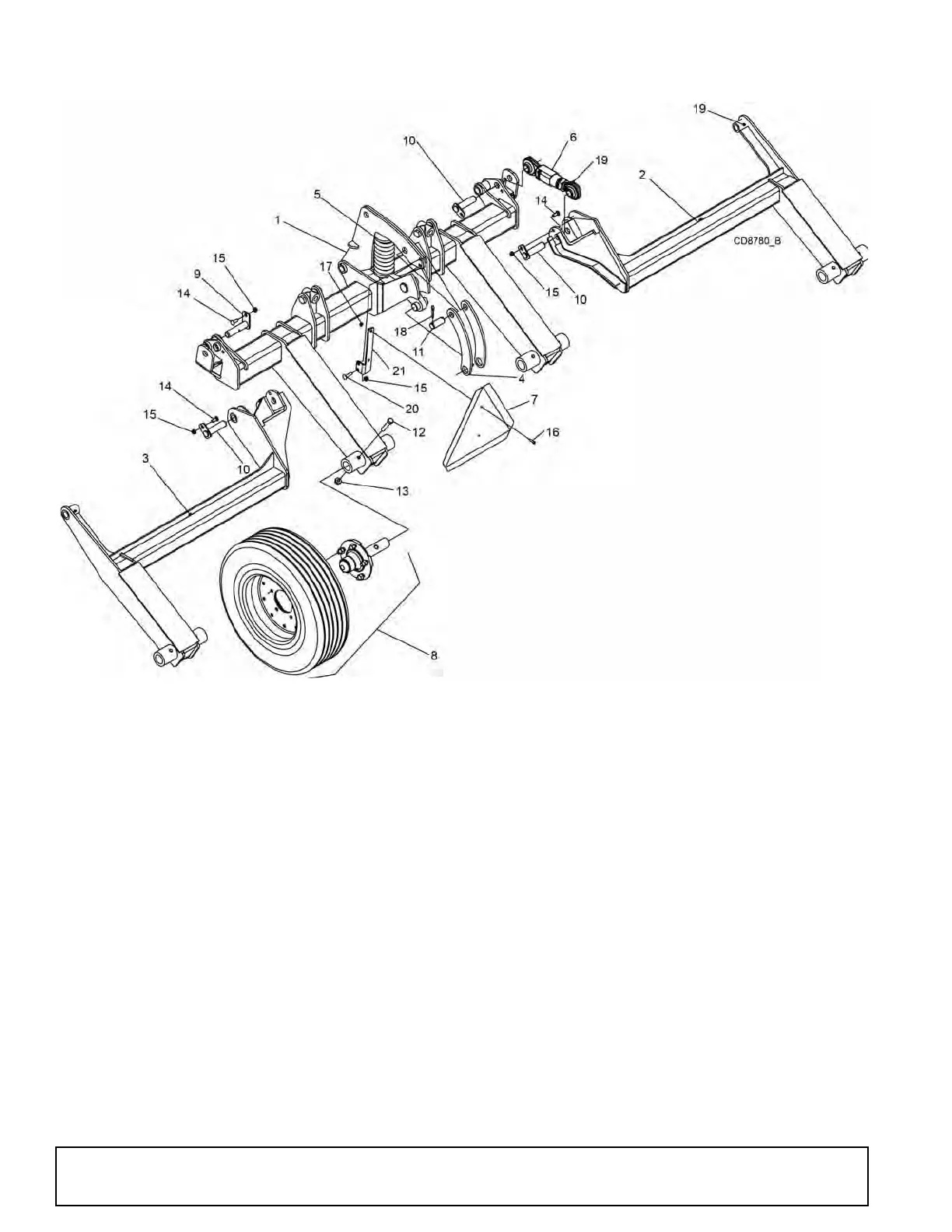

CENTRE WHEEL YOKE ASSEMBLY
REF PART QTY DESCRIPTION
1 1044963RP 1 Wheel yoke, centre
2 1044964RP 1 Wheel yoke, right
3 1044965RP 1 Wheel yoke, left
4 1045012RP 2 Spring link
5 1032100RP 1 Spring, comp
82.6 mm x 14.2 mm x 185 mm x 1113
6 1039950 2 Adjustable link
7 24611 1 SMV Emblem
8 ------- 4 Tire & hub (see page 65)
9 1044844 3 25 mm x 109 mm Pin
10 1038100 8 25 mm x 98 mm Pin
11 1044832 1 25 mm x 64 mm Pin
REF PART QTY DESCRIPTION
12 3489 * 4 1/2 NC x 3 HHCS, GR5
13 11900 * 4 1/2 NC Flanged lock nut
14 6697 * 11 3/8 NC x 1 Carriage bolt, GR5
15 14350 * 13 3/8 NC Flanged lock nut
16 1041087 * 2 1/4 NC x 1 Button head screw, GR5
17 W70065 * 2 1/4 NC Whiz nut
18 1285 * 2 6.35 mm x 38.1 mm Cotter pin
19 1043432 * 10 Zerk, 1/4 Drive Type
20 W301104 2 3/8 NC x 1.5 Carriage Bolt GR5
21 1046094RP 1 SMV Bracket
* Standard Hardware, Obtain Locally
HHCS Hex Head Cap Screw
To Next Page
