Woods Batwing BW15.50E - Page 33

.50 Series Parts 33
MAN1246 (04/10/2018)

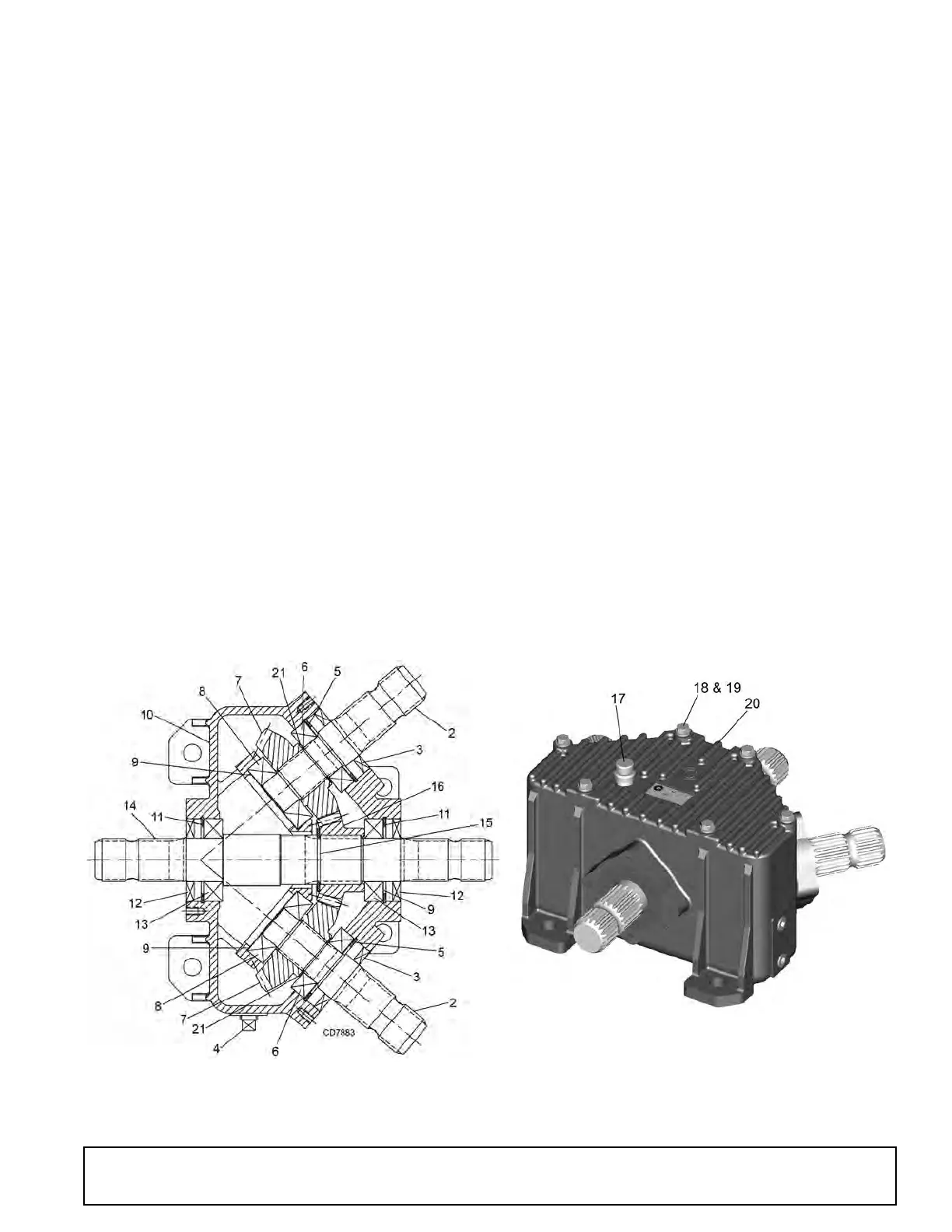

SPLITTER GEARBOX ASSEMBLY
REF PART PART QTY DESCRIPTION
540 RPM 1000 RPM
1 1034946 1034947 - Complete splitter gearbox
2 1034977 1034977 2 Output shaft 1-3/4 - 20
3 1034981 1034981 2 Seal, output double lip
4 ------- ------- 2 3/8 Plug
5 1034984 1034984 2 Snap ring, internal 80 mm
6 1034978 1034978 2 Bearing
7 1034949 1034988 2 Gear
8 1034980 1034980 2 Bearing
9 1034982 1034982 1 Shim set
10 ------- ------- 1 Housing
11 1034914 1034914 2 Snap ring - internal 85 mm
12 1034921 1034921 2 Oil seal - input
13 1034979 1034979 2 Bearing
14 1034976 1034976 1 Input shaft 1-3/4 - 20
15 1034915 1034915 1 Snap ring - external
16 1034975 1034987 1 Gear
17 1034924 1034924 1 Plug - relief, 1/2-14 NPT
18 ------- ------- * Lock washer, M8 split
19 ------- ------- * Screw, hex M8 x 1.25P x 35 mm
20 1034948 1034948 1 Cover
21 1034983 1034983 2 Snap ring, external 40 mm
* Standard hardware, obtain locally
