36 .50 Series Parts
MAN1246 (04/10/2018)

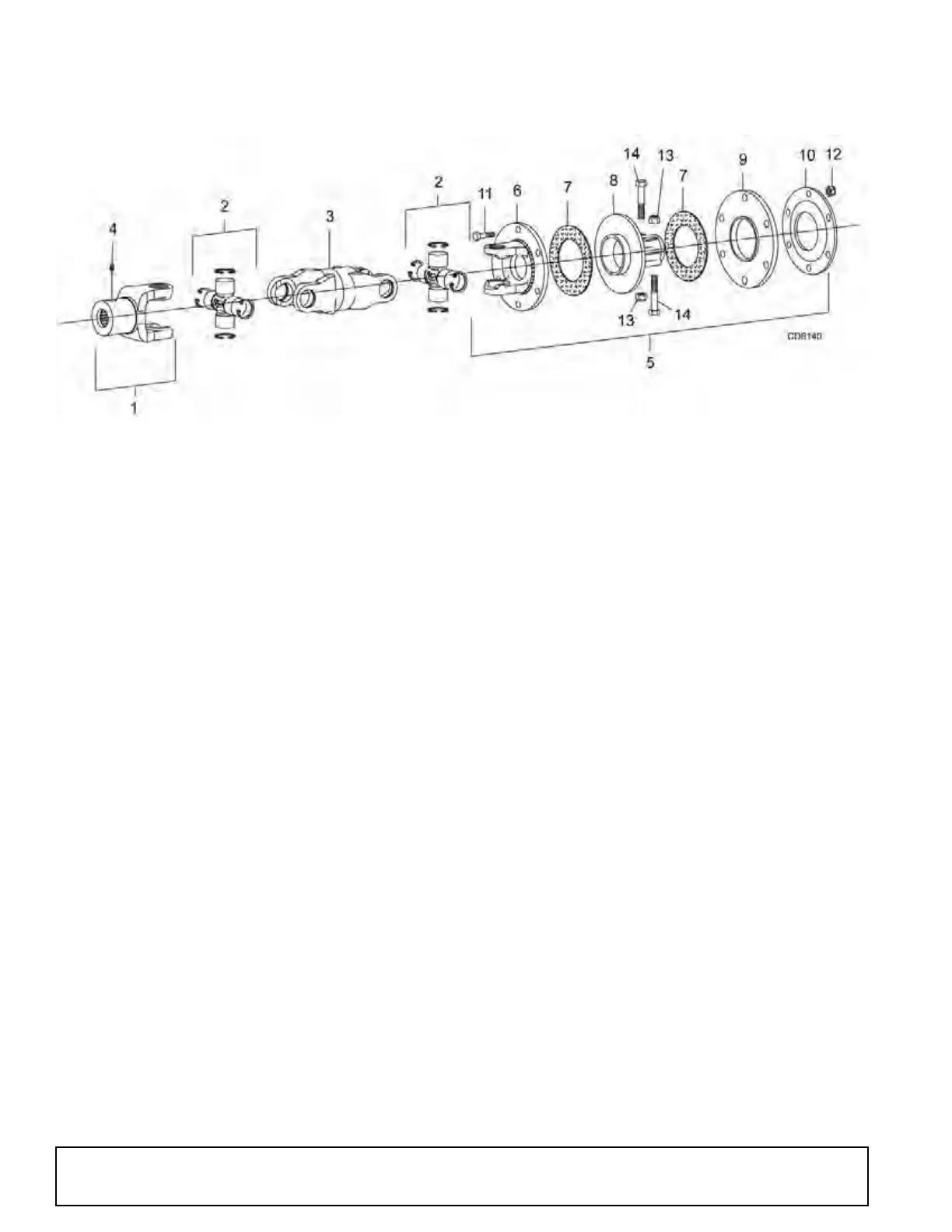

CENTRE DECK DRIVE ASSEMBLY
REF PART QTY DESCRIPTION
A 1044896 1 Complete centre drive assembly
1 1019107 1 Yoke, 1-3/4, 20 spline
2 1045581 2 Cross & bearing kit
3 1045576 1 Double yoke
4 1005521 1 Grease fitting
5 1019114 1 Friction clutch 1340 1-3/4, 20 spline
6 1027217 1 Flange yoke
7 57432 1 Friction disc (package of 2)
REF PART QTY DESCRIPTION
8 57440 1 Hub, 1-3/4, 20 spline
9 57434 1 Thrust plate
10 57439 1 Belleville spring plate
11 57259 6 M10 x 1.5P x 55 mm HHCS 8.8
12 57260 6 M10 x 1.5P Hex lock nut
13 57261 2 M12 x 1.75P Hex lock nut
14 57262 2 M12 x 1.75P x 65 mm HHCS 8.8
15 1005508 Clutch repair kit
(includes items 7, 10, 11, 12, 13 & 14)
To Next Page
