Worcester 29CDi GC 47-406-34 User Manual

INSTALLATION
6 720 803 599 (2012/06) 27

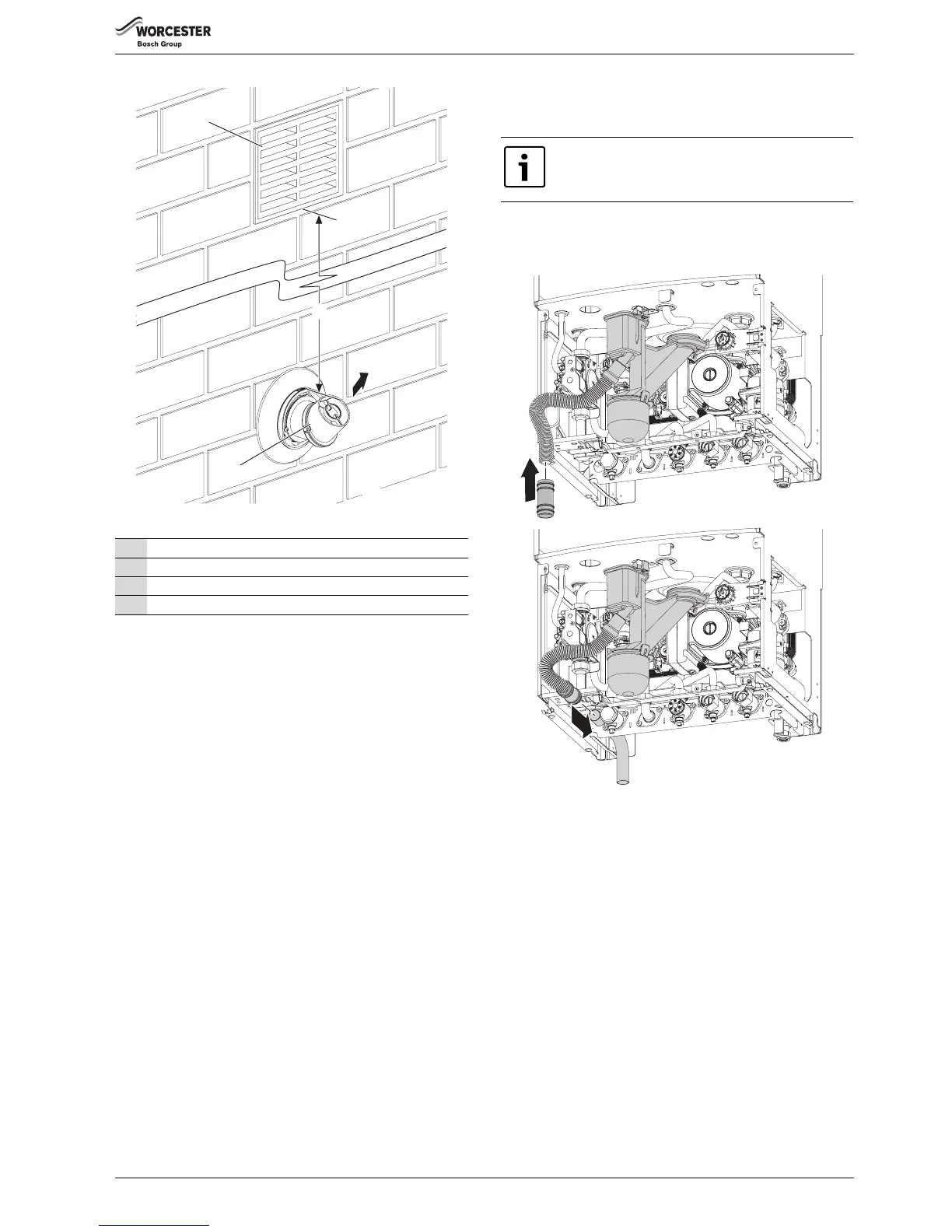

Fig. 33 Plume distance to opening
4.7 CONDENSATE CONNECTION
Never terminate or discharge into any open source, including; sink,
bath, shower, bidet, toilet etc.
B Ensure that the condensate drain is 22mm diameter plastic pipe. It
must fall at least 52mm per metre towards the outlet
B A 22mm adaptor pipe is contained in the fitting pack.
Fig. 34 Fitting siphon
1 Opening in building
2Flue discharge
3Plume deflector
4 Minimum 1500mm from an opening in the building
6720643895-119.1Wo
1
3
4
2
Any external condensate pipe work of excessive runs
should be protected with weather resistant insulation to
help prevent freezing.
6720647361-16.2Wo

Worcester 29CDi GC 47-406-34 Specifications

General

Model	29CDi
Category	Boiler
GC Number	47-406-34
Fuel Type	Natural Gas
Domestic Hot Water Output	29 kW
Efficiency Rating	A
Efficiency	89.2%
Central Heating Flow Temperature Range	30 - 80 °C
Dimensions	760 x 440 x 360 mm
Domestic Hot Water Flow Rate	12.3 litres/min
