2 APPLIANCE INFORMATION
2.1 GENERAL INFORMATION

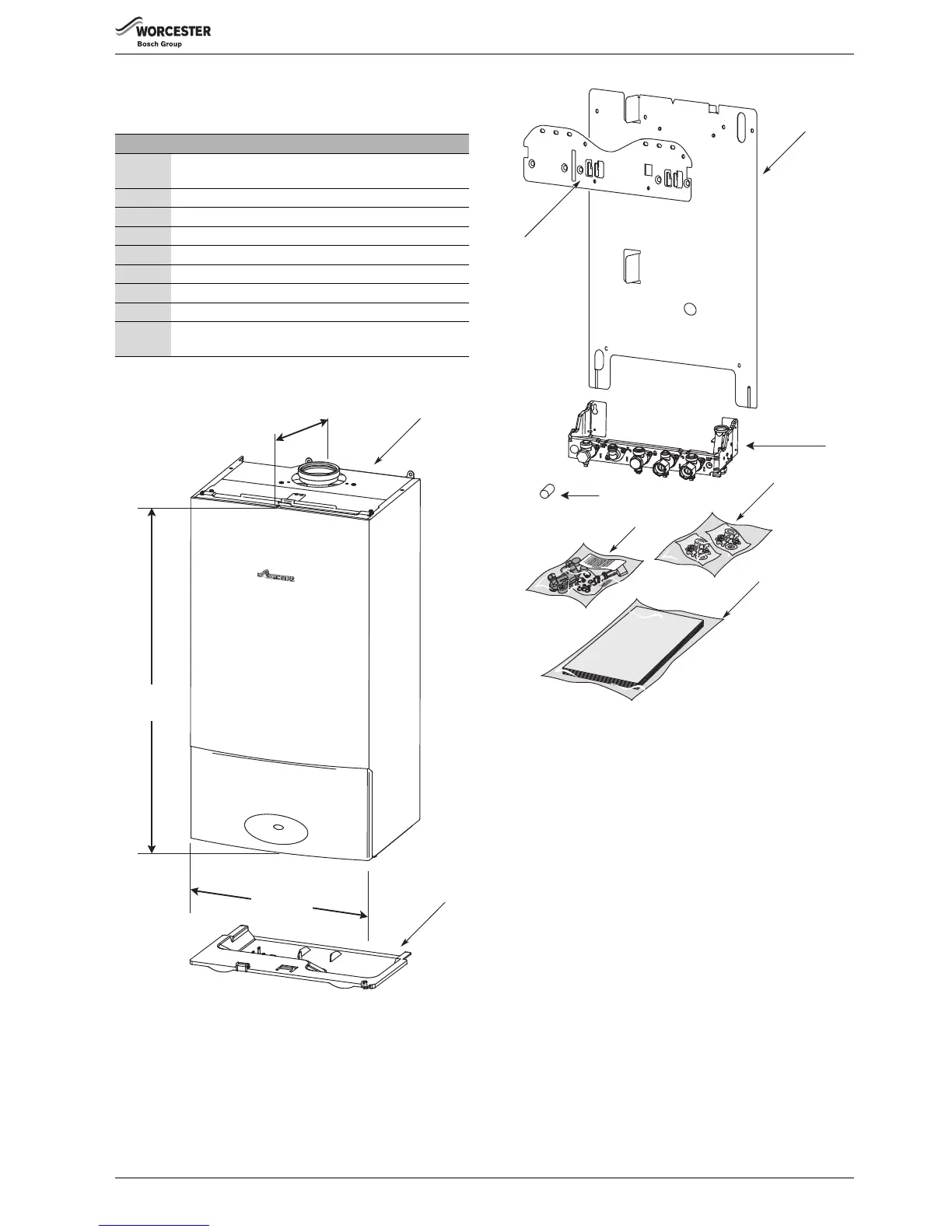

Fig. 1 Overall dimensions
Fig. 2 Standard package
STANDARD PACKAGE:
A Wall hung gas fired condensing combi boiler for central
heating and domestic hot water
B Wall mounting plate
C Hanging bracket
D Pre-plumbing manifold
E Hardware pack
F Charging Link Assembly
G Literature pack
H Bottom panel
I Trap / Siphon Outlet Connection
(22 mm Plastic Pipe)
H
A
ma
x.
360
mm
max.
760 mm
440mm
6720647361-01.3Wo
B
C
D
G
F
E
6720647631-02.1Wo
I
