6.1.3 TO CLEAN THE HEAT EXCHANGER
B Remove outer case and base panel and isolate the appliance from
power.
1. Remove cleaning access cover (B), seal (C) and metal plate (D)
securing it, if present.

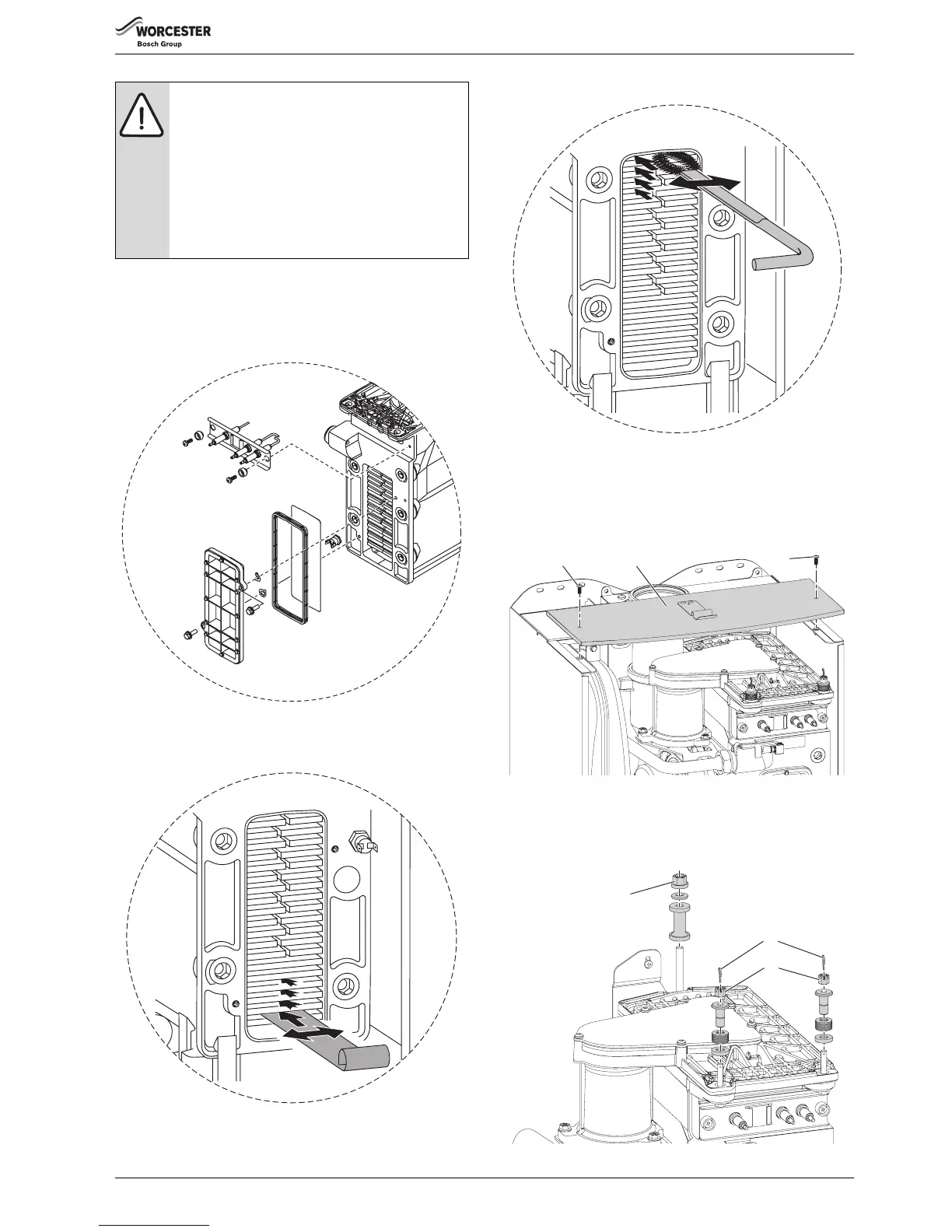

Fig. 50 Cleaning heat exchanger
2. Loosen any deposits in the heat exchanger from top to bottom using
the cleaning blade.
3. Clean the heat exchanger from top to bottom using the brush.
B Refit the clean out cover plates in reverse order using a new seal (C)
and tighten screws.
6.1.4 TO CLEAN THE BURNER
1. Remove cover panel (A) by removing the screws (B).
B Check that the boiler is completely isolated from the gas supply.
2. Remove the clips (C) and unscrew the two bolts (D).
B Unscrew and remove the two hexagon screws (E) securing the fan.
B Slacken fully the rear securing bolt (F).
B Remove the burner cover plate (G).
NOTICE: Air/Gas ratio
B After servicing the CO/CO
2
must be checked using
the procedure in the section “Setting the air/gas ratio”
on page 38.
B The setting of the air/gas ratio must be carried out by
a competent person.
Setting the air/gas ratio must not be attempted unless
the person carrying out the operation is equipped
with a combustion analyser conforming to BS 7927
and is competent in its use.
B
C
D
1.
6720803599-02.1Wo
2.
6720803599-03.1Wo
3.
6720803599-04.1Wo
AB
6720647361-63.1Wo
B
1.
F
C
D
2.
6720647361-64.1Wo
