DT10RF OPTIMISING PROGRAMMER
INSTRUCTION MANUAL
8 716 115 494a (02.2009)
OPERATING & INSTALLATION
INSTRUCTIONS
15
Option select
On/Off
setting

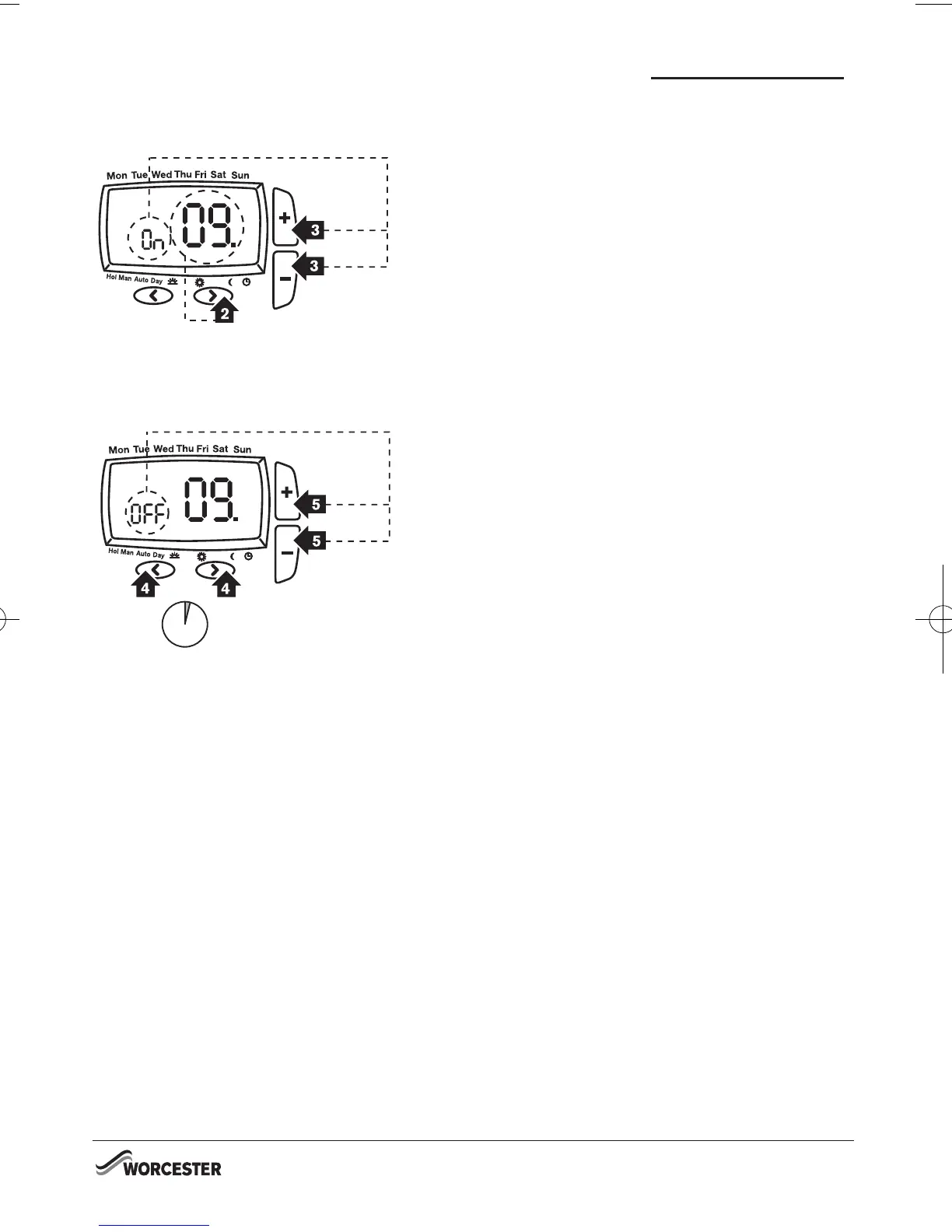

Option 09 How to lock the key pad - Access Protection
Lock.
The access protection lock allows you to lock the Digistat
Optimiser so that it cannot have any adjustments.
The default is Off mode allowing you to adjust the Digistat.
1. To Lock the Digistat settings enter the user options by
pressing < and > simultaneously for 3 seconds.
2. Select option 09 by pressing > until 09 appears.
3. Use + or – keys to select On.
Press > to accept.
Once the User Options Menu is exited all buttons will be
locked.
4. To switch off the Protection Lock enter the user options by
pressing < and > simultaneously for 3 seconds.
5. Change to Off.
Press > to accept.
Once the User Menu is exited all buttons will be free to
adjust.
NOTE: To exit User Options press < and >
simultaneously for 3 seconds.
Together
On/Off
setting
3 sec
Special Note:
The following only applies when the Intelligent delayed start feature is enabled.
Ask your installer for details
When the delay period is operating indicated by the flame symbol flashing, pressing any button returns the
DT10RF OPTIMISING PROGRAMMER to auto mode allowing normal button operation until the next
time/temperature event, when it will resume the delay start mode or follows the Holiday, Manual, Override or
Off modes as selected.
Changes to the installer options and pre-set programmes must be made with the flame symbol not flashing
What is Intelligent delayed start.
The Intelligent Delayed Start is an energy saving feature which automatically reduces the warm up time for
the heating system.
As the weather becomes milder, Intelligent Start will delay the heating start times so that the fuel is not
wasted bringing the room up to temperature earlier than necessary.
NOTE: See page 31for further information and set up details.
DIGISTAT OPTIMISER
USER OPTIONS
8_716_115_494a 9/2/09 09:49 Page 17
