Worcester DT10RF User Manual

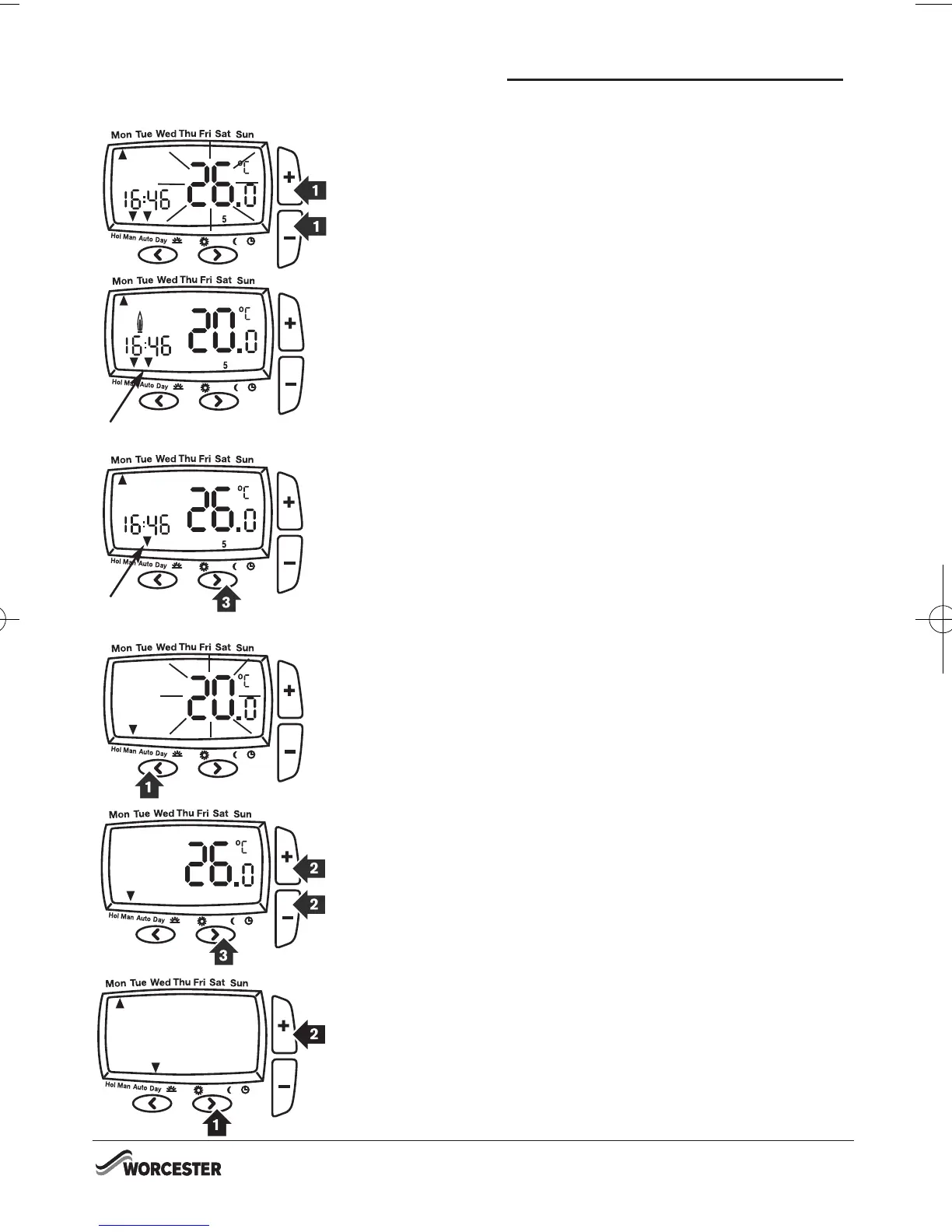

To change temperature for a short period (Override):
1. Press + or - buttons to adjust set temperature.
Set temperature flashing as shown.
2. After 5 seconds the Digistat will start controlling at selected
set point but displays actual room temperature.
Two chevrons indicates override mode.
3. To exit override press > once or wait until next change in
the pre-set program (i.e. when period 5, in this case,
becomes period 6).
To set a constant room temperature
(Manual mode):
1. Press < once, the display shows temperature flashing
(e.g. 20°C).
2. Press + or - buttons to adjust the temperature as required.
The temperature will stop flashing after 5 seconds and start
controlling at this temperature.
3. Press > once, to return to auto mode.
Digistat Optimising Programmer -
7-Day operation:
1. With the product operating as normal in Auto mode press
> once.
2. Press + button until the display is flashing as shown.
OR
2 chevrons indicate override mode
Reverts to 1
chevron
OR
PROGRAMMABLE SETTINGS
ADJUSTING TIMES & TEMPERATURES
DT10RF OPTIMISING PROGRAMMER
INSTRUCTION MANUAL
8 716 115 494a (02.2009)
OPERATING & INSTALLATION
INSTRUCTIONS
DT10RF OPTIMISING PROGRAMMER
INSTRUCTION MANUAL
8 716 115 494a (02.2009)
OPERATING & INSTALLATION
INSTRUCTIONS
7
8_716_115_494a 9/2/09 09:49 Page 9

Worcester DT10RF Specifications

General

Compatibility	Worcester Bosch Boilers
Display	LCD
Programming	7-day programmable
Mounting	Wall-mounted
Wireless	Yes
RF Frequency	868 MHz
Accuracy	±0.5°C
Type	Digital
Power Source	Battery
Communication	Radio Frequency
