Worcester DT10RF User Manual

DT10RF OPTIMISING PROGRAMMER
INSTRUCTION MANUAL
8 716 115 494a (02.2009)
OPERATING & INSTALLATION
INSTRUCTIONS
25
DT10RF RECEIVER
INSTALLATION
DANGER: 230 VOLTS
DO NOT TOUCH THE
ELECTRICAL COMPONENTS
OR CIRCUITS
CAUTION:
ISOLATE THE MAINS ELECTRICITY
SUPPLY BEFORE STARTING ANY
WORK AND OBSERVE ALL RELEVANT
SAFETY PRECAUTIONS

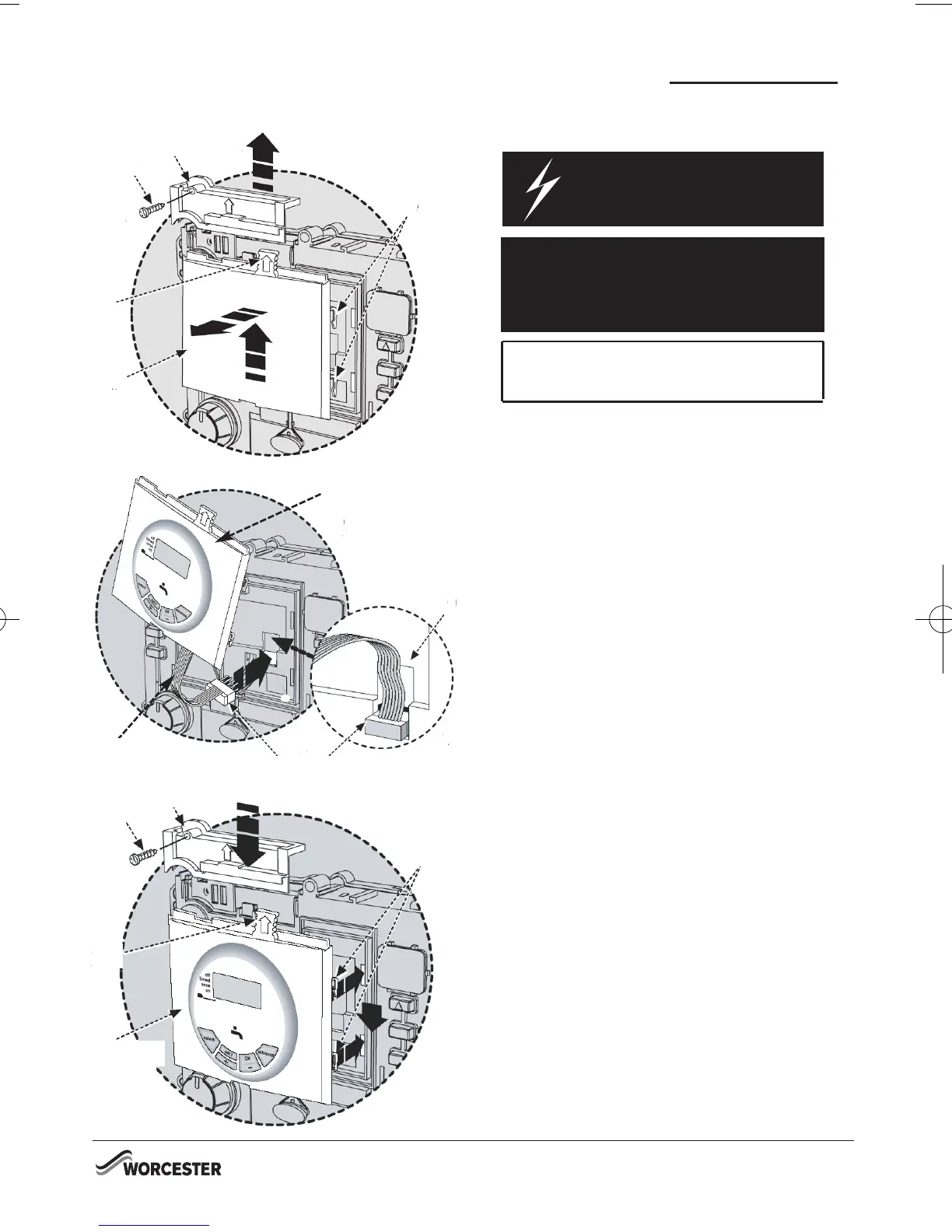

1. Remove the boiler outer casing and control
panel fascia to gain access to the heatronic
control panel.
Release the securing screws.
Pull the cover panel upwards to remove.
Grip the tab and pull upwards to disengage
clips, pull forward to remove blanking plate or
existing programmer.
2. Align connector pins into the sockets on the
PCB and push fully home.
Feed the ribbon cable into the recess.
3. Align the programmer and locate the clips,
push into the slots then downwards to secure.
Locate the cover panel in place and secure
with the screw.
Replace fascia cover and outer casing before
switching on the electrical supply and boiler.
Switch boiler on when completed.
Refer to the User Instructions section for
details of pre-set and setting programs.
Clips
Panel
Screw
Tab
Blanking
plate
Recess
Connector plug
Receiver
Ribbon cable
Clips
Programmer
Screw
OBSERVE ELECTRO-STATIC
DISCHARGE PRECAUTIONS.
DO NOT TOUCH THE PCB CIRCUIT
Tab
NOTE: THIS ACCESSORY MUST BE FITTED
BY A COMPETENT PERSON.
FAILURE TO COMPLY COULD LEAD
TO PROSECUTION.
8_716_115_494a 9/2/09 09:49 Page 27

Worcester DT10RF Specifications

General

Compatibility	Worcester Bosch Boilers
Display	LCD
Programming	7-day programmable
Mounting	Wall-mounted
Wireless	Yes
RF Frequency	868 MHz
Accuracy	±0.5°C
Type	Digital
Power Source	Battery
Communication	Radio Frequency
