Getting started
EN
20
2.2 Charging base checklist:
within reach of AC mains
in shade (if possible)
no obstacles, and no area of sparse grass within the 2 m straight path to the charging base
flat or level location
no irrigation sprinklers nearby

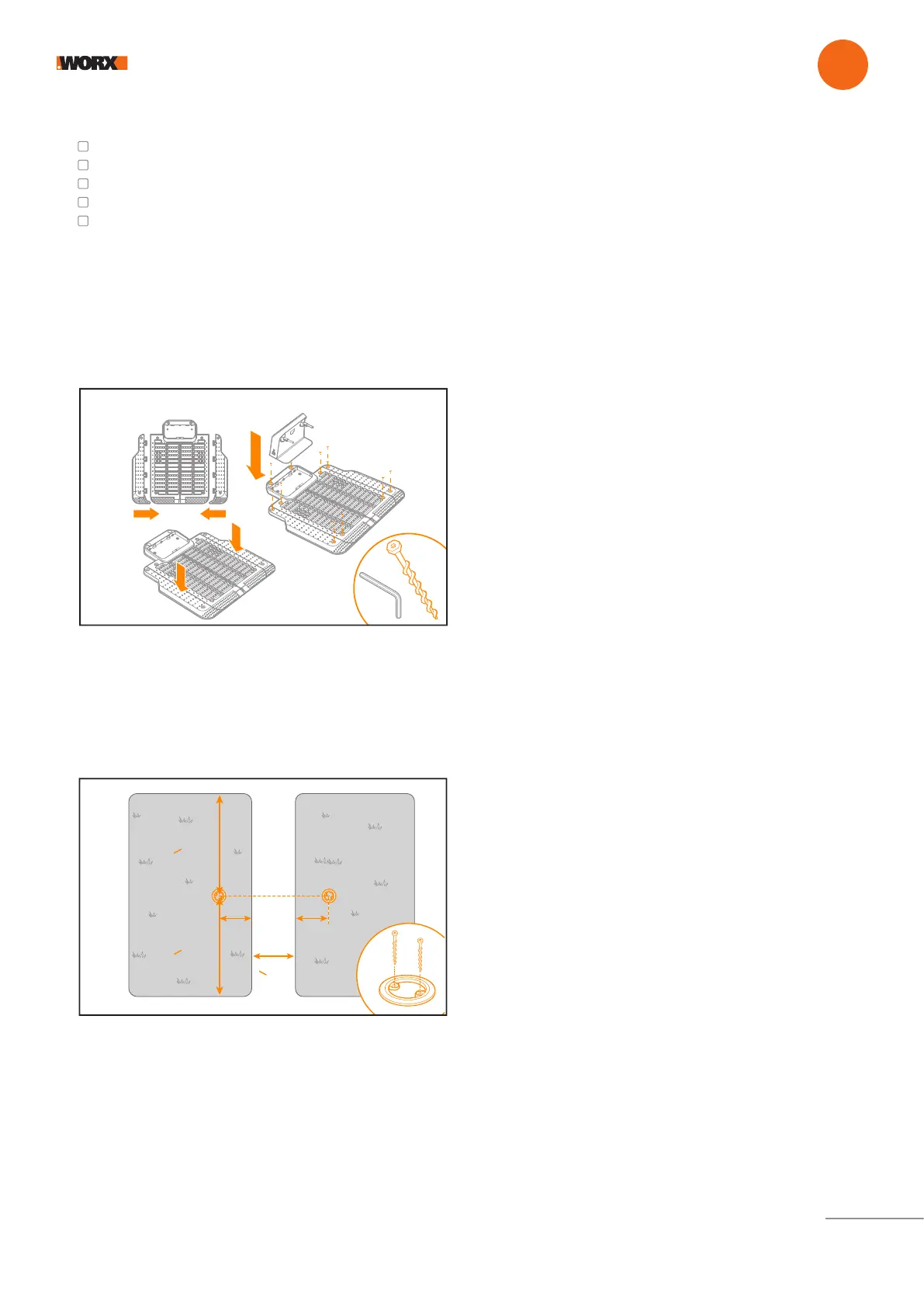

2.3 Fix the charging base in the selected location
• Compose the charging base plate, flatten and tighten the conjunction. (See Fig. 24)
• Insert charging tower into charging base plate. Then fix the charging base to the ground by means of the supplied screws,
using the supplied hex key. (See Fig. 24)
• If you position the base on hard surface, fix it with plug and screw fixings.
NOTE: It is recommended to assemble the charging base on a flat and hard surface.
3. INSTALL THE RFID (See Fig. 25)
• The distance from the centre of the RFID to the front and rear lawn boundaries needs to be greater than 1.5 m.
• Make sure the center of the RFID is 50-60 cm away from the lawn edge, fix the RFID with 2 screws.
• Put another RFID symmetrically in the opposite zone and fix it.
5-15cm
5-15cm
＞
2m
＞
2m
＞
1.5m
50-60cm50-60cm
>
1.5m
>
1.5m
<
6m
1 1
2
2
3
24
50-60cm50-60cm
>
1.5m
>
1.5m
<
6m
1 1
2
2
3
32cm
32cm
32cm
>
1m
5-15cm
＞
2m
25
