2-S6
M108S, WSM
CLUTCH
(2) PTO Clutch

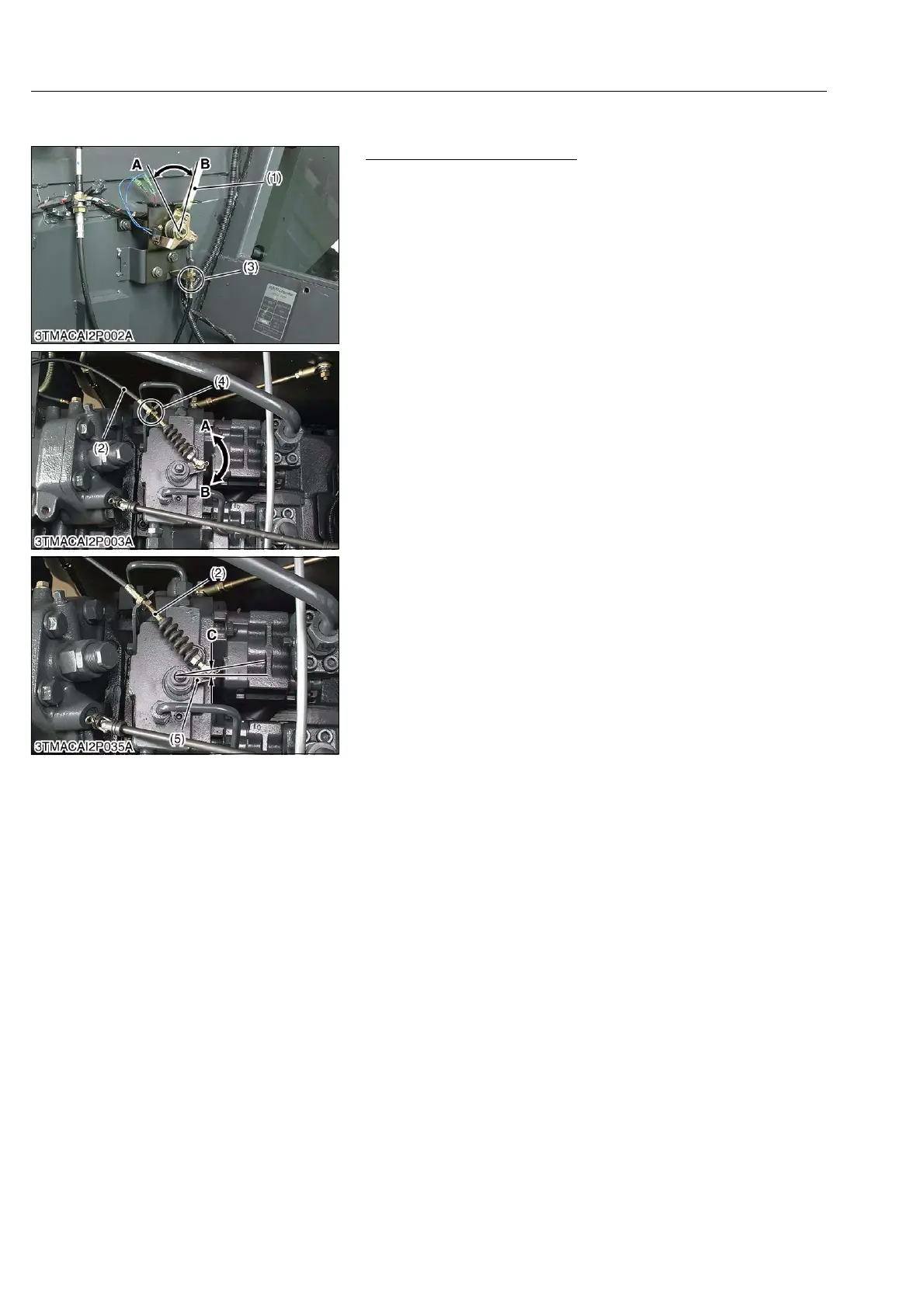

PTO Clutch Lever Movement
1. Stop the engine and remove the key.
2. Check the PTO clutch lever (1) on the “Engage” and
“Disengage” position of PTO clutch lever guide.
3. If the adjustment is needed, loosen the lock nuts (3) and adjust
the clutch control cable (2) length.
4. Retighten the lock nuts (3) firmly.
• Do not connect the universal joint of the implement to the
tractor PTO shaft while testing.
• The clutch control cable (2) is fixed at center of the screw
with lock nut (3) at PTO clutch lever side.
• Install the clutch control cable (2) with PTO valve lever (5)
pulled C by 3.0 to 5.0 mm (0.12 to 0.19 in.).
• The movement of PTO lever is adjusted with lock nut (4) of
the clutch control cable at the valve side.
W1013155
(1) PTO Clutch Lever
(2) Clutch Control Cable
(3) Lock Nut
(4) Lock Nut
(5) PTO Valve Lever
A : Engage
B : Disengage
C : Pull
To Next Page
