G-68
M108S, WSM
G GENERAL
(2) Rear Wheel

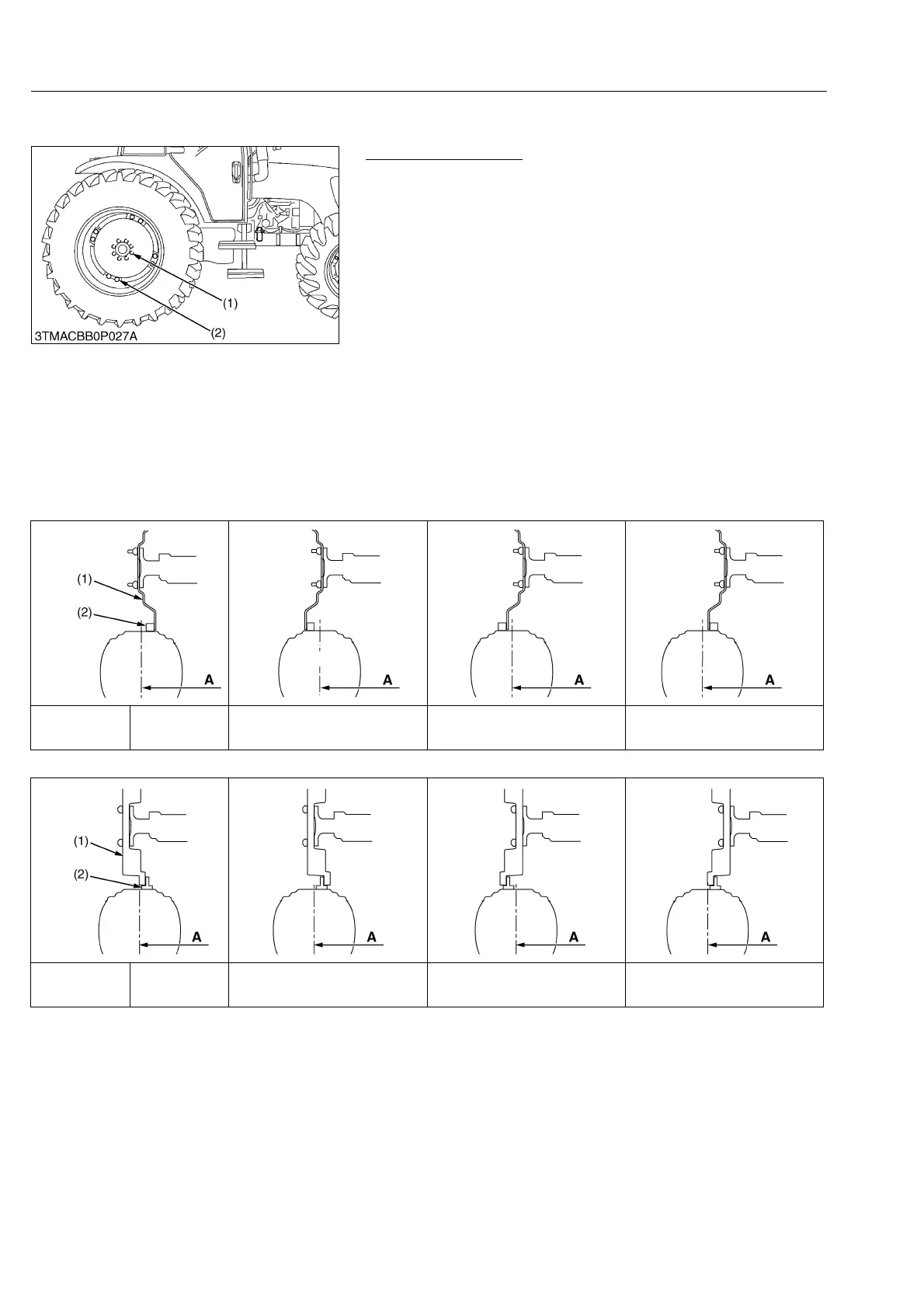

Adjusting Rear Tread
Rear tread width can be adjusted as shown with the standard
equipped tires.
To change the tread width.
1. Remove the wheel rim and / or disc mounting bolts.
2. Change the position of the rim and / or disc (right and left) to the
desired position, and tighten the bolts.
• Always attach tires as shown in the drawings.
• If not attached as illustrated, transmission parts may be
damaged.
• When re-fitting or adjusting a wheel, tighten the bolts to the
following torques then recheck after driving the tractor 200
m (200 yards) and thereafter according to service interval.
Refer to “[3] CHECK POINTS OF EVERY 50 HOURS” in this
section.
W1057789
[Steel disc]
[Cast iron disc]
(1) Rear Wheel Disc (2) Rear Wheel Rim A :Tread
(1) Rim Disc Nut (2) Wheel Nut
460 / 85R34
(18.4R34)
1560 mm
(61.42 in.)
1755 mm
(69.09 in.)
1850 mm
(72.83 in.)
1860 mm
(73.23 in.)
460 / 85R34
(18.4R34)
1505 mm
(59.25 in.)
1665 mm
(65.55 in.)
1705 mm
(67.13 in.)
1865 mm
(73.43 in.)
To Next Page
