wsm M108S User Manual

10-S47
M108S, WSM
CABIN

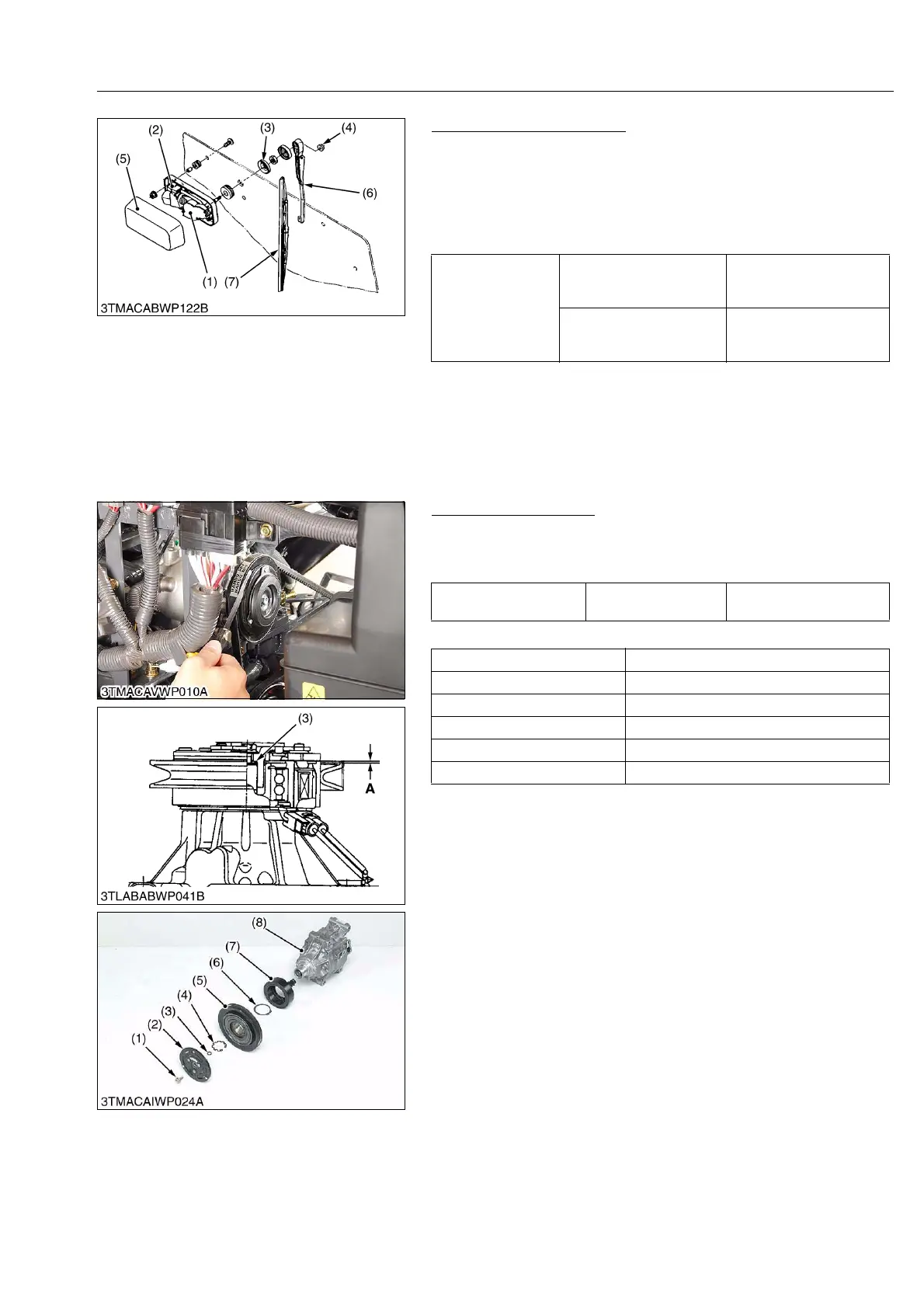

Rear Wiper Motor (Option)
1. Remove the wiper motor cover (5).
2. Disconnect the rear wiper motor 4P connector (2).
3. Remove the wiper arm mounting nut (4) and wiper arm (6).
4. Remove the wiper link cap (3) and nut.
5. Remove the rear wiper motor mounting screws, then take out the
rear wiper motor (1).
W1031819
[3] SERVICING
Adjustment of Air-gap
1. Measure the air-gap with a feeler gauge.
2. When the measurement value comes off from factory
specification, adjustment shim (3) is added or deleted.
(Reference)
W1060178
Tightening torque
Wiper arm mounting nut
7.9 to 9.3 N·m
0.80 to 0.95 kgf·m
5.8 to 6.8 lbf·ft
Wiper motor mounting
screw
7.9 to 9.3 N·m
0.80 to 0.95 kgf·m
5.8 to 6.8 lbf·ft
(1) Rear Wiper Motor
(2) Rear Wiper Motor 4P Connector
(3) Wiper Link Cap
(4) Nut
(5) Wiper Motor Cover
(6) Wiper Arm
(7) Wiper Blade
Air-gap (A) Factory spec.
0.20 to 0.45 mm
0.0079 to 0.0177 in.
Adjusting Shim Size Code No.
0.10 mm (0.0039 in.) T1065-87340
0.15 mm (0.0059 in.) T1065-87350
0.40 mm (0.016 in.) T1065-87360
0.60 mm (0.024 in.) T1065-87370
1.0 mm (0.0394 in.) T1065-87380
(1) Magnet Clutch Mounting Screw
(2) Hub Plate
(3) Shim
(4) External Snap Ring
(5) Rotor
(6) External Snap Ring
(7) Stator
(8) Compressor Body
A : Air-Gap
KiSC issued 05, 2012 A
