G-56
M108S, WSM
G GENERAL

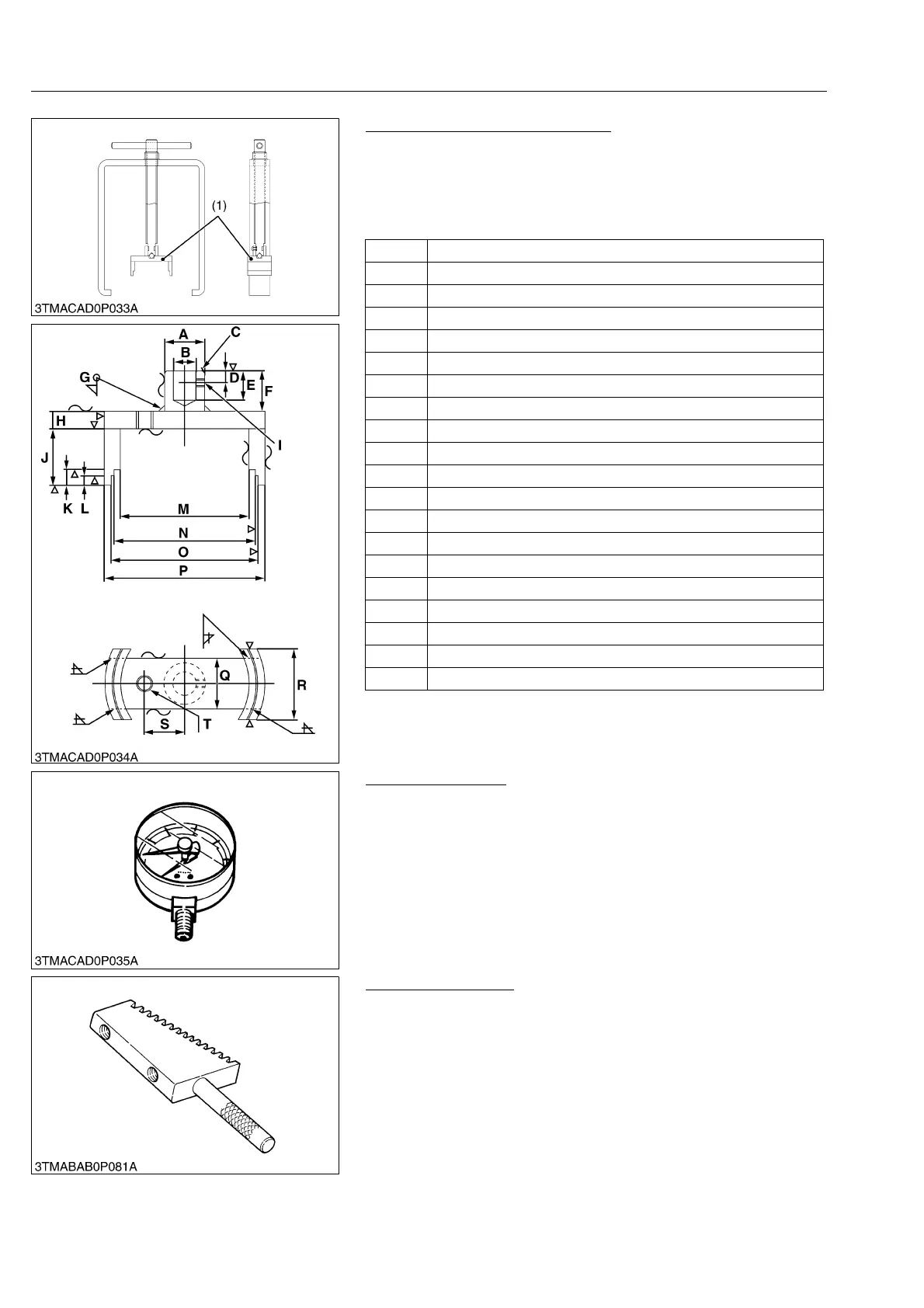

Shuttle Clutch Compression Tool
Code No. : 07916-55031
Application : Use exclusively for pushing the thrust collar, remove
the external snap ring.
• Replace the center guide (1) for shown in figure.
W1020107
Pressure Gauge 50
Code No. : 07916-52961
Application : This pressure gauge is used to measure the low oil
pressure.
W10518650
Pinion Locking Tool
Code No. : 07916-52311
Application : Use for preventing the shaft from turning when
removing the staking nut from the counter shaft and
spiral bevel pinion shaft.
W10445520
A 20.0 mm dia. (0.787 in. dia.)
B 11.5 mm dia. (0.453 in. dia.)
C Chamfer 1.0 mm (0.039 in.)
D 6.0 mm (0.24 in.)
E 15.0 mm (0.591 in.)
F 20.0 mm (0.787 in.)
G Weld all around
H 6.0 mm (0.24 in.)
I M4 × 0.7
J 28 mm (1.1 in.)
K 8.0 mm (0.31 in.)
L 5 mm (0.2 in.)
M 64.0 mm dia. (2.52 in. dia.)
N 70.5 mm dia. (2.78 in. dia.)
O 73.0 mm dia. (2.87 in. dia.)
P 80.0 mm dia. (3.15 in. dia.)
Q 25.0 mm (0.984 in.)
R 35.0 mm (1.38 in.)
S 20.0 mm (0.787 in.)
T M8 × 1.25
(1) Center Guide
To Next Page
