Basic Installation Procedures
16 Freedom XC Owner's Guide
Step 1: Designing the Installation
Most Freedom XC installations share common components, and
some of these are briefly described in Step 1: Designing the
Installation.
Figure 5 shows some components and their relationship to each
other in a typical recreational vehicle or fleet vehicle installation.
Also, see "Marine Installation" on page41.
1 Equipment ground
2 Freedom XC
3 DC fuse/disconnect/DC circuit breaker
4 12V deep cycle battery [house]
5 Battery isolator
6 Alternator
7 To engine
8 Equipment ground
9 Starting battery
10 AC load panel
11 AC source panel
12 Selector switch
13 Shore power
14 Generator

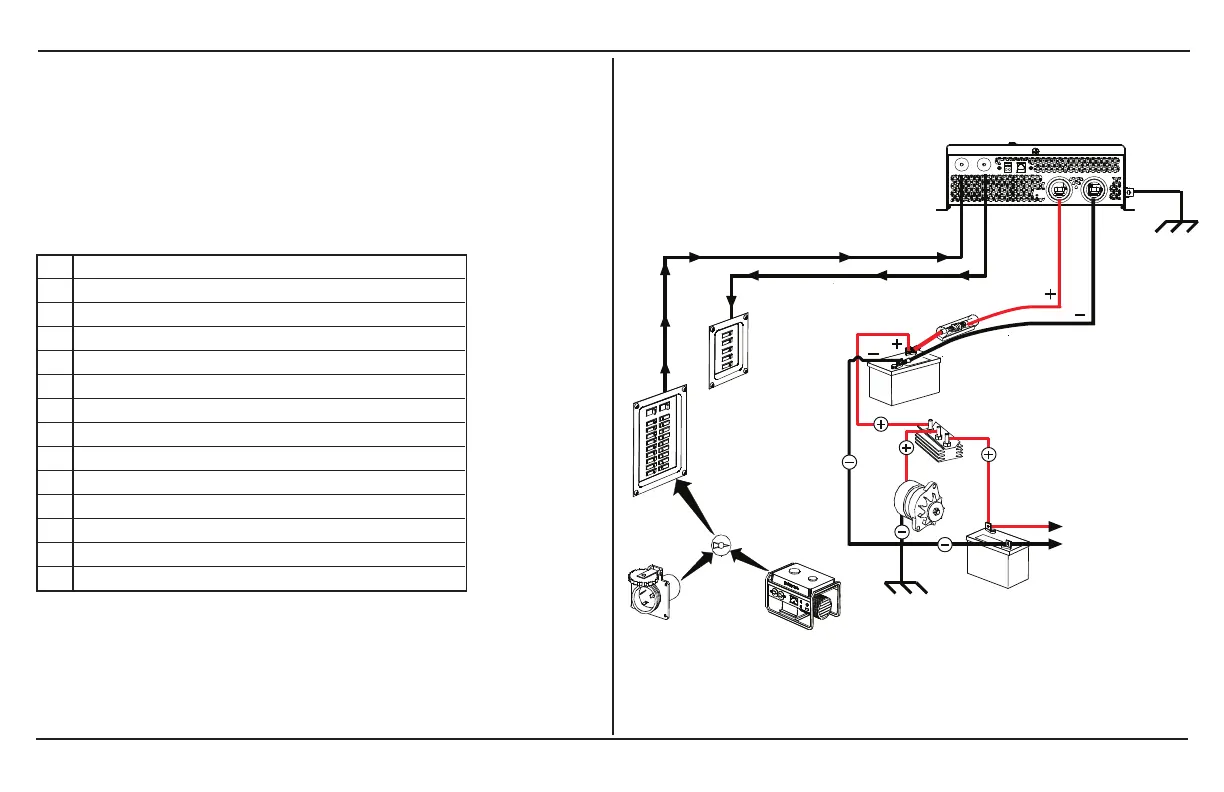

Figure 5 Typical Recreational Vehicle and Fleet Vehicle
Installation
10
13
11
12
2
4
3
8
9
7
14
6
5
1
