Display Panel
10 Freedom XC Owner's Guide
Display Panel
OUTPUTBATTLOAD
kW
100%
25%
Hz
VA
%
kW
Hz
VA
%
C
INPUTBATTTEMP
AC
BYPASS
ERROR
OVERLOAD
CHARGING
888 888
88
1
2 3 4
5

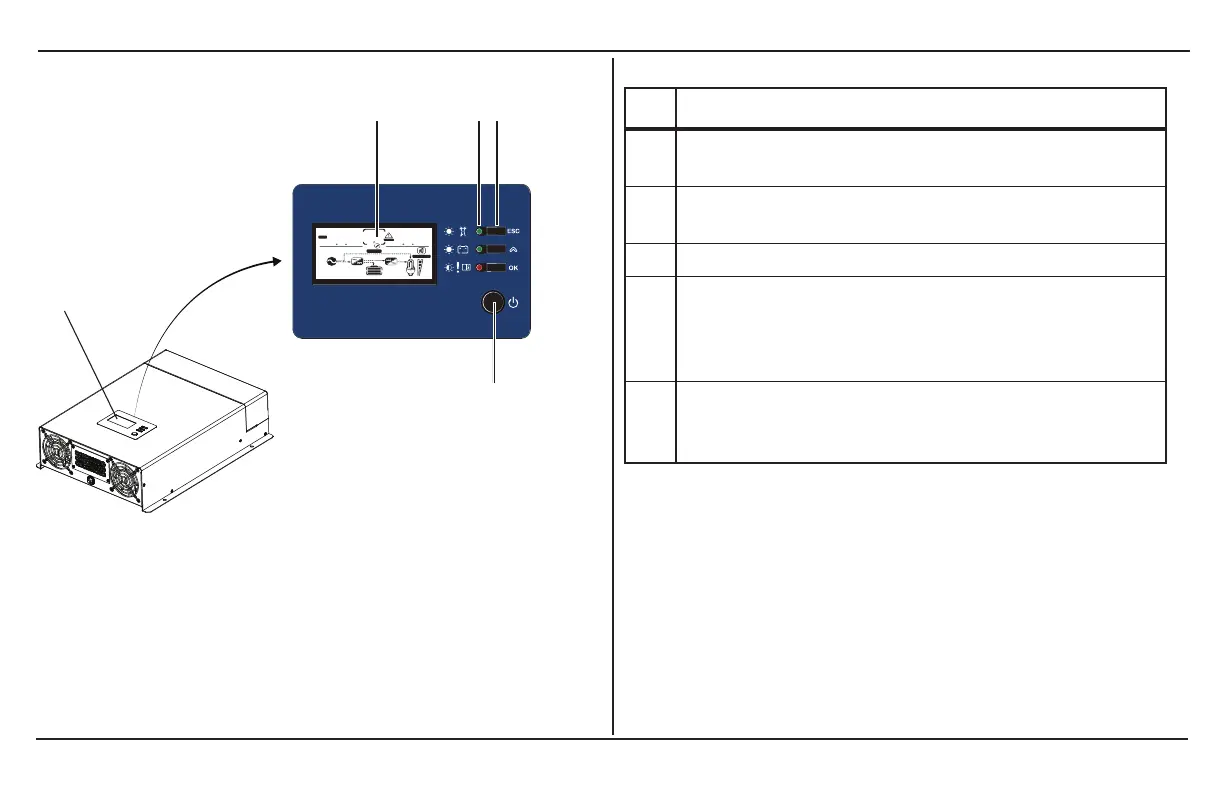

Figure 3 Display Panel
Item Description
1
Display panel displays status information on the screen. It
is comprised of a display screen, LEDs, and buttons.
2
Multi-function LCD screen shows status information and
error codes.
3 Status LEDs indicate the mode of operation.
4
Three function buttons change status information
displayed on the screen. Also, changes inverter/charger
settings. See Freedom XCDisplay Panel on page 44 for
detailed information on the panel’s buttons.
5
Power[Standby]button is pressed for turning on the unit.
The inverter turns on for the loads and when applicable,
the charger turns on automatically.
Table 2Display Panel Features
