AC/DC and GFCI Panel
8 Freedom XC Owner's Guide
AC/DC and GFCI Panel
6
321
7
14 13
12
13
8
11
910
4
5
5
12

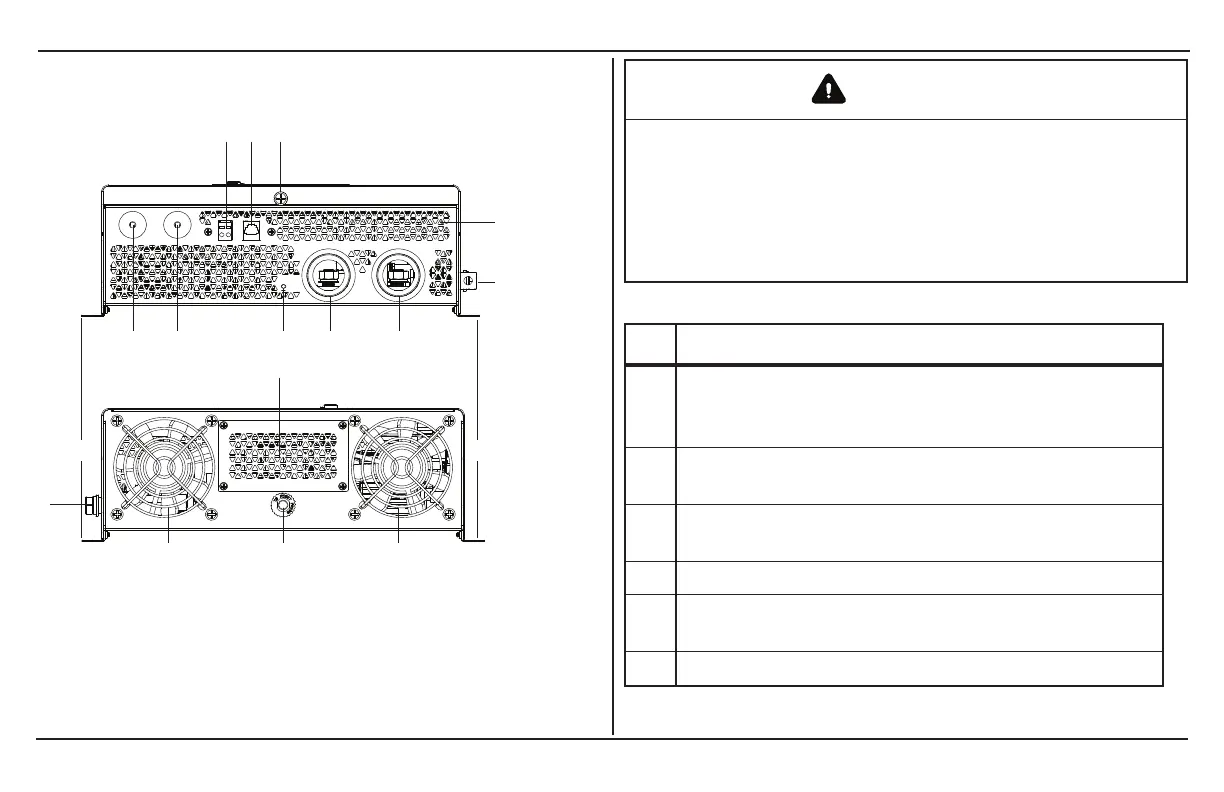

Figure 2 AC/DC and GFCI Panel
WARNING
ELECTRICAL SHOCK HAZARD
Use a torque screwdriver to tighten the captive nut panel screw to
5in-lb (0.56N-m) torque of force to ensure a proper ground
connection and a required tool access to the wiring compartment.
Failure to follow these instructions can result in death, serious
injury, or equipment damage.
Item Description
1
ACC input terminal for connecting ignition control wiring.
Ignition Control Switch (ACC) for connecting [ON (|)] and
disconnecting [OFF (O)] the ignition signal.
2
Remote port allows you to connect an accessory remote
control/display device.
3
Captive nut panel screw holds the wiring compartment
cover in place. See WARNING above.
4 Ventilation grille (openings) must not be obstructed.
5
Grounding lug provides a ground path for the Freedom
XC chassis to the DC system ground. See WARNING.
6 DC terminal opening for routing (–) negative DC cable.
Table 1AC/DC and GFCI Panel Features
