Xantrex Freedom XC PRO 3000

Basic Installation Procedures
975-0799-01-01 17
Step 1: Designing the Installation
Most Freedom XC PRO installations share common components,
and some of these are briefly described in Step 1: Designing the
Installation.
Figure 5 shows some components and their relationship to each
other in a typical recreational vehicle or fleet vehicle installation.
Also, see "Marine Installation" on page46.
1 20-pin harness accessory
2 Equipment ground
3 Freedom XC PRO
4 DC fuse/disconnect/DC circuit breaker
5 12V deep cycle battery
6 Battery isolator
7 Alternator
8 To engine
9 Equipment ground
10 Starting battery
11 AC load panel
12 AC source panel
13 Selector switch
14 Shore power
15 Generator

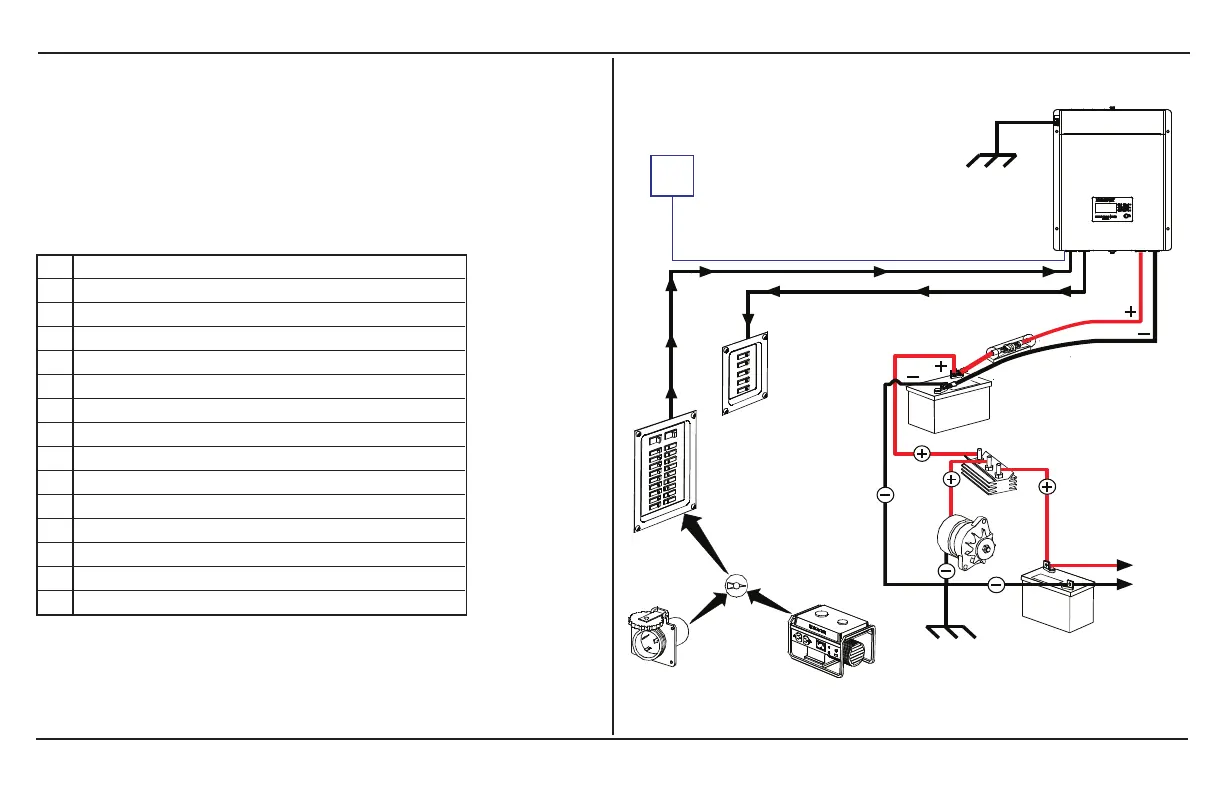

Figure 5 Typical Recreational Vehicle and Fleet Vehicle
Installation
