Operating During Transition Between Grid Mode and Battery Mode
66 Freedom XC PRO Owner's Guide
Viewing Information During Battery
Mode
The LCD screen displays information related to battery mode
operation.
l
Press the Scroll button to move from screen to screen.
Press and hold for three seconds to go back one step.

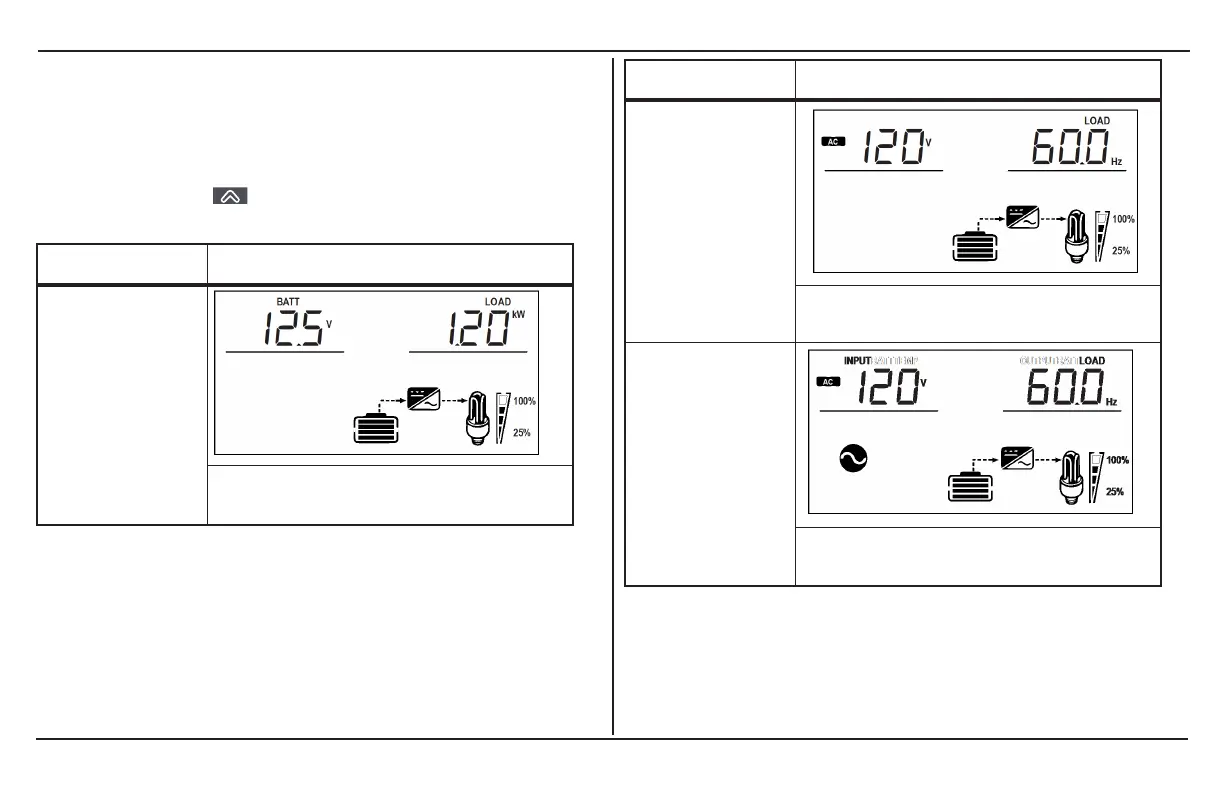

Info and Setting LCD Screen
Screen 1 of 4 -
Battery
Voltage/Load
Wattage
This is the home
screen.
battery voltage = 12.5V, AC load =
1.2kW
Info and Setting LCD Screen
Screen 2 of 4 -
AC Output
Voltage/Frequency
output voltage = 120V, output frequency=
60Hz
Screen 3 of 4 -
AC Input
Voltage/Frequency
Screen shows up
when utility AC is
connected.
input voltage = 120V, input frequency =
60Hz
To Next Page
