Xantrex Freedom XC PRO 3000

Marine Installation
46 Freedom XC PRO Owner's Guide
Marine Installation

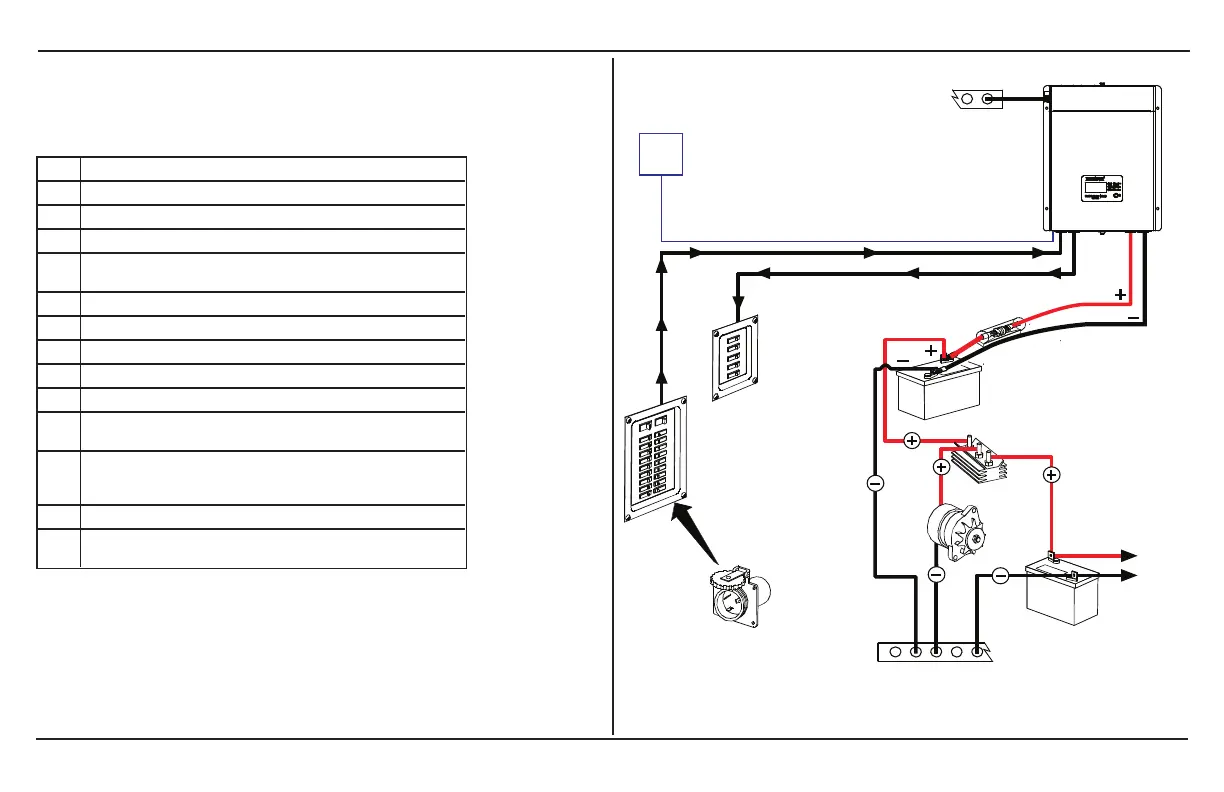

Figure 20 illustrates a typical marine installation with the following
components:
1 20-pin harness accessory
2 Equipment ground – Engine negative bus / DC ground bus
3 Freedom XC PRO
4 DC fuse/disconnect/DC circuit breaker
5
12V deep cycle battery bank and protected by a DC fuse in the positive
cable
6 Battery isolator
7 DC alternator
8 To engine
9 Equipment ground – Engine negative bus / DC ground bus
10 Starting battery
11
AC load panel with branch circuit breakers that supply only loads that run
off the Freedom XC PRO
12
AC source panel that includes a max 30A (Freedom XC PRO 2000), 50A
(Freedom XC PRO 3000), or a 20A (if using a GFCI) circuit breaker that
supplies the Freedom XC PRO
13 Shore power – AC power supplied from a shore power connector
Not
shown
Drip shield (see next page)
Figure 20 Typical Marine Installation
