Freedom XC PRODisplay Panel
52 Freedom XC PRO Owner's Guide
5 alarm off indicator
6 load power level indicator
7 load indicator
8 battery level indicator
9 mode indicator

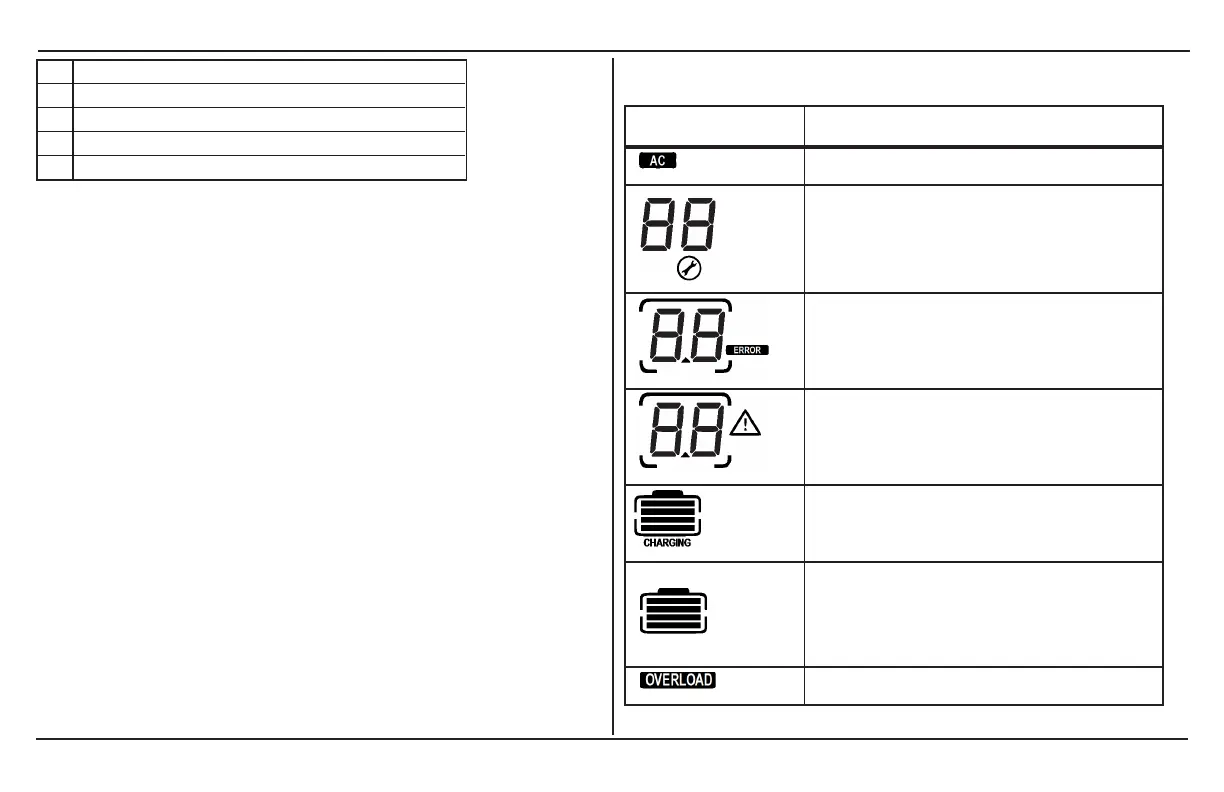

LCD Screen Icons
Icon Definition
AC input and output indicator.
The wrench icon underneath a number is
displayed during configuration mode.
An error event with its corresponding
number is displayed here.
A warning event with its corresponding
number is displayed here.
The charging indicator is displayed when
the unit is in charger mode.
The battery icon indicates remaining
battery power. One bar = 1-25%, two bars
= 25-50%, three bars = 50-75%, and four
bars = 75-100%.
Shows an overload condition.
