FreeFlow Scanner 665E Operator Manual
1-5
1. Overview
Document Glass
Raise the entire ADF and Document Glass Cover Assembly to
access the Document Glass.
The Document Glass provides a 12 x 18 inch (304.8 mm x 457.2
mm) scanning area and has standard and book registration
guides. Scan directly from the Document Glass if you are
scanning an image on photographic paper or you are scanning a
delicate or damaged document.
SCSI Connection
SCSI stands for Small Computer System Interface. It is
pronounced 'scuzzy,'
SCSI is the protocol that lets your PC communicate with the Xerox
Scanner. When using a SCSI peripheral device (the scanner),
you must first power on the peripheral device (scanner) before
powering on the PC. Wait for the scanner to complete its
calibration sequence and for the status LED (green) to light before
powering on the PC.
The SCSI connection is located on the middle of the rear panel.
The scanner requires a dedicated SCSI connection.

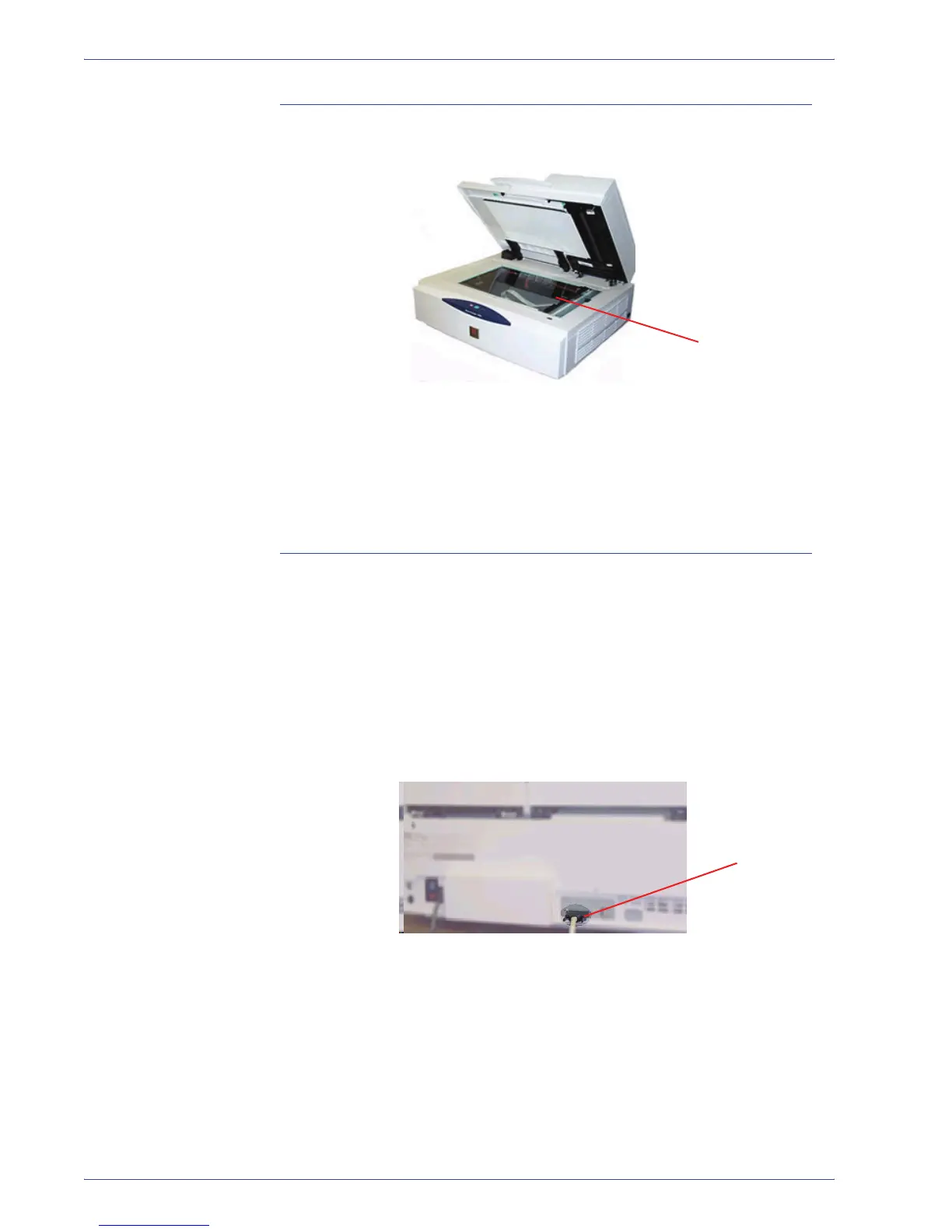

Document glass
SCSI connection
