Xerox Phaser 3155 Service Manual

8-36 Phaser 3140/3155/3160 Printer Service Manual
Service Parts Disassembly

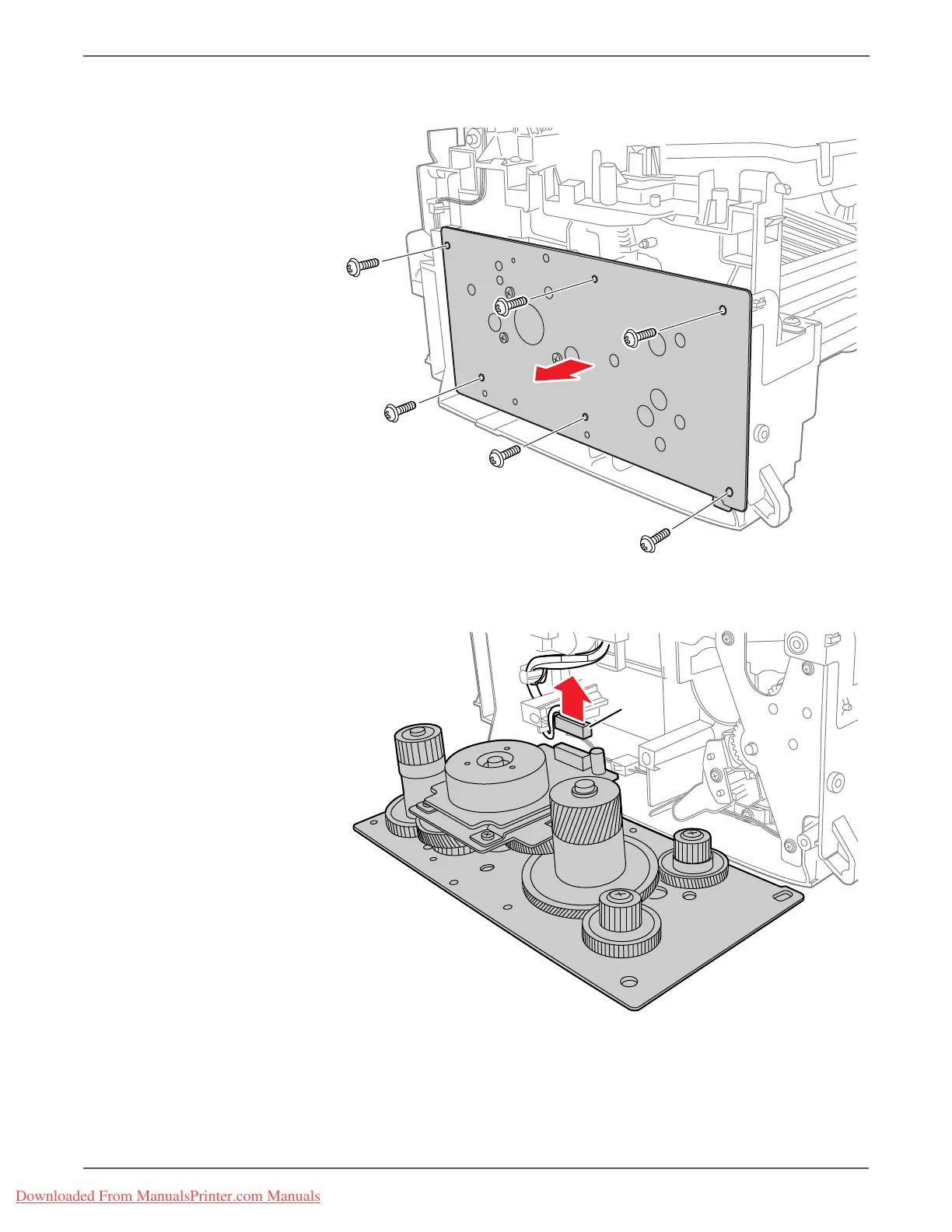

2. Remove 6 screws (10 mm, silver) that secure the Drive Assembly.
3. Disconnect the Drive Assembly wiring harness connector CN1 and remove the
Drive Assembly.
Replacement Note
The Drive Assembly bracket and Engine Shield are numbered to show the
order that the screws should be installed during installation. Start all 6 screws
in the order listed, and then tighten them in the same order.
When installed on the printer, the numbers on the bracket are upside down.
s3160-026
1
2
3
4
5
6
s3160-027
CN1
Downloaded From ManualsPrinter.com Manuals

Xerox Phaser 3155 Specifications

General

Color	No
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	8 s
Print speed (black, normal quality, A4/US Letter)	24 ppm
Internal memory	8 MB
Maximum internal memory	- MB
Total input capacity	250 sheets
Total output capacity	80 sheets
Maximum duty cycle	12000 pages per month
Page description languages	GDI
Maximum print size	210 x 297 mm
Media weight (tray 1)	60 - 163 gsm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 105 g/m²
Custom media sizes	76 x 127 mm - 216 x 356 mm
Compatible operating systems	Windows 2000/XP/2003 Server/2008 Server, Vista, Mac OSX 10.3-10.6, Linux OS
Sustainability certificates	ENERGY STAR
Power consumption (standby)	60 W
Power consumption (printing)	360 W
Display	-

Weight and Dimensions

Dimensions (WxDxH)	360 x 389 x 230 mm
