5-24 Phaser 3140/3155/3160 Printer Service Manual
Print-Quality Troubleshooting
Skew
The printed image is not parallel with both sides of the paper.
Initial Actions
• Determine where the skew is introduced (Tray, Fuser)
• Check for debris in the media path or on the rollers.
5 Print the Supplies Information
Report (page 4-2) and check the
Transfer Roller life.
Is the Transfer Roller life expired?
Replace the
Transfer Roller
(page 8-8).
Complete.

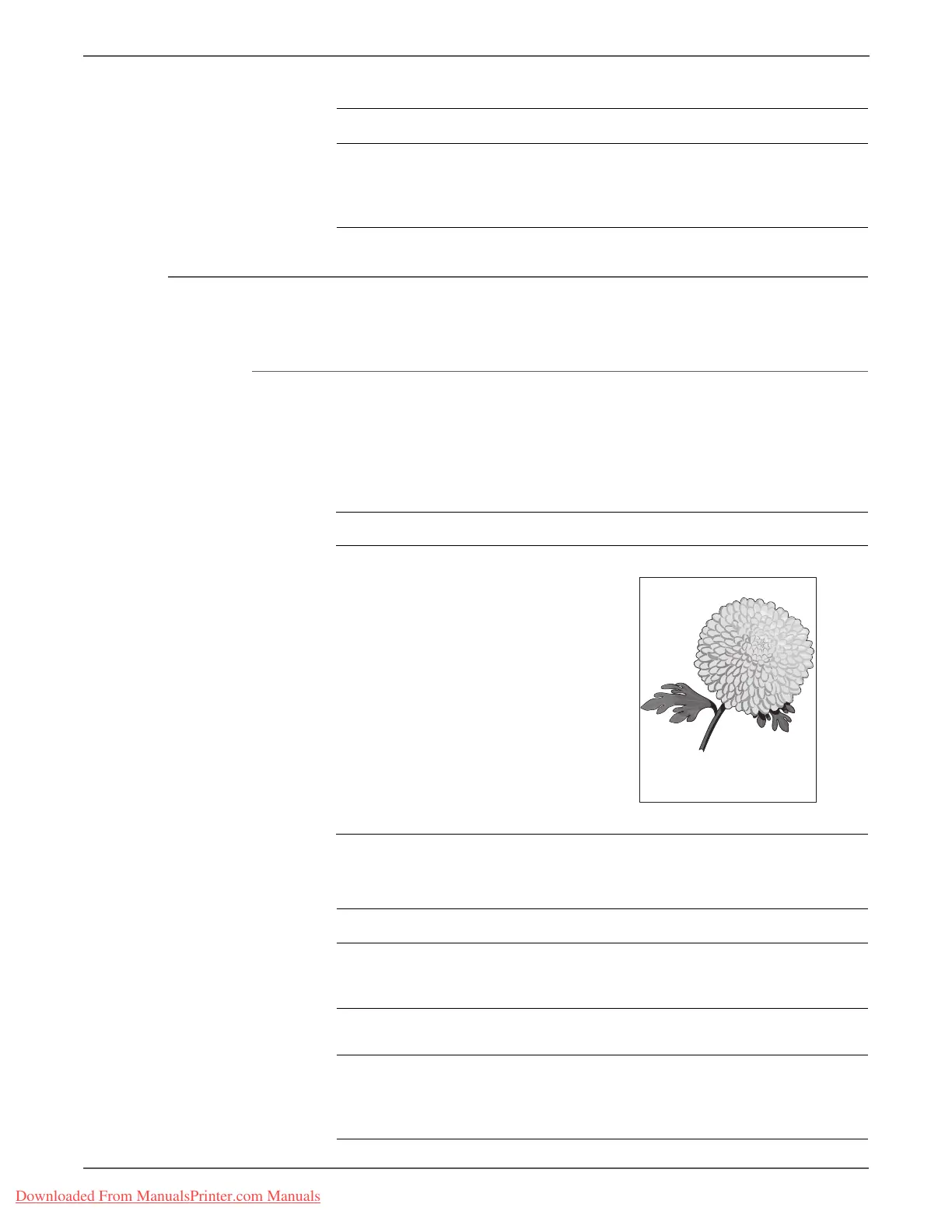

Troubleshooting Reference Table
Applicable Notes Example Print
■ Transfer Roller, PL1.0.8
■ Pick Up Roller, PL8.0
■ Holder Pad, PL10.0.11
Troubleshooting Procedure Table
Step Action and Questions Yes No
1 Check media condition.
Is the media dry, recommended
type, and loaded correctly?
Go to step 2. Replace the
media.
2 Open and close the Rear Cover.
Does the error still occur?
Go to step 3. Complete.
3 Check the Transfer Roller.
Is the surface clean and smooth?
Go to step 4. Clean or
replace the
Transfer Roller
(page 8-8).
Troubleshooting Procedure Table (Continued)
Step Actions and Questions Yes No
Skew 2
Downloaded From ManualsPrinter.com Manuals

Xerox Phaser 3155 Specifications

General

Color	No
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	8 s
Print speed (black, normal quality, A4/US Letter)	24 ppm
Internal memory	8 MB
Maximum internal memory	- MB
Total input capacity	250 sheets
Total output capacity	80 sheets
Maximum duty cycle	12000 pages per month
Page description languages	GDI
Maximum print size	210 x 297 mm
Media weight (tray 1)	60 - 163 gsm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 105 g/m²
Custom media sizes	76 x 127 mm - 216 x 356 mm
Compatible operating systems	Windows 2000/XP/2003 Server/2008 Server, Vista, Mac OSX 10.3-10.6, Linux OS
Sustainability certificates	ENERGY STAR
Power consumption (standby)	60 W
Power consumption (printing)	360 W
Display	-

Weight and Dimensions

Dimensions (WxDxH)	360 x 389 x 230 mm
