Phaser 3140/3155/3160 Printer Service Manual 8-59
Service Parts Disassembly
Solenoids and Sensors
Manual Feed Solenoid
PL6.0.19
1. Remove the Drive Assembly (page 8-35).
2. Disconnect the black and gray wiring harness connector CN22.

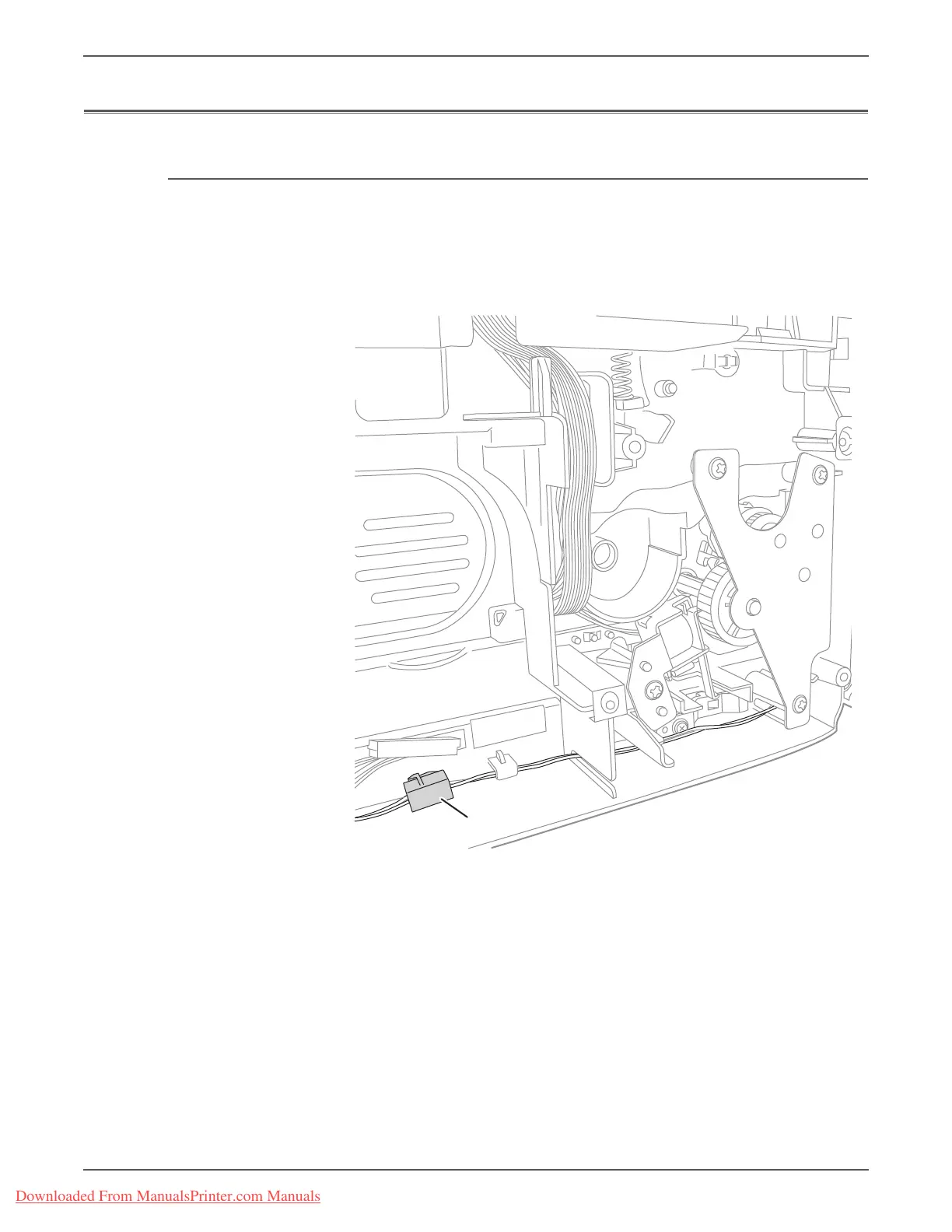

CN22
s3160-130
