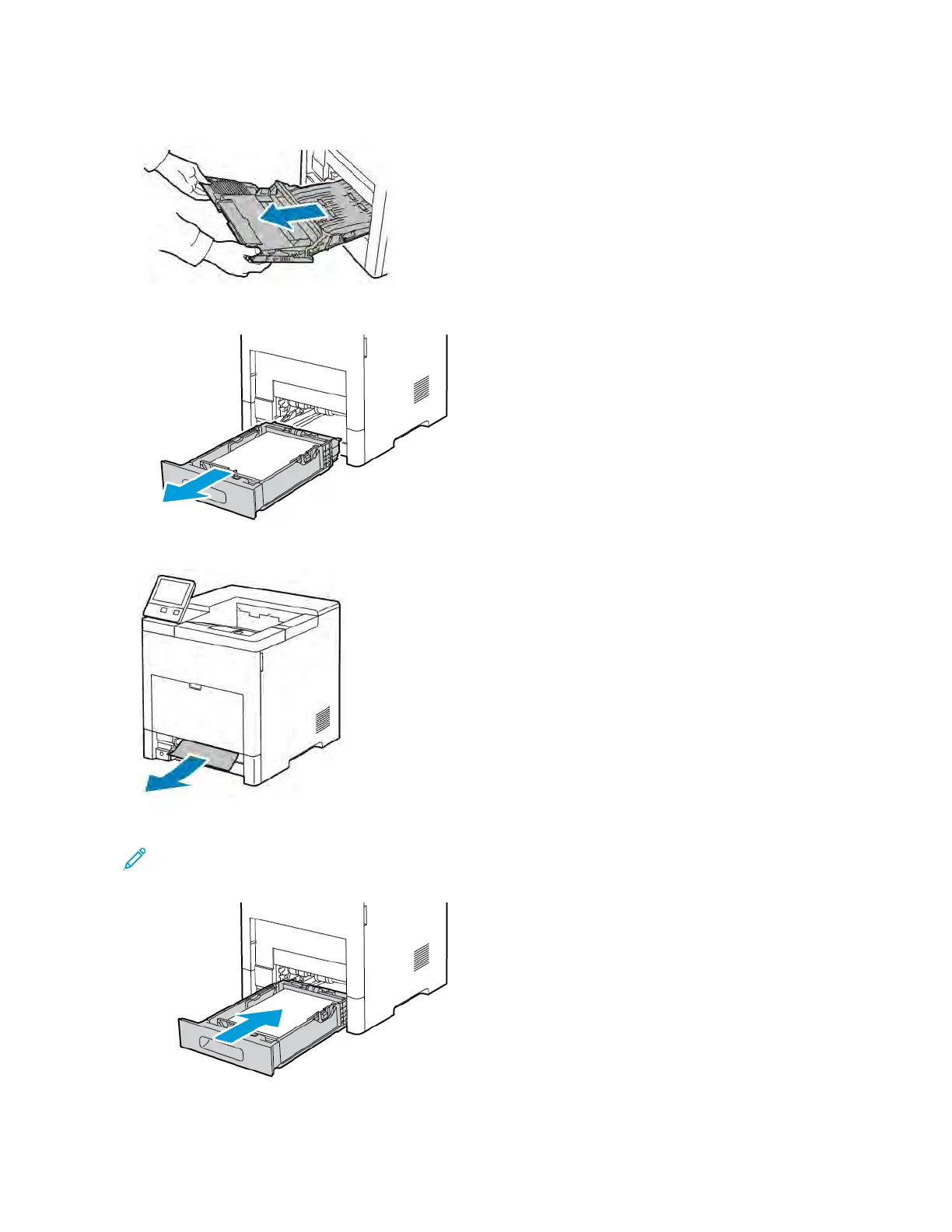

2. Grasp both sides of the Bypass Tray, then pull it straight out of the printer.
3. Remove Tray 1 from the printer.
4. Remove the jammed paper.
5. Insert Tray 1 into the printer, then push it all the way in.
Note: If the tray is extended for legal-size paper, the tray protrudes when it is inserted into the printer. If
removed in a previous step, replace the tray cover.
Xerox
®
VersaLink
®
B600/B610 Printer User Guide 157
Troubleshooting
