Maintenance
Xerox
®
WorkCentre
®
EC7836/EC7856 Color Multifunction Printer 209
User Guide

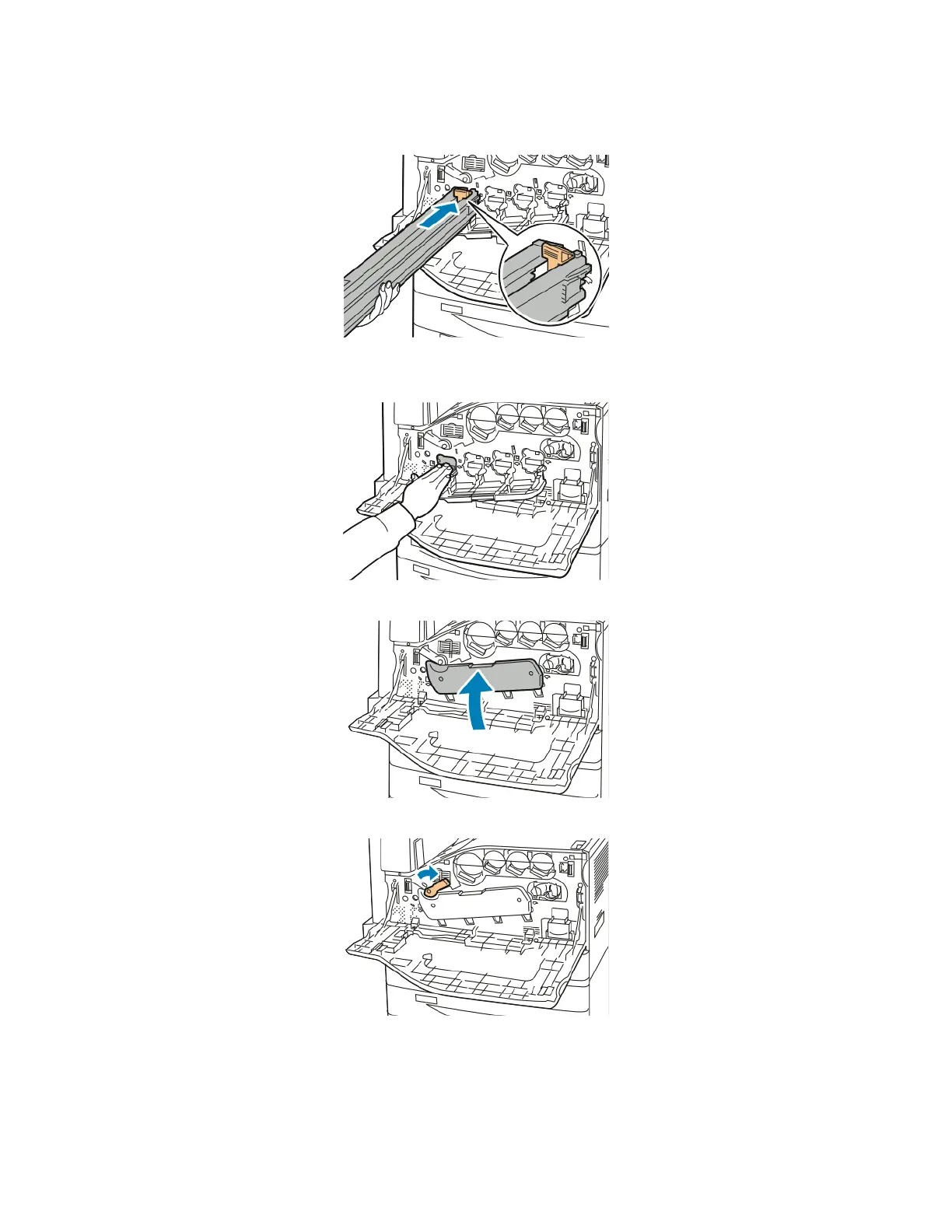

10. Continue to push the orange handle until it stops.
11. Carefully remove the protective shield.
12. Push the drum cartridge until it stops.
13. Close the drum cartridge cover.
14. To return the belt tension lever to the locked position, turn it to the right.
15. Close the printer front cover.
16. Dispose of the protective shield and tape as normal office waste.
