Parts of the Printer
This section includes:
• Left Front View ...................................................................................................................................... 22
• Left Rear View........................................................................................................................................ 23
• Internal Components ............................................................................................................................. 23
• Document Feeder .................................................................................................................................. 24
• Control Panel ......................................................................................................................................... 24
• Office Finisher LX ................................................................................................................................... 26
•
Wireless Network Adapter .................................................................................................................... 26

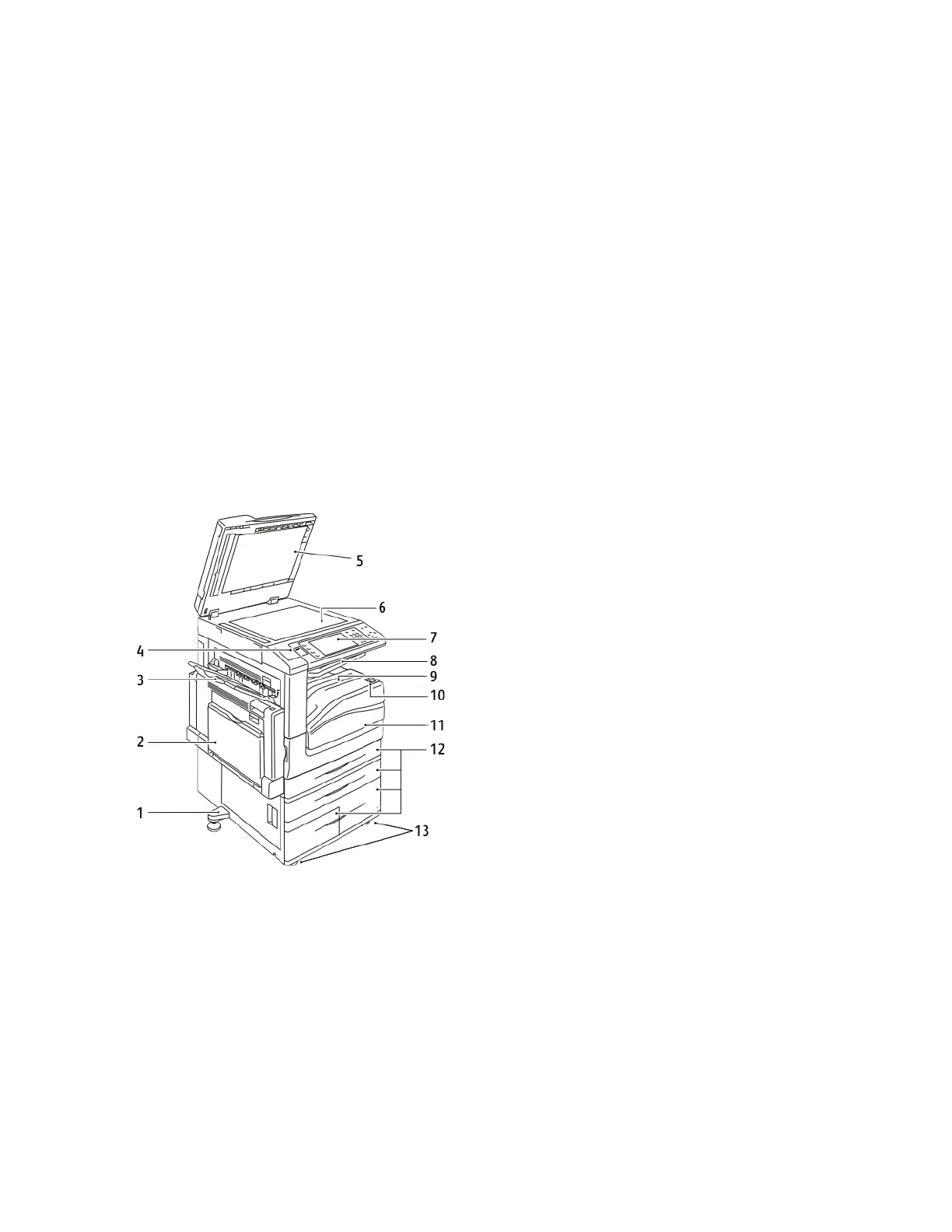

Left Front View
1. Leveler Foot
2. Tray 5
3. Left Tray
4. USB Port
5. Document Cover
6. Document Glass
7. Control Panel
8. Center Output Tray
9. Center Bottom Tray
10. Secondary Power Switch
11. Front Door
12. Trays 1–4
13. Locking Casters
