Xerox WorkCentre EC7856

Maintenance
214 Xerox
®
WorkCentre
®
EC7836/EC7856 Color Multifunction Printer
User Guide
4. Remove the new transfer roller from the packaging. Retain the packaging.

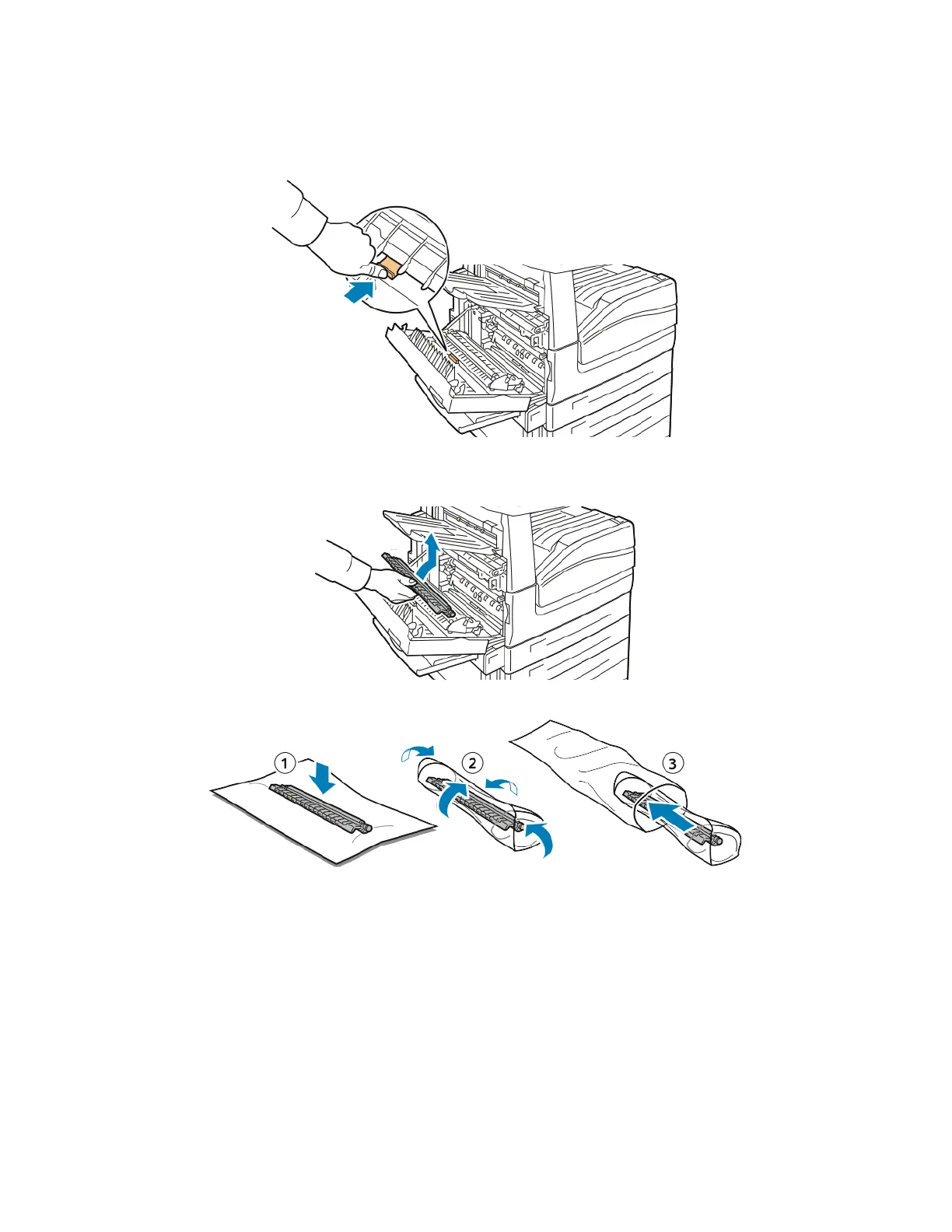

5. Push the orange lever in the direction shown.
6. Lift the used transfer roller out of the printer.
Note: Do not touch any toner adhering to the transfer roller.
7. Place the used transfer roller in the plastic bag.
