4. Open the left tray as shown.

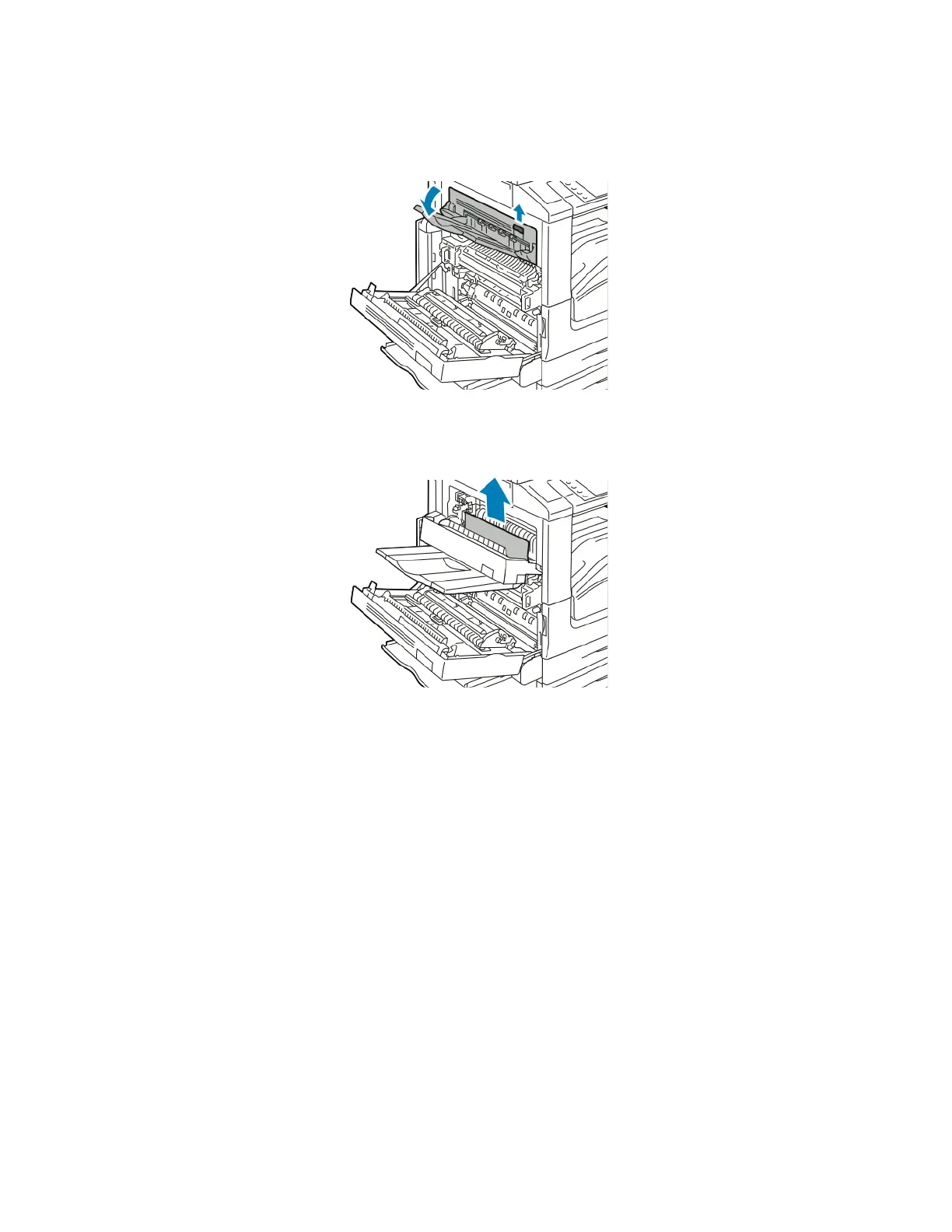

5. Lift the lever up to open door D.
6. Remove the jammed paper as shown.
Note: If the paper is torn, remove all torn pieces from the printer.
7. Close door D.
8. Close door A, then close tray 5.
