Xerox WorkCentre PE16 Service Manual

4-12
Summary of Product
WorkCentre PE16July 2003
Service Manual

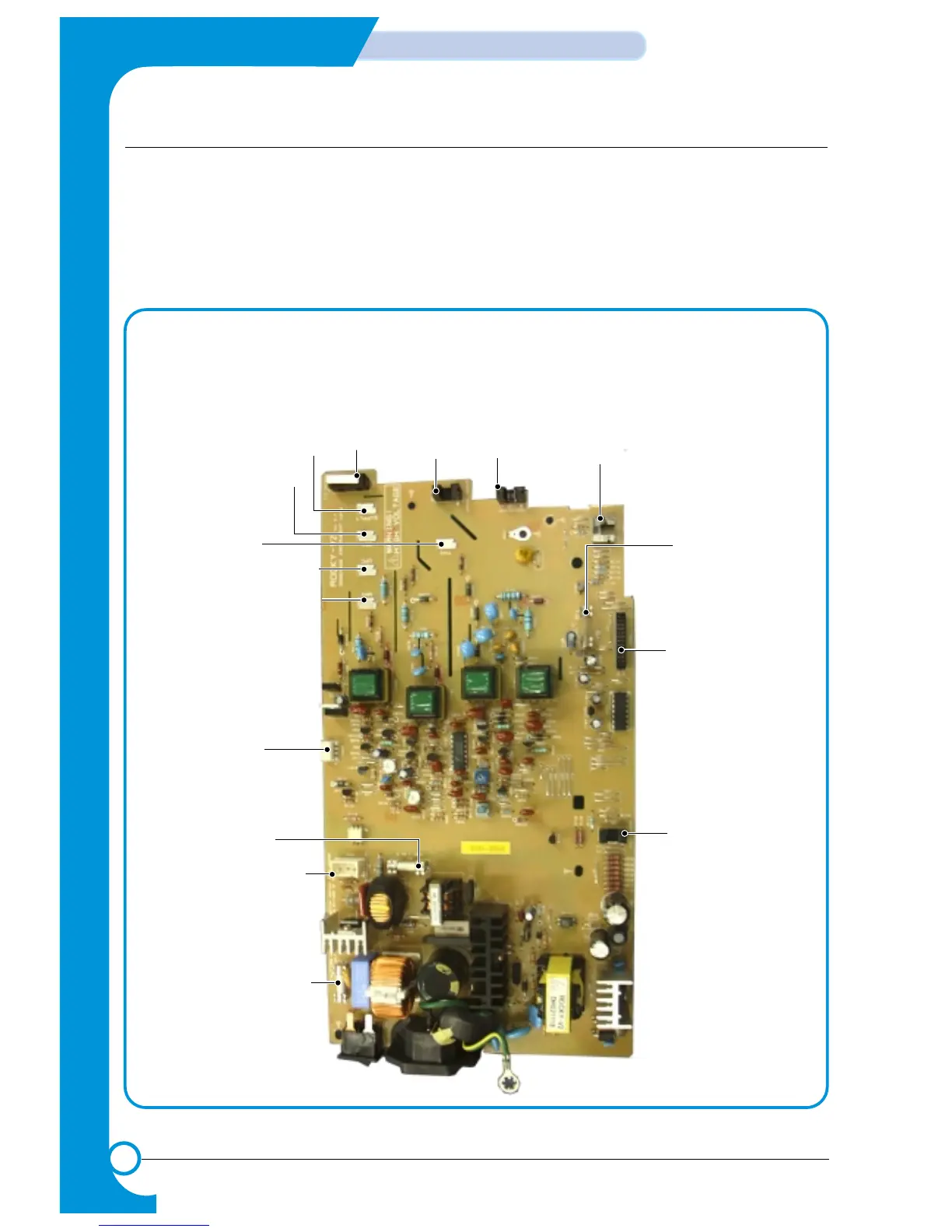

4.4 SMPS & HVPS
The SMPS supplies DC power to the system. The supply receives 110V/220V input, and outputs
5V, 12V, and 24V to supply the power to the main board and ADF board.
The HVPS creates the high voltage for THV/MHV/Supply/Dev and supplies it to the developer to be used in
optimizing the image display. The HVPS uses the 24V as an input and outputs the high voltage for
THV/MHV/BIAS, toner, OPC cartridge, and transfer roller.
MAIN PBA CON.
CN3
(FAN CON.)
CN1
(H/L CON.)
F101
250V L2A
EXIT SENSOR
MHV
OPC
DEV
SUPPLY
THV
COVER OPEN SWITCH
MANUAL SENSOR FEED SENSOR
PAPER-EMPTY SENSOR
F1
110V : 125V/8A
220V : 250V T 5A H
F2
110V : 125V/3A
220V : 250V 2A H
