Xerox WorkCentre PE16 Service Manual

5-3
Disassembly and Reassembly
Service Manual
WorkCentre PE16 July 2003
5.3 Side Cover (LH, RH)
1. Before you remove the Side Cover (LH, RH), you
should remove:
- Rear Cover (see page 5-2)

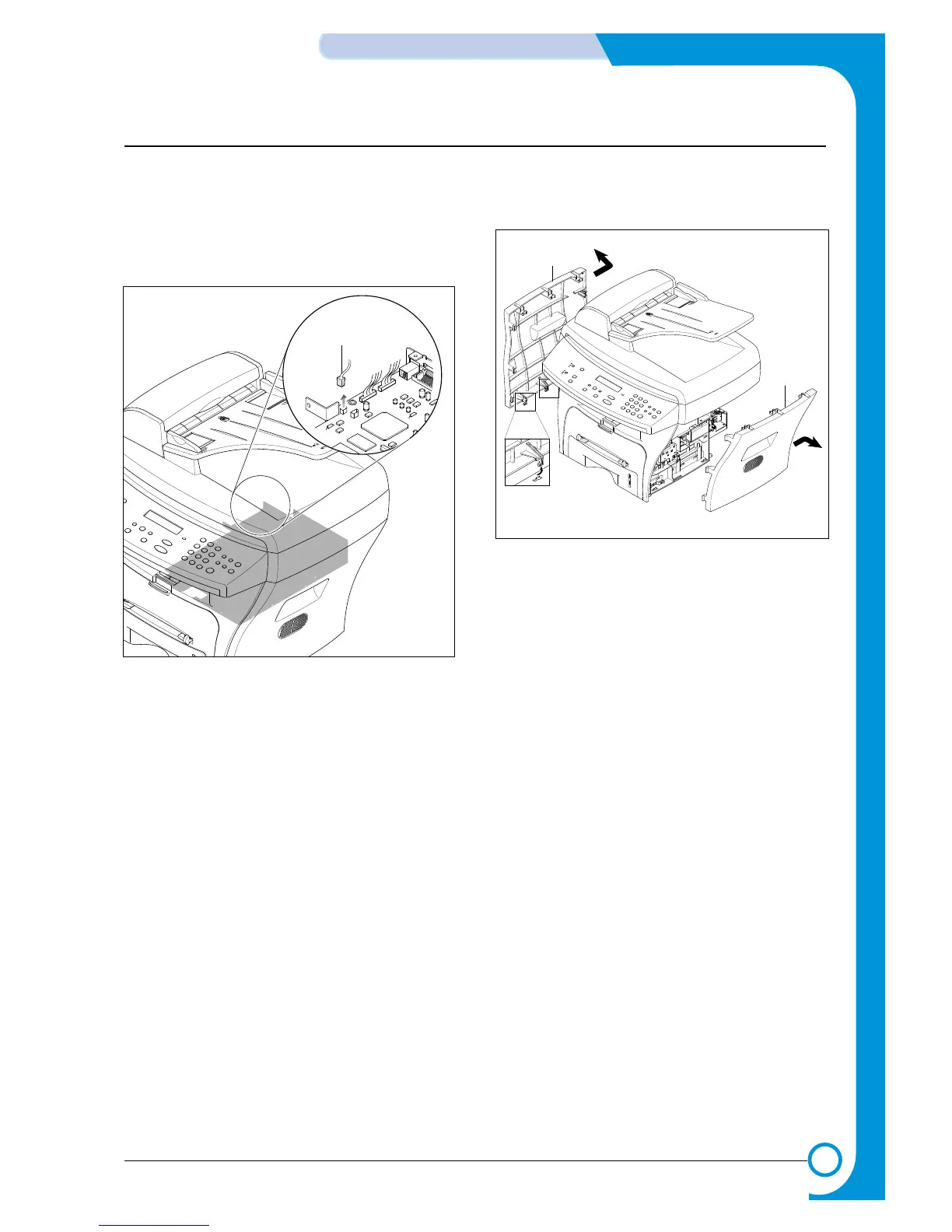

2. Unplug the Speaker Harness, as shown below.
3. Pull down and back on the LH and RH Side Covers
and lift them out in the direction of the arrows.
Side Cover(RH)
Side Cover(LH)
Speaker
Harness
