5 Appendix A: Serial Pin Assignments
5.1 Serial Pin Assignments for Enclosed Ethernet Radios

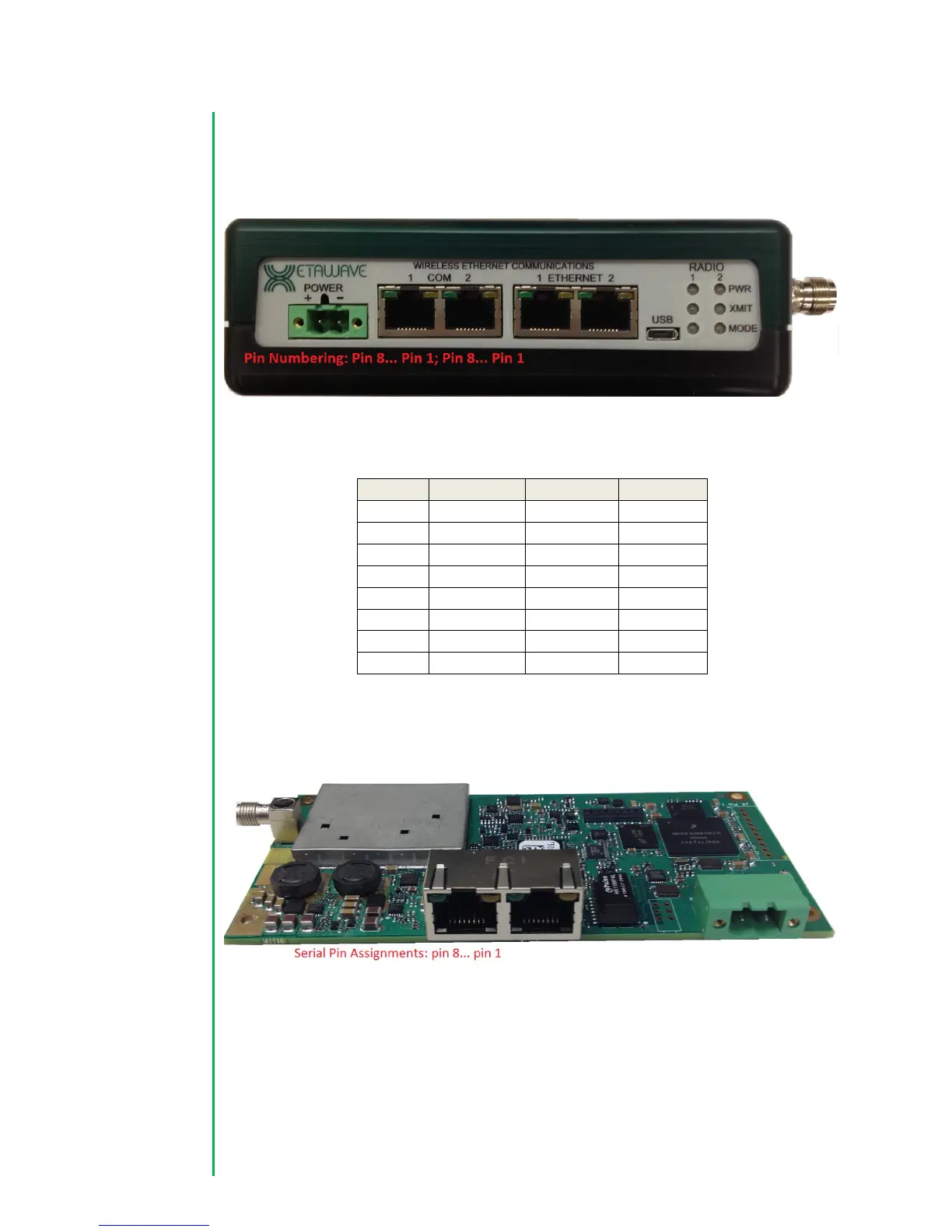

The following diagram shows the Serial pin assignment enclosed Ethernet radios:
The Xeta9E serial ports have hardware to support RS 232, 422 and 485. The following
table shows the pin definitions for RS 232, 422 and 485:
Pin
RS 232
RS 422
RS 485
1
DSR
2
DCD
3
DTR
4
GND
GND
GND
5
TXD
RX+
B+
6
RXD
TX+
B+
7
CTS
TX-
B-
8
RTS
RX-
B-
5.2 Serial Pin Assignments for Xeta9x-E, Emancipator+
The pin definitions above are the same for Xeta9x-E with the exception that the Xeta9x-
E has 1 serial port.
