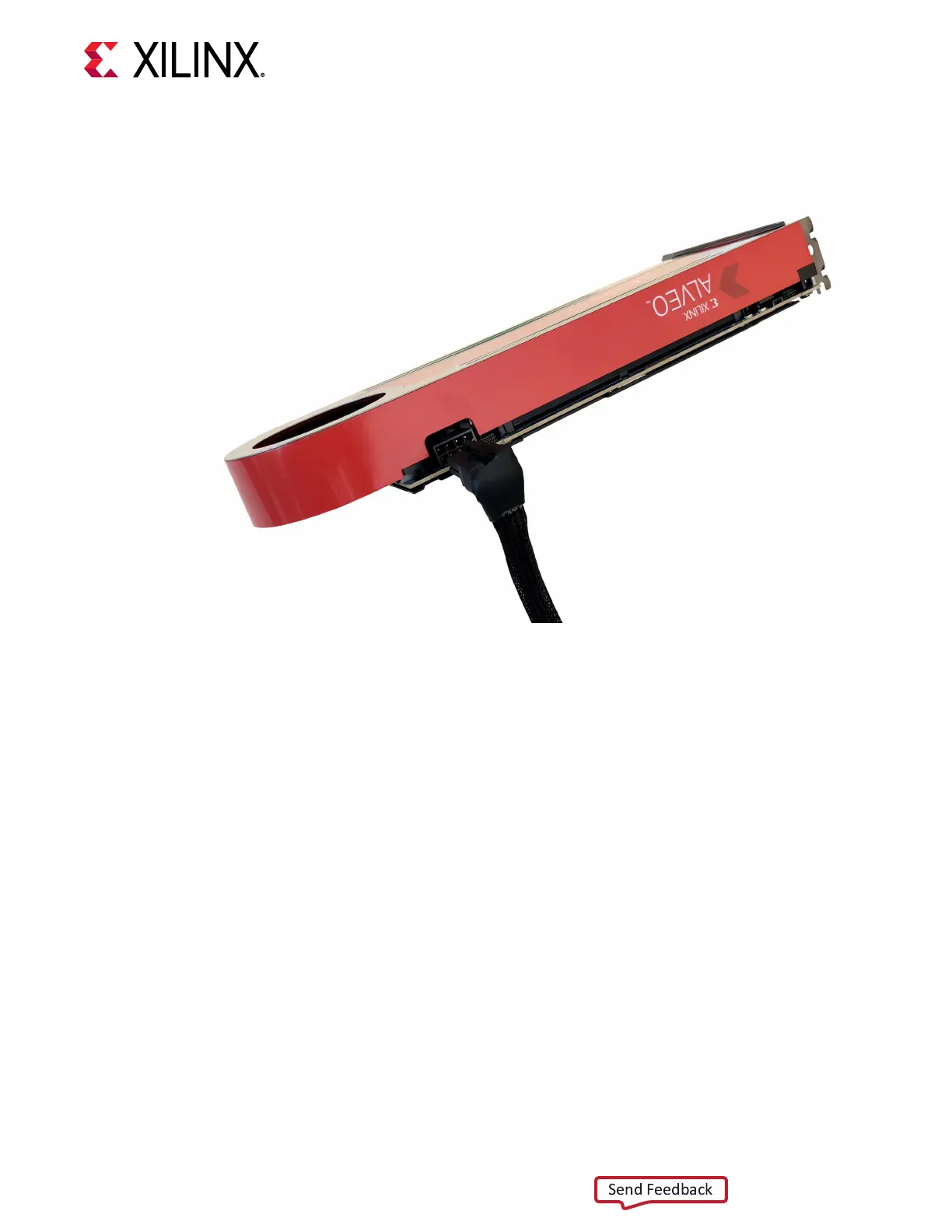

Figure 4: Connecting the Power Cable to Actively Cooled Cards
For passively cooled cards, connect the power cable to the AUX power connector at the side
of the card as shown in the following gure.
Chapter 3: Card Installation Procedures
UG1301 (v1.5) June 3, 2020 www.xilinx.com
Getting Started with Alveo Accelerator Cards 16
